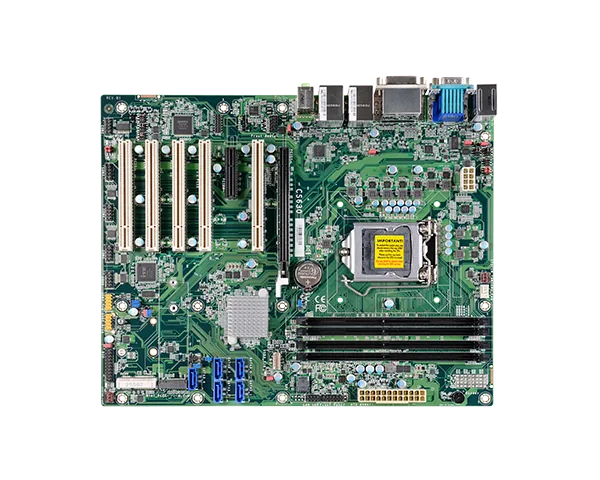

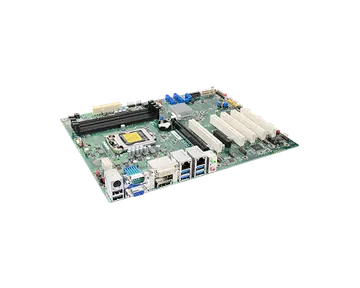

CS630-Q370
ATX, 9th/8th Gen Intel® Core™, 4 DDR4, 1 PCIe x16, 1 PCIe x4, 5 PCI, 1 Mini PCIe, 1 VGA, 1 DVI-I, 1 DP++
- 9th/8th Gen Intel® Core™ with Intel® Q370
- 4 DDR4 DIMM up to 128GB
- Three independent displays: VGA, DVI-D, DP++
- Multiple expansion: 1 PCIe x16 (Gen 3), 1 PCIe x4 (Gen 3), 5 PCI, 1 x mPCIe, 1 M.2 M key
- Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 2 USB 3.1 Gen2, 6 USB 2.0
- 10-Year CPU Life Cycle Support Until Q2' 28 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Windows 10
#IoT
#Windows 11
#Intel
#4K2K Display
#PCIe x16
#Windows
#Linux
#DVI-I
#DVI-D
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#Legacy ISA/PCI Expansion Port
#UKCA Certification
Főbb jellemzőkKey features
- 9th/8th Gen Intel® Core™ with Intel® Q370
- 4 DDR4 DIMM up to 128GB
- Three independent displays: VGA, DVI-D, DP++
- Multiple expansion: 1 PCIe x16 (Gen 3), 1 PCIe x4 (Gen 3), 5 PCI, 1 x mPCIe, 1 M.2 M key
- Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 2 USB 3.1 Gen2, 6 USB 2.0
- 10-Year CPU Life Cycle Support Until Q2' 28 (Based on Intel IOTG Roadmap)
System
- Processor
- 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors, TDP support up to 95W: Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W 9th Generation Intel® Core™ LGA 1151 Socket Processors, TDP support up to 95W: Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
- Chipset
- Intel® Q370 Chipset
- Memory
- Four 288-pin DIMM up to 128GB Dual Channel DDR4 2400/2666MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz DVI-D: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 24Hz
- Triple Displays
- VGA + DVI-I (DVI-D signal) + DP++
Expansion
- Interface
- 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 3) 5 x PCI (use IT8892+IT8209) 1 x mPCIe (support mSATA) 1 x M.2 2260/2280 M key (PCIe Gen3 x 4 NVMe/SATA) (SATA function share SATA#3 port)
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM Lan Phy with iAMT (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

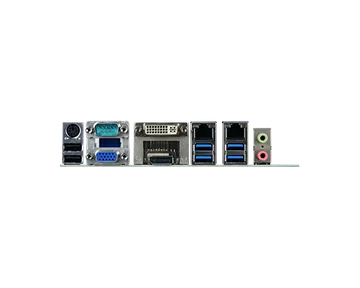

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 RS-232/422/485 (RS-232 w/power) (DB-9)
- USB
- 4 x USB 3.1 (Gen1) 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++
- Audio
- 1 x Line-out, 1 x Mic-in, 1 x Line-in (available upon request)
Internal I/O
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch)
- USB
- 2 x USB 3.1 Gen2 (2.00mm pitch) 4 x USB 2.0 (2.54mm pitch)
- Audio
- 1 x S/PDIF 1 x Front Audio Header
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) 1 x SATA 3.0 (up to 6Gb/s)(share M.2 M-key SATA) RAID 0/1/5/10
- DIO
- 1 x 16-bit DIO
- LPC
- 1 x LPC (supports LPC EXT-RS232/RS485 module)
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i7-8700K: 3.3V @ 0.19A (0.627Watt); 5V @ 0.5A (2.5Watt); 12V @ 0.37A (4.44Watt) Max.: i7-8700K:3.3V @ 0.24A (0.792Watt); 5V @ 1.03A (5.15Watt); 12V @ 13.02A (156.24Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 GAC
- Linux
- Linux
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 534,806 hrs @ 25°C; 301,144 hrs @ 45°C; 187,432 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 31.47mm Bottom Side: 4.4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, KC, UKCA
Packing List
- Packing List
- 1 CS630-Q370 motherboard 1 COM port cables (W/Bracket, Length: 300mm, 2 x COM ports): A81-015026-023G 1 Serial ATA data cable (Length: 500mm): 332-553001-005G 1 I/O shield: A49-KD6000-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| CS630-Q370CRM | 770-CS6305-100G | 4 DDR4 DIMM, 2 LAN, 6 COM, 4 USB 3.1 Gen1, 2 USB 3.1 Gen2, 6 USB 2.0, PCI BRIDGE T8892/8209, M.2 M-key(PCIe x4, SATA), 16-bit DIO, Power 24-pin ATX, -5 to 65°C |
| CS630-Q370CRM | 770-CS6305-300G | 4 DDR4 DIMM, 2 LAN, 6 COM, 4 USB 3.1 Gen1, 2 USB 3.1 Gen2, 6 USB 2.0, PCI BRIDGE T8892/8209, M.2 M-key(PCIe x4, SATA), 16-bit DIO, TPM 2.0, Power 24-pin ATX, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350mm |
| USB 3.2 Gen2 port cable | A81-001075-017G | Length: 300mm |
| D-SUB cable | A81-015026-023G | W/Bracket, Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G A81-002128-017G | W/Lock, Length: 500mm W/Lock, Length: 500mm, 90D |
| Thermal solution | A71-101107-000G A71-101158-000G A71-101143-000G | For 35W, Height: 37.3mm For 65W, Height: 74.47mm For 95W, Height: 76.6mm |
| LPC EXT-RS232 module | 770-EXTRS1-000G | 4 x RS232 ports |
| LPC EXT-RS485 module | 770-EXTRS1-100G | 4 x RS485 ports |
