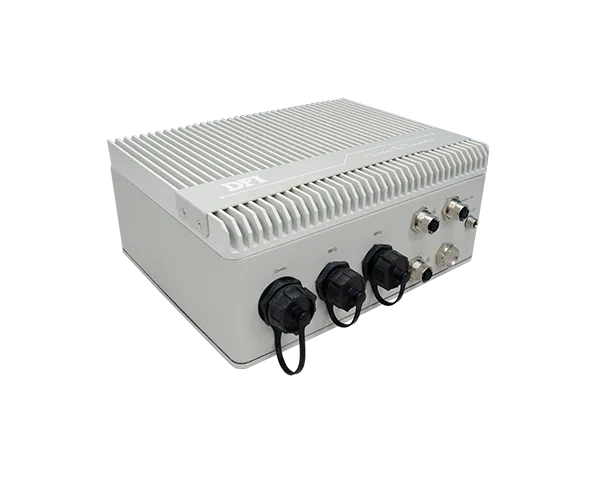

ECX700-ADP

Fanless Embedded System, 12th Gen Intel® Core™, IP67/ IP69K, support smart vent, Wi-Fi / LTE, MIL-STD-810G 514.6C-2, -20°C~70°C wide temp.

  • Waterproof and dustproof design certified to IP67 and IP69K
  • Ruggedized design with vibration/shock resistance and wide operating temperature -20°C to 70°C
  • 12th Gen. Intel® Processor i5-1245UE/ i7-1265UE
  • Memory support DDR4 8GB memory onboard and one DDR4 SODIMM (up to 32GB)
  • Rich waterproof I/O including 2x GbE, 4x USB3.2, 1x HDMI, 6x Antenna, 1x Combo port(2 COM & 2 CANBUS) and 1x IP67 Vent
  • Multiple expansion slots for WiFi/BT, 4G/LTE/5G cellular, NVMe SSD and function modules
  • Wide voltage: 9V~36V DC-IN
  • Typically supports 10-Year CPU Life Cycle Until Q1' 32 (Based on Intel IOTG Roadmap)
KaphatóLaunched ECX700-ADP Embedded Solution Powered by: ECX700-ADP Embedded Solution Powered by: ADP253ADP2534" SBC, 12th Gen Intel® Core™ Processors, On-board memory, 1 DDR4 SO-DIMM, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 HDMI, 1 VGA/DP, 2 Type-C DP Alt. Mode, 1 Intel 2.5GbE, 2 Intel GbE, 6 COM, 4 USB 3.2, 2 USB 2.0, 1 SATA 3.0
Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
Fanless Design
Display
10 Years CPU Life Cycle Support
Rugged Design
IP67
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
#12th Gen Intel® Core™ Processor #Windows 10 #9~36V DC-in #IP69K #M.2 #IP67 #IoT #Windows 11 #Intel #5G #CAN-Bus #Fanless Design #Windows #Linux #HDMI #RoHS Certification #CE Certification #FCC Certification #UKCA Certification

Főbb jellemzőkKey features

  • Waterproof and dustproof design certified to IP67 and IP69K
  • Ruggedized design with vibration/shock resistance and wide operating temperature -20°C to 70°C
  • 12th Gen. Intel® Processor i5-1245UE/ i7-1265UE
  • Memory support DDR4 8GB memory onboard and one DDR4 SODIMM (up to 32GB)
  • Rich waterproof I/O including 2x GbE, 4x USB3.2, 1x HDMI, 6x Antenna, 1x Combo port(2 COM & 2 CANBUS) and 1x IP67 Vent
  • Multiple expansion slots for WiFi/BT, 4G/LTE/5G cellular, NVMe SSD and function modules
  • Wide voltage: 9V~36V DC-IN
  • Typically supports 10-Year CPU Life Cycle Until Q1' 32 (Based on Intel IOTG Roadmap)
