ECX700-ADP
Fanless Embedded System, 12th Gen Intel® Core™, IP67/ IP69K, support smart vent, Wi-Fi / LTE, MIL-STD-810G 514.6C-2, -20°C~70°C wide temp.
ECX700-AL

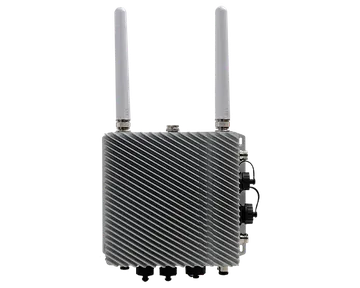

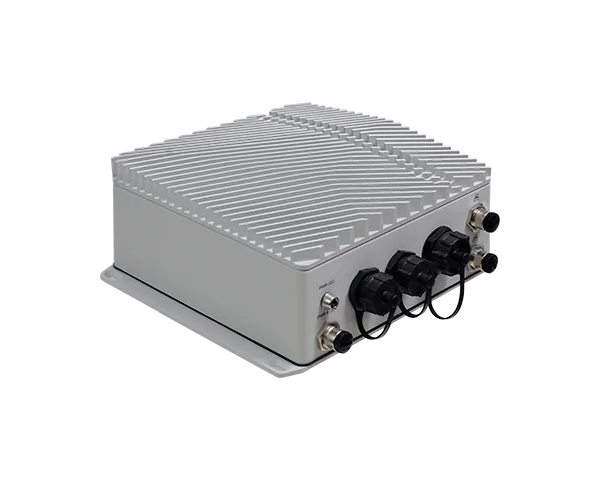

DFI's ECX700-AL is a fanless embedded system with IP66 support, smart vent, Wi-Fi / LTE and is powered by Intel® Atom Processors. It brings flexible perfect for Outdoor IoT, traffic management, environmental energy facilities, weather stations, extreme climates at high altitudes, and more. DFI ECX700-AL support Outdoor IoT Gateway, Ruggedized, Fanless Embedded System, IP67/ IP69K, Intel® Atom® Processor E3900 Series.
- Waterproof and dustproof design certified to IP67 and IP69K
- Ruggedized design with vibration/shock resistance and wide operating temperature -40°C to 70°C
- Intel® Atom® Processor E3930/E3940/E3950 Apollo Lake CPU
- DDR3L memory onboard + 1 SODIMM up to 8GB
- Rich securable and waterproof I/Os including 2x GbE, 2x USB 3.0, 1x HDMI, 4x antenna, 1x Combo port, and 1x IP67-rated vent
- Up to 3x M.2 slots for for Wifi/BT, 4G /5G cellular, NVMe SSD and function modules
- Wide voltage: 9V~36V DC-IN
- Long-term Promise of 15-Year CPU Life Cycle Until Q4' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#IP69K
#IP67
#Intel Atom® Processor E3900 Series
#IoT
#Intel
#Compact PC
#5G
#CAN-Bus
#Mini PCIe
#Windows
#Linux
#HDMI
#VGA
#DDR3L
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Waterproof and dustproof design certified to IP67 and IP69K
- Ruggedized design with vibration/shock resistance and wide operating temperature -40°C to 70°C
- Intel® Atom® Processor E3930/E3940/E3950 Apollo Lake CPU
- DDR3L memory onboard + 1 SODIMM up to 8GB
- Rich securable and waterproof I/Os including 2x GbE, 2x USB 3.0, 1x HDMI, 4x antenna, 1x Combo port, and 1x IP67-rated vent
- Up to 3x M.2 slots for for Wifi/BT, 4G /5G cellular, NVMe SSD and function modules
- Wide voltage: 9V~36V DC-IN
- Long-term Promise of 15-Year CPU Life Cycle Until Q4' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Atom® Processor E3900 Series, BGA 1296 Intel® Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel® Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
- Memory
- 4GB memory onboard (2GB/8GB by project support) DDR3L memory onboard + 1 SODIMM up to 8GB
- BIOS
- AMI SPI 128Mbit (supports UEFI/Legacy mode and Security Boot (optional)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4, MVC, VP9, WMV9, JPEG/MJPEG HW Encode: H.264, MPEG4, VP8, H.265, MVC
- Display
- 1 x HDMI or VGA VGA: resolution up to 1920 x 1200@60Hz HDMI: resolution up to 3840x2160@30Hz
Storage
- eMMC
- 32GB/64GB Available(8GB/16GB by project support)
Expansion
- Interface
- 1 x Full-size Mini PCIe for 4G LTE module 1 x Full-size Mini PCIe for Canbus 1 x M.2 2230 (USB2.0/PCIe) for WiFi module
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power Status LED

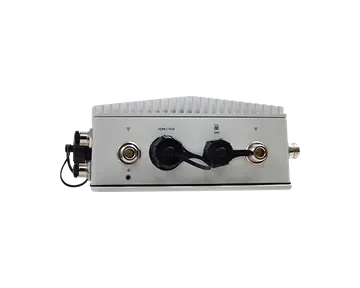

Front I/O
- Display
- 1 x HDMI or 1 x VGA (optional)
- Antenna
- 2 x Antenna (WiFi)
- SIM
- 1 x SIM card slot

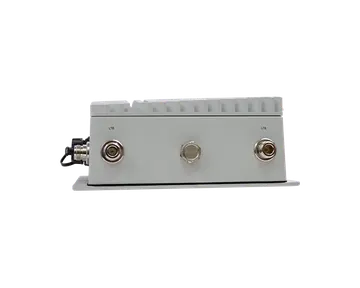

Top I/O
- Vent
- 1 x Vent
- Antenna Hole
- 2 x Antenna (LTE)

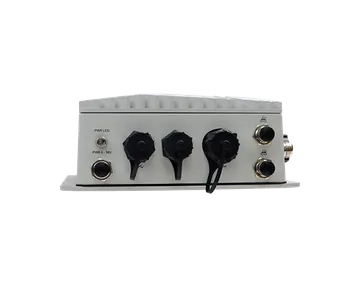

Bottom I/O
- Ethernet
- 2 x GbE
- USB
- 2 x USB 3.0
- Combo Port
- 2 x RS232 and 2 x Can bus protocol
- Power
- 1 x 9~36V DC-IN
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- DC-in 9~36V
- Connector
- M12 D-code
OS Support
- OS Support
- Windows 10 IoT Enterprise 64-bit Linux
Environment
- Operating Temperature
- -40 to 70°C (E3950, E3940, E3930 only)
- Storage Temperature
- -40 to 85°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Mounting
- Wall Mount
- Dimensions (W x H x D)
- 217 x 188 x 87 mm ( with wall-mount bracket)
- Weight
- 4.5 kg
Standards and Certifications
- Shock
- Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis / IEC60068-2-27
- Vibration
- Operation Vibration test: MIL-STD-810G
- Certifications
- CE, FCC class A, ROHS
- Construction
- IP67/ IP69K enclosure
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ECX700-AL | 750-ECX700-100G | x7-E3950, 4GB Memory down, 64GB eMMC, 1 USB 3.0, 1 USB 2.0, 2 LAN, 1 HDMI, 2 COM + 2 CAN bus, WIFI+BT, LTE, 1 IP67 M12 4pin DC cable, 1 IP67 COM+CAN cable, 2 M12 Lan cable |
| ECX700-AL | 750-ECX700-200G | x5-E3930, 4GB Memory down, 32GB eMMC, 2 USB 3.0, 2 LAN, 1 HDMI, 2 COM + 2 CAN bus, 1 IP67 M12 4pin DC cable, 1 IP67 COM+CAN cable, 2 M12 Lan cable |
| ECX700-AL | 750-ECX700-300G | x5-E3930, 4GB Memory down, 32GB eMMC, 1 USB 3.0, 2 LAN, 1 HDMI, WIFI+BT, LTE, 1 IP67 M12 4pin DC cable, 2 M12 Lan cable |
| ECX700-AL | 750-ECX700-400G | x5-E3940, 4GB Memory down, 64GB eMMC, 2 USB 3.0, 2 LAN, 1 HDMI, WIFI+BT, LTE, 1 IP67 M12 4pin DC cable, 2 M12 Lan cable |
| ECX700-AL | 750-ECX700-500G | x7-E3950, 4GB Memory down, 64GB eMMC, 1 USB 3.0, 1 USB 2.0, 1 HDMI, 2 COM + 2 CAN bus, LTE, 1 IP67 M12 4pin DC cable, 1 IP67 COM+CAN cable |
| ECX700-AL | 750-ECX700-600G | x7-E3950, 4GB Memory down, 64GB eMMC, 1 USB 3.0, 1 USB 2.0, 1 HDMI, 2 COM + 2 CAN bus, WIFI+BT, 1 IP67 M12 4pin DC cable, 1 IP67 COM+CAN cable |
| Item Name | Part Number | Description |
|---|---|---|
| External USB cable | A81-001129-068G | IP67 USB Plug to USB Plug, 300mm |
| External HDMI cable | A81-026004-068G | IP67 HDMI Plug to HDMI Plug, 300mm |
| LTE IPEX cable | A81-099125-027G | ANTENNA CABLE, IPEX MHF4L to 前鎖式 N JACK IP67/8, L=220mm, Ø1.13, FOR ECX700-ASL, BTC061-20-MHF470B220(ARISTOTLE)RoHS. *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure. |
| WiFi IPEX cable | A81-099124-027G | ANTENNA CABLE, IPEX MHF1 to 前鎖式 N JACK IP67/8, L=220mm, Ø1.13, FOR ECX700-ASL, BTC061-20-70B-220(ARISTOTLE)RoHS. *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure. |
| WiFi / LTE Rod type Antenna | 612-139917-000G | Omni-S Thimble IP68 LTE ANTENNA, 1710-7125MHz, REVISE N TYPE, L= 55mm,1399.17.0224 (HUBER+SUHNER) RoHS *Note: Designed for high vibration environments such as mining and construction vehicles. |
| WiFi Cabled type Antenna | 612-RFA25T-100G | ANTENNA, 2400-2500MHz, 5150-5925MHz, REVISE N TYPE, L= 53mm, RFA-25-T288-41-1M-N (ARISTOTLE) RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure. |
| LTE Cabled type Antenna | 612-RFALTE-200G | ANTENNA, 698-960MHz, 1710-2170MHz, 2300-2700MHz, REVISE N TYPE, L= 53mm, RFA-LTE-T288-41-1M-N (ARISTOTLE) RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure. |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
