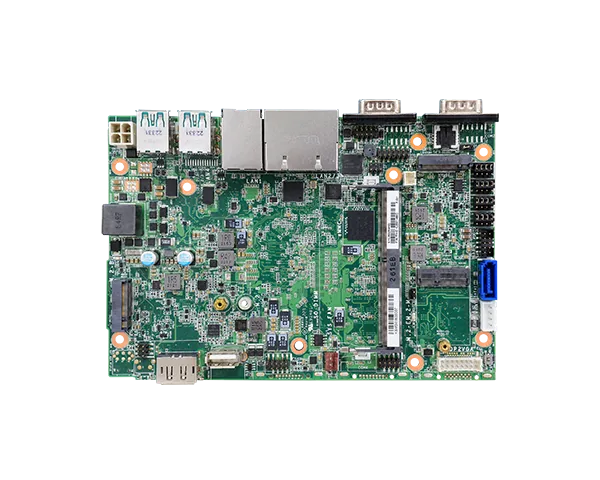

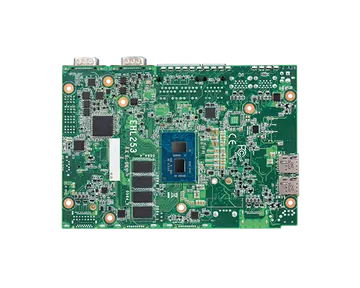

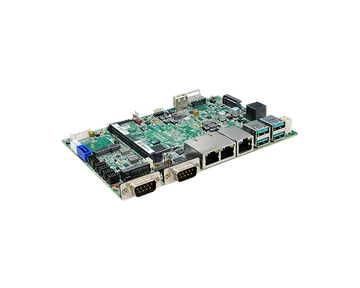

EHL253
4" SBC, Intel® Atom® Processor X Series, On board DDR4+1 DDR4 SODIMM, 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key, 1 VGA + 1 DP++, 2/3 GbE, 1 2.5 GbE, 2/4 USB 3.1, 2 USB 2.0, 1 USB 2.0 (Vertical), 2 COM + 2 COM (Internal), 1 SATA 3.0
- Intel® Atom® Processor X Series
- On board DDR4 + 1 DDR4 3200 SODIMM
- Dual Independent Displays: 1 VGA + 1 DP++
- Supports 4K/2K resolution
- Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
- Rich I/O: 2 or 3 GbE, 1 2.5 GbE, 2 or 4 USB 3.1, 2 USB 2.0, 1 USB 2.0 (Vertical), 2 COM + 2 COM (Internal), 1 SATA 3.0
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#M.2
#Intel
#Fanless Design
#4K2K Display
#1G Ethernet
#VGA
#DP
#DDR4
#CE Certification
#FCC Certification
#Intel® Atom® Processors Elkhart Lake X Series
#2.5G Ethernet
Főbb jellemzőkKey features
- Intel® Atom® Processor X Series
- On board DDR4 + 1 DDR4 3200 SODIMM
- Dual Independent Displays: 1 VGA + 1 DP++
- Supports 4K/2K resolution
- Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
- Rich I/O: 2 or 3 GbE, 1 2.5 GbE, 2 or 4 USB 3.1, 2 USB 2.0, 1 USB 2.0 (Vertical), 2 COM + 2 COM (Internal), 1 SATA 3.0
System
- Processor
- Intel Atom Elkhart Lake · Industrial Intel® Atom® x6425RE 4 cores, 1.9 GHz, TDP 12W · Embedded Intel® Atom® x6211E 2 cores, 1.3 to 3.0 GHz, TDP 6.5W Intel® Atom® x6413E 4 cores, 1.5 to 3.0 GHz, TDP 9W Intel® Atom® x6425E 4 cores, 2.0 to 3.0 GHz, TDP 12W · PC Client Intel® Celeron® J6412 4 cores, 2.0 to 2.6 GHz, TDP 10W Intel® Celeron® J6413 4 cores, 1.8 to 3.0 GHz, TDP 10W
- Memory
- 4GB/8GB DDR4 Memory onboard One 260 pin DDR4 SODIMM up to 3200MHz Total Memory up to 32GB (in-band ECC support in embedded/industrial SKU)
- BIOS
- AMI SPI 256Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® UHD Graphics for 10th Gen Intel® Processors
- Feature
- OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9 HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9
- Display
- 1 x VGA (Support via VGA cable) 1 x DP++
- Dual Displays
- 1 VGA + 1 DP++
Storage
- Internal
- SATA III
- eMMC
- 16GB/32GB (Available upon request)
Expansion
- Interface
- 1 x M.2 2280 (SATA) 1 x M.2 2230 (USB/PCIe) 1 x M.2 3042/3052 (USB 3.0/PCIe) with dual SIM
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 2 or 3 x Intel® Ethernet Controller I210/I211 GbE LAN 1 x Intel® Ethernet 2.5GbE LAN

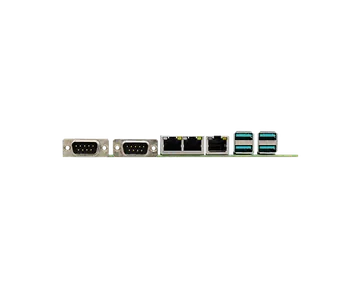

Front I/O
- Ethernet
- 2 or 3 x GbE (RJ-45) (configuration options) 1 x 2.5GbE TSN RJ45
- Serial
- 2 x RS232/422/485
- USB
- 2 or 4 x USB 3.1 (configuration options)
- DIO
- 8-bit DIO (jumper switch to COM)

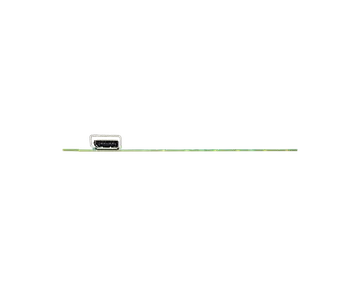

Rear I/O
- Display
- 1 x DP++
Internal I/O
- Serial
- 2 x RS232
- USB
- 2 x USB 2.0 (Pin header) 1 x USB 2.0 (Vertical)
- Display
- 1 x VGA
- Audio
- 1 x Audio (Line Out and Mic in)
- SATA
- 1 x SATA 3.0 1 x 5V SATA Power (support SATA HDD LED via front panel)
- SMBus
- 1 x SMBus
- Front Panel
- 1 x front panel (power button/reset button, power LED, HDD act LED)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0 (Available Upon Request)
Power
- Type
- Wide Range 9~36VDC
- Connector
- DC Jack (or vertical type 4pin connector)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise LTSC 2019 RS5
- Linux
- Linux
Environment
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- Operating Temperature
- 0 to 80°C (PC Client SKU) -40 to 80°C (Embedded SKU)
- Storage Temperature
- -40 to 85°C
Mechanism
- Dimensions
- 4" SBC Form Factor 165mm (6.5") x 115mm (4.53")
Standards and Certifications
- Certifications
- CE, FCC Class B (TBD in later stage)
Packing List
- Packing List
- • 1 EHL253 board • 1 COM port cable, A81-015019-004G • 1 SATA data with 4pin power cable, A81-002118-054G • 1 Heat sink • 1 VGA cable, A81-012004-001G • 1 DC cable, A81-004241-054G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EHL253 | 770-EHL2531-000G | Intel® Celeron® J6412, 1 DDR4 SODIMM, DP++ / *VGA, 4 USB 3.1, 2 USB 2.0, 1 2.5GbE, 2 GbE, 2 COM, 0 to 80°C |
| EHL253 | 770-EHL2531-400G | Intel® Atom® x6425RE, 1 DDR4 SODIMM, DP++ / *VGA, 2 USB 3.1, 2 USB 2.0, 1 2.5GbE, 3 GbE, 2 COM, In-Band ECC Support (Default disabled), -40 to 80°C, Support TCC |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106013-000G 671-106012-000G | 60W L=1000mm 60W L=1500mm |
| USB 2.0 cable | A81-001170-016G | |
| Front panel cable | A81-006102-016G | |
| Audio Cable | A81-022019-016G | |
| Heat spreader | TBD |
