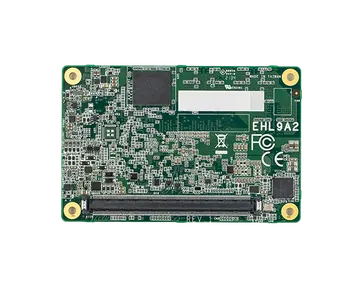

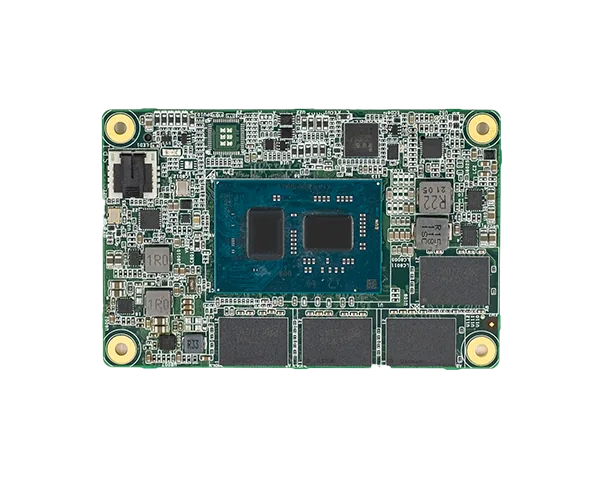

EHL9A2
DFI EHL9A2 supports COM Express Type 10, Intel® Atom x6000E, LPDDR4X, 4 PCIe x1, 1 SDIO, 1 LPC, 1 I2C, 1 SMBus, 1 SPI, 2 UART (TX/RX).
- Intel® Atom® Processor Elkhart Lake Series
- Dual Channel LPDDR4X 3200MHz/4267MHz up to 16GB
- 1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Slim Bootloader
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#DDR4
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
#Intel® Atom® Processors Elkhart Lake X Series
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® Processor Elkhart Lake Series
- Dual Channel LPDDR4X 3200MHz/4267MHz up to 16GB
- 1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® x6000 series and Intel® Celeron® and Pentium® N & J series processors
- Memory
- LPDDR4X up to 16GB Dual Channel LPDDR4X 3733MHz/4267MHz which depends on processor *Note1: 8GB/16GB supported by project basis. *Note2: In-band ECC (IBECC) with normal memory chip support on selected ATOM x6000 series SKUs. IBECC can set enabled or disabled in BIOS setup menu.
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9, MVC
- Display
- 1 x DDI 1 x LVDS/eDP LVDS: single channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2160 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2160 @ 60Hz, 3840x2160 @60Hz
- Dual Displays
- DDI + LVDS/eDP
Expansion
- Interface
- 4 x PCIe x1 (Gen 3) 1 x SD/SDIO (available upon request) 1 x I2C 1 x SMBus 1 x LPC 1 x Speaker 1 x SD 3.0 1 x SPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I225-IT / I225-LM (10/100/1000Mbps/2.5Gbps)
I/O
- USB
- 2 x USB 3.1 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- eMMC
- 1 x 8GB/16GB/32GB/64GB/128GB eMMC 5.1 (available upon request)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM or fTPM (Optional)
Power
- Type
- 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- OS Support
- Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: -5 to 65°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.3") x 55mm (2.16")
- Compliance
- PICMG COM Express® R3.0, Type 10
Standards and Certifications
- Certifications
- CE, FCC, UKCA, RoHS
Packing List
- Packing List
- · Heat Sink (For Pentium & Celeron) A71-008170-010G · Cooler (For Atom x6000 Series) A71-108143-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EHL9A2-TC16-6425RE | 770-EHL9A22-000G | Intel® Atom® x6425RE, LPDDR4 16GB on board, eMMC 64GB, LVDS, DIO, TPM 2.0, -40 to 85°C |
| EHL9A2-TC16-6414RE | 770-EHL9A22-100G | Intel® Atom® x6414RE, LPDDR4 16GB on board, eMMC 64GB, LVDS, DIO, -40 to 85°C |
| EHL9A2-TC86-6212RE | 770-EHL9A22-200G | Intel® Atom® x6212RE, LPDDR4 8GB on board, eMMC 64GB, LVDS, DIO, -40 to 85°C |
| EHL9A2-BC86-J6426 | 770-EHL9A22-300G | Intel® Atom® J6426, LPDDR4 8GB on board, eMMC 64GB, LVDS, DIO, -5 to 65°C |
| EHL9A2-BC86-N6211 | 770-EHL9A22-400G | Intel® Atom® N6211, LPDDR4 8GB on board, eMMC 64GB, eDP, SDIO, -5 to 65°C |
| EHL9A2-TC86-6425RE | 770-EHL9A22-500G | Intel® Atom® x6425RE, LPDDR4 8GB on board, eMMC 64GB, LVDS, DIO, TPM 2.0, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat Spreader | A71-808341-010G A71-808341-020G | For Atom x6000 Series For Pentium & Celeron |
| COM100-B Carrier Board Kit | 770-COM104-000G | |
| COM335 Carrier Board Kit | 770-CM3351-000G |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
