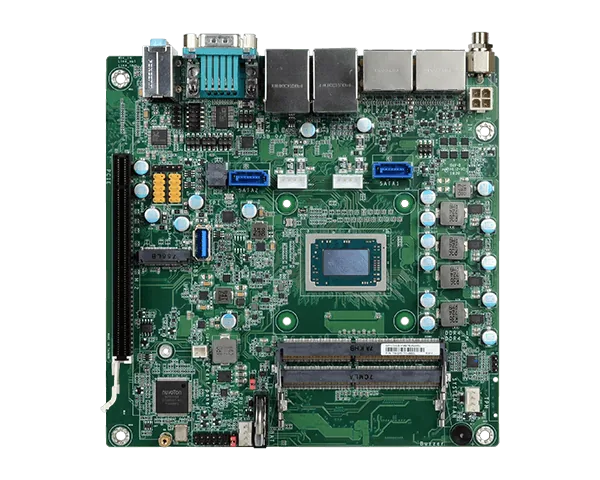

GH171

Mini-ITX, AMD® Ryzen™ V1000/R2000/R1000, 2 DDR4, 1 PCIe x16, 1 M.2 M Key, 4 DP++

  • AMD® Ryzen™ V1000/R2000/R1000 Mini-ITX
  • 2 DDR4 3200MHz SODIMM up to 32GB
  • Four independent displays: DP++ + DP++ + DP++ + DP++
  • Multiple expansion: 1 PCIe x16, 1 M.2 M Key

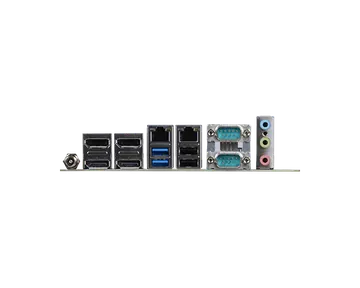

  • Rich I/O: 2 GbE, 6 COM, 3 USB 3.0, 6 USB 2.0
  • The AMD Ryzen R2000 10-Year CPU Life Cycle Support Until Q2' 32 (Based on AMD Roadmap) The AMD Ryzen R1000 10-Year CPU Life Cycle Support Until Q2' 29 (Based on AMD Roadmap) The AMD Ryzen V1000 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)
KaphatóLaunched Megvásárlás (US)Buy online (US) Embedded Solution Powered by GH171 : Embedded Solution Powered by GH171 : DT122-GHDT122-GHDesktop Box PC, AMD® Ryzen™ V1000/R1000 Series, DDR4, 1 PCIe / 1 PCI, 4 DP++ / 3 DP++
COM ESD Protection: Air Gap ±15kv
4K2K Display
PCIe x16
Windows
DDR4
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
#AMD #4K2K Display #PCIe x16 #Windows #Linux #DDR4 #RoHS Certification #CE Certification #FCC Certification #UKCA Certification

Főbb jellemzőkKey features

  • AMD® Ryzen™ V1000/R2000/R1000 Mini-ITX
  • 2 DDR4 3200MHz SODIMM up to 32GB
  • Four independent displays: DP++ + DP++ + DP++ + DP++
  • Multiple expansion: 1 PCIe x16, 1 M.2 M Key
  • Rich I/O: 2 GbE, 6 COM, 3 USB 3.0, 6 USB 2.0
  • The AMD Ryzen R2000 10-Year CPU Life Cycle Support Until Q2' 32 (Based on AMD Roadmap) The AMD Ryzen R1000 10-Year CPU Life Cycle Support Until Q2' 29 (Based on AMD Roadmap) The AMD Ryzen V1000 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
