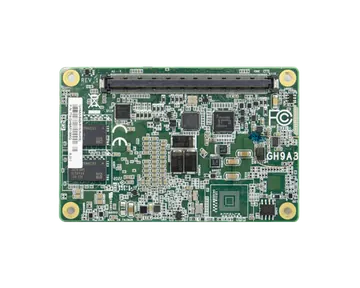

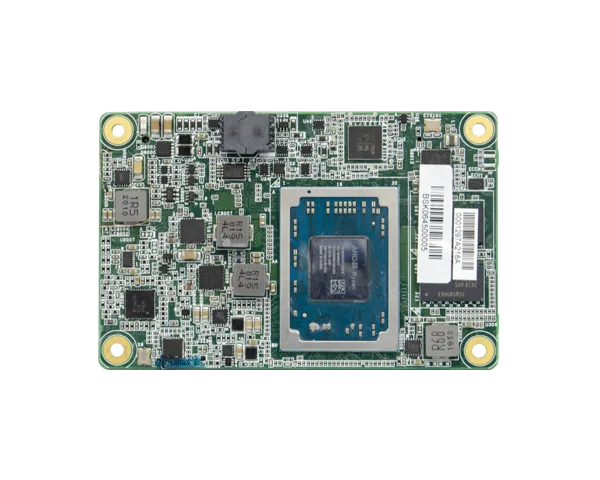

GH9A3
COM Express Mini, AMD® Ryzen™ R1000 Series, LPDDR4, 3 PCIe x1, 2 SATA 3.0, 10 USB, 1 LVDS, 1 DDI
- AMD® Ryzen™ R1000 Series Processor
- Single Channel LPDDR4 2400MHz；Memory Down up to 8GB
- 1 LVDS/eDP, 1 DDI (HDMI/DP)；Supports dual displays: DDI + LVDS/eDP
- Multiple expansions: 3 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
- 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#AMD
#Windows
#Linux
#HDMI
#DP
#DDR4
#RoHS Certification
Főbb jellemzőkKey features
- AMD® Ryzen™ R1000 Series Processor
- Single Channel LPDDR4 2400MHz；Memory Down up to 8GB
- 1 LVDS/eDP, 1 DDI (HDMI/DP)；Supports dual displays: DDI + LVDS/eDP
- Multiple expansions: 3 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
- 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)
System
- Processor
- AMD® Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz (3.5GHz), 12W AMD® Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz (3.3GHz), 12W AMD® Ryzen™ Embedded R1000 series
- Memory
- 4GB/8GB Memory Down Single Channel LPDDR4 2400MHz
- BIOS
- SPI 64Mbit (default supports fTPM2.0)
Graphics
- Controller
- Radeon™ Vega 3 Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DP++) 1 x LVDS/eDP LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz DP++: resolution up to 3840x2160 @ 60Hz eDP: resolution up to 3840x2160 @ 60Hz
- Dual Displays
- DDI + LVDS DDI + eDP
Expansion
- Interface
- 3 x PCIe x1 (Gen 3) 1 x SDIO 1 x LPC 2 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I210 (10/100/1000Mbps)
I/O
- USB
- 2 x USB 3.1 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- GPIO
- 1 x 8-bit GPIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- BIOS default support FTPM, TPM2.0 by request.
Power
- Type
- 12V~20V, 5VSB, VCC_RTC (ATX mode) 12V~20V, VCC_RTC (AT mode)
- Consumption
- Typical : R1606G : 5V @ 2.71A (13.55W) Max : R1606G : 5V @ 5.52A (27.6W)
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 327,852 hrs @25C ; 162,213 hrs @45C ; 89,021 hrs @60C Calculation Model : Telcordia Issue 4 Environment : GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.30") x 55mm (2.16")
- Compliance
- PICMG COM Express® R3.0, Type 10
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| GH9A3-B40-R15 | 770-GH9A31-000G | AMD® Ryzen™ Embedded R1505G, 4G Memory onboard, DIO, 1 LVDS, 1 LAN, 2 USB 3.0, 8 USB 2.0, ATX/AT Power, Thermal: Heat Sink, 0 to 60°C |
| GH9A3-T40-R16 | 770-GH9A31-100G | AMD® Ryzen™ Embedded R1606G, 4G Memory onboard, DIO, 1 LVDS, 1 LAN, 2 USB 3.0, 8 USB 2.0, ATX/AT Power, Thermal: Cooler, -40 to 85°C |
| GH9A3-T80-R16 | 770-GH9A31-200G | AMD® Ryzen™ Embedded R1606G, 8G Memory onboard, SDIO, 1 LVDS, 1 LAN, 2 USB 3.0, 8 USB 2.0, ATX/AT Power, Thermal: Cooler, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM100-B Carrier Board Kit | 770-COM104-000G | |
| COM335 Carrier Board Kit | 770-CM3351-000G |
