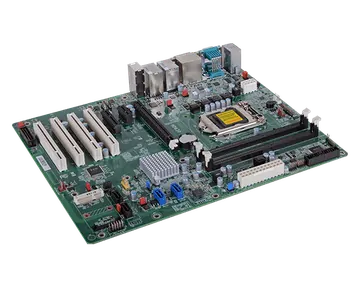

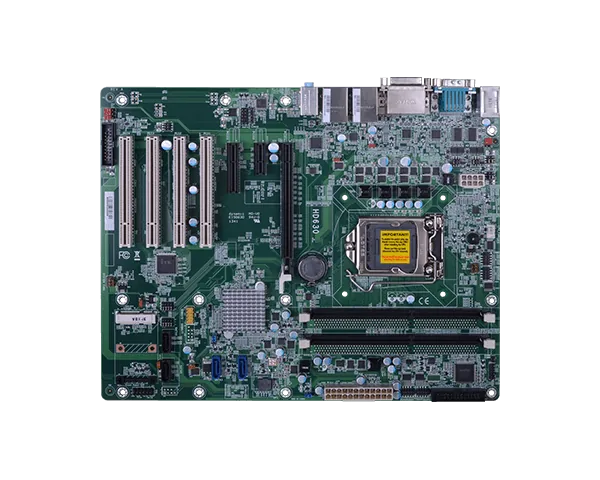

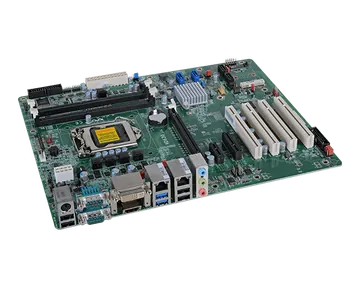

HD630-H81
ATX, 4th Gen Intel® Core™, DDR3, 1 PCIe x16, 4 SATA, 8 USB, 1 HDMI, 1 DVI-I
- 4th Gen Intel® Core™, Intel® H81 Chipset
- Dual channel DDR3 1600MHz DIMM up to 16GB
- 1 HDMI, 1 DVI-I
- Multiple expansion: 1 PCIe x16, 1 PCIe x4, 1 PCIe x1, 4 PCI, 4 SATA
- Rich I/O: 2 Intel GbE, 8 USB, 6 COM
- 7-Year CPU Life Cycle Support Until Q3' 19 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#PCIe x16
#Windows
#HDMI
#DVI-I
#DDR3
#RoHS Certification
Főbb jellemzőkKey features
- 4th Gen Intel® Core™, Intel® H81 Chipset
- Dual channel DDR3 1600MHz DIMM up to 16GB
- 1 HDMI, 1 DVI-I
- Multiple expansion: 1 PCIe x16, 1 PCIe x4, 1 PCIe x1, 4 PCI, 4 SATA
- Rich I/O: 2 Intel GbE, 8 USB, 6 COM
- 7-Year CPU Life Cycle Support Until Q3' 19 (Based on Intel IOTG Roadmap)
System
- Processor
- 4th Generation Intel® Core™ processors, LGA 1150 socket Intel® Core™ i7-4790S Processor, 8M Cache, 4.0 GHz, 65W Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz, 35W Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W
- Chipset
- Intel® H81 Chipset
- Memory
- Two 240-pin DIMM up to 16GB Dual Channel DDR3 1333/1600MHz
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.0, DirectX 11.1
- Display
- 1 x DVI-I 1 x HDMI HDMI: resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz DVI: resolution up to 1920x1200 @ 60Hz
Expansion
- Interface
- 1 x PCIe x16 (Gen 2) 1 x PCIe x4 (Gen 2) 1 x PCIe x1 (Gen 2) 4 x PCI 1 x Mini PCIe
Audio
- Audio Codec
- Realtek ALC886
Ethernet
- Controller
- 1 x Intel® I210 PCIe (10/100/1000Mbps) 1 x Intel® I217LM (10/100/1000Mbps)

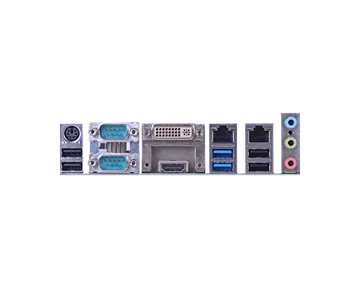

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 2 x USB 3.0 4 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x DVI-I 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in
Internal I/O
- Serial
- 4 x RS-232 (2.0mm pitch)
- USB
- 2 x USB 2.0 or 1 Vertical USB 2.0*
- Audio
- 1 x Audio (Line-out/Mic-in) 1 x S/PDIF
- SATA
- 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA 2.0 (up to 3Gb/s)
- DIO
- 1 x 8-bit DIO
- LPC
- 1 x LPC
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- 49.85W with i7-4770S at 3.10GHz and 2x 2GB DDR3 DIMM
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Windows XP Professional x86 & SP3 (32-bit) (limited function) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Windows 10 IoT Enterprise (32/64-bit)
Environment
- Temperature
- Operating: 0 to 60°C Storage: -20 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 452,333 hrs @ 25°C; 255,169 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- ATX form factor 305mm (12") x 244mm (9.6")
Packing List
- Packing List
- 1 HD630 motherboard 1 Serial ATA data cable: 332-553001-005G 1 I/O shield: A49-HD3300-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | 332-253010-026G | |
| COM port cable | A81-015004-005G | |
| Serial ATA data cable | 332-553001-005G | |
| I/O shield | A49-HD3300-000G |
