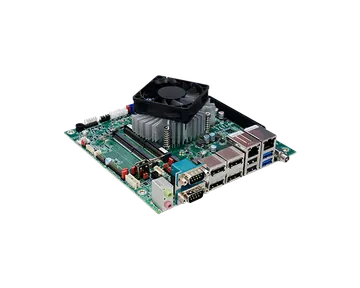

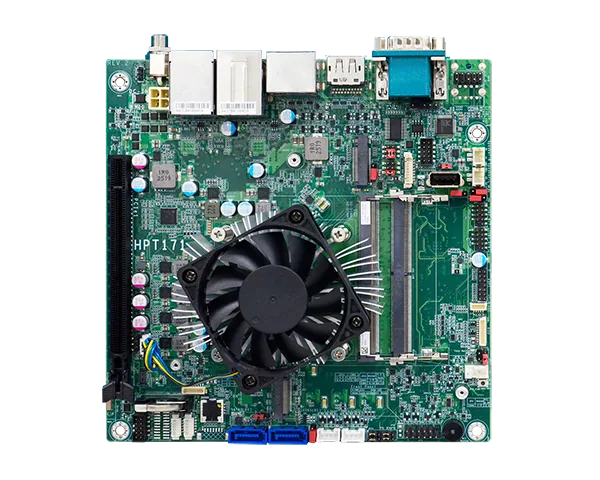

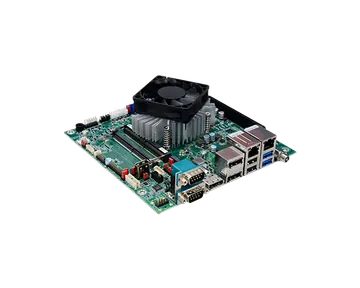

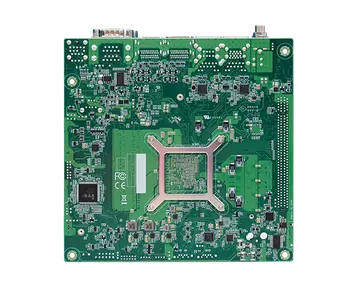

Mini-ITX, AMD® Ryzen™ Embedded 8000 Series Processors, DDR5, 4 DP++ or 3 DP++ + 1 M.2 A display, 1 PCIE x16,1 M.2 M key, 1 M.2 A key), M21 module support, 1 DFI eMMC modular port, 2 2.5GbE RJ45, 2 USB 3, 2 USB 2.0, 2 COM D-Sub,1 Audio Jack,4 RS232, 4 USB 2.0 headers, Gaming I/O(UART/USB2.0/Audio), -5 to 65°C
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|

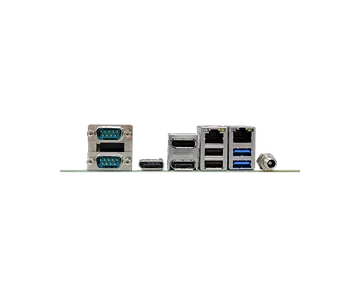

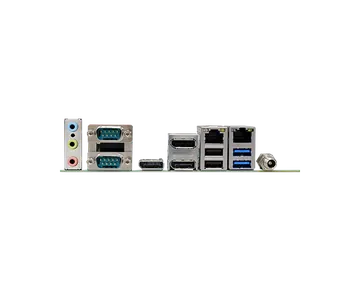

| HPT171-CB-8845HS(45W) | 770-HPT1711-000G | HPT171-CB-8845HS: Rear I/O (3 DP++, 2 2.5GbE, 2 USB3.2, 2 USB2.0, 2 COM, 1 AUDIO JACK), Internal I/O (M.2 M/A Key, 5 USB2.0, 4RS232), DC-Jack, Normal Temp -5~65°C |

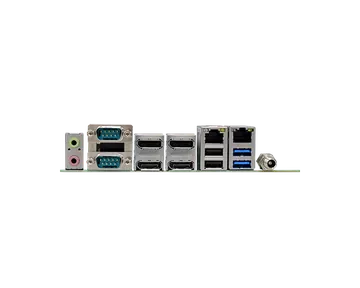

| HPT171-CB-8645HS(45W) | 770-HPT1711-100G | HPT171-CB-8645HS: Rear I/O (4 DP++, 2 2.5GbE, 2 USB3.2, 2 USB2.0, 2 COM, 1 AUDIO JACK), Internal I/O (M.2 M/A Key, 5 USB2.0, 4RS232), DC-Jack, Normal Temp -5~65°C |
| HPT171-CB-8840U(28W) | 770-HPT1711-200G | HPT171-CB-8840U: Rear I/O (3 DP++, 2 2.5GbE, 2 USB3.2, 2 USB2.0, 2 COM, 1 AUDIO JACK), Internal I/O (M.2 M/A Key, 5 USB2.0, 4RS232), DC-Jack, Normal Temp -5~65°C |
| HPT171-CB-8640U(28W) | 770-HPT1711-300G | HPT171-CB-8640U: Rear I/O (4 DP++, 2 2.5GbE, 2 USB3.2, 2 USB2.0, 2 COM, 1 AUDIO JACK), Internal I/O (M.2 M/A Key, 5 USB2.0, 4RS232), DC-Jack, Normal Temp -5~65°C |
| Item Name | Part Number | Description |
|---|---|---|
| eMMC6-4G | 774-EMMCBD1-000G | EMMC Board: EMMC Board 64G for EC700-ADN, -40℃~+85℃ |
| eMMC-128G | 774-EMMCBD1-200G | EMMC Board: EMMC Board 128G for EC700-ADN, -40℃~+85℃ |
| M2A-HDMI | 774-M2AHDM-000G | M2A-HDMI20: DFI M.2 A key DP-to-HDMI 2.0 Internal Module |
| M2A-VGA | 774-M2AVGA-000G | M2A-VGA: DFI M.2 A key DP-to-VGA Internal Module |
| M2A-LVDS | 774-M2ALVD-000G | M2A-LVDS: DFI M.2 A key DP-to-LVDS Display Module |
| M2A-DP | 774-M2ADP1-000G | M2A-DP: DFI M.2 A key DP-to-Internal DP Module w/re-driver |
| M2A-EDP | 774-M2AEDP-000G | M2A-EDP: DFI M.2 A key DP-to-EDP Display Module |
| M2A-M21 | 770-M2AM21-000G 770-M2AM21-100G 770-M2AM21-200G | M2A-M21: DFI M.2 A key-to-M.2 M/B key(PCIE) (3042) adapter wi SIM slot, 4 USB2.0 M2A-M21: DFI M.2 A key-to-M.2 M/B key(USB3/2) (3042) adapter wi SIM slot, 4 USB2.0 M2A-M21: DFI M.2 A key to USB module with 2 USB3.2 Gen1, 4 USB2.0 |
| HDMI-to-DVI cable | A81-013010-017G | DVI CABLE, DVI-I 24+5P W/SCREW to HDMI, L=300mm |
| Audio cable | A81-022034-016G A81-022036-016G | Line-out/Mic-in, Length: 300mm, w/bracket Line-out/Mic-in, Length: 110m |
| Speaker | 293-130020-010G | SPEAKER 3W,150mm |
| COM port cable | A81-015011-001G A81-015019-004G | 1-port D-Sub, Length: 250mm, w/bracket 1-port D-Sub, Length: 250mm |
| DIO cable | A81-009159-018G | Loopback, Length: 100mm |
| Front Panel cable | A81-009615-016G | Length:270mm |
| SATA cable | A81-002144-018G | Serial ATA data & power cable w/lock (Length: 300mm) |
| SATA PWR adapter cable | A81-009794-018G | SATA Power 5P/1.25mm to4P/2.5mm,Length: 100mm |
| USB 2.0 cable | A81-001091-016G | USB 2.0 2-port cable (Length: 250mm,Pitch 2.0mm) W/Bracket |
