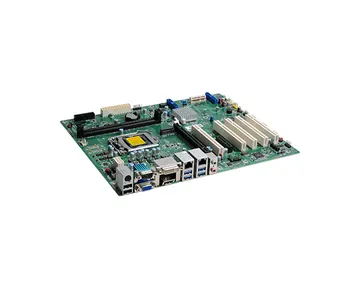

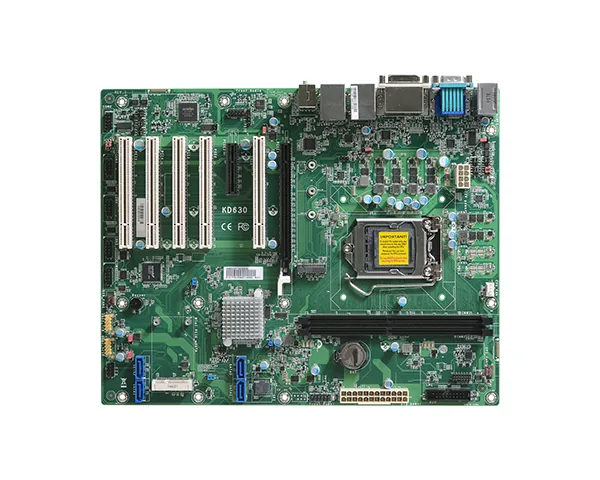

KD630-H110
ATX, 6th/7th Gen Intel® Core™, 2 DDR4 UDIMM, 1 PCIe x16, 1 PCIe x4, 5 PCI, 1 M.2 M key, 1 mSATA, 2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 6 USB 2.0
- 7th/6th Gen Intel® Core™ with Intel® H110
- DDR4: 2 DDR4 UDIMM up to 32GB
- 2 Independent Displays: VGA+DVI-I / VGA+HDMI / DVI-I+HDMI
- 4K High Resolution: Supports 4K/ 2K resolution
- Multiple Expansion: 1 PCIe x16, 1 PCIe x4, 5 PCI, 1 M.2 M key, 1 mSATA
- Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 6 USB 2.0
- 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Mini PCIe
#PCIe x16
#Windows
#Linux
#HDMI
#DVI-I
#DVI-D
#VGA
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#Legacy ISA/PCI Expansion Port
#UKCA Certification
Főbb jellemzőkKey features
- 7th/6th Gen Intel® Core™ with Intel® H110
- DDR4: 2 DDR4 UDIMM up to 32GB
- 2 Independent Displays: VGA+DVI-I / VGA+HDMI / DVI-I+HDMI
- 4K High Resolution: Supports 4K/ 2K resolution
- Multiple Expansion: 1 PCIe x16, 1 PCIe x4, 5 PCI, 1 M.2 M key, 1 mSATA
- Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 6 USB 2.0
- 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
System
- Processor
- 7th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W: Intel® Core™ i7-7700K (4 Cores, 8M Cache, up to 4.5 GHz); 91W (Non-LTS) Intel® Core™ i7-7700 (4 Cores, 8M Cache, up to 4.2 GHz); 65W Intel® Core™ i7-7700T (4 Cores, 8M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-7500 (4 Cores, 6M Cache, up to 3.8 GHz); 65W Intel® Core™ i5-7500T (4 Cores, 6M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-7101E (2 Cores, 3M Cache, 3.9 GHz); 65W Intel® Core™ i3-7101TE (2 Cores, 3M Cache, to 3.4 GHz); 35W 6th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W: Intel® Core™ i7-6700K (Cores, 8M Cache, up to 4.2 GHz); 91W (Non-LTS) Intel® Core™ i7-6700 (4 Cores, 8M Cache, up to 4.0 GHz); 65W Intel® Core™ i7-6700TE (4 Cores, 8M Cache, up to 3.4 GHz); 35W Intel® Core™ i5-6500 (4 Cores, 6M Cache, up to 3.6 GHz); 65W Intel® Core™ i5-6500TE (4 Cores, 6M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-6101E (2 Cores, 4M Cache, 3.7 GHz); 65W Intel® Core™ i3-6101TE (2 Cores, 4M Cache, to 2.7 GHz); 35W Intel® Pentium® G4400 (2 Cores, 3M Cache, 3.3 GHz); 65W Intel® Pentium® G400TE (2 Cores, 3M Cache, 2.9 GHz); 35W Intel® Celeron® G3900 (2 Cores, 2M Cache, 2.8 GHz); 65W Intel® Celeron® G3900TE (2 Cores, 2M Cache, 2.6 GHz); 35W
- Chipset
- Intel® H110 Chipset
- Memory
- Two 288-pin UDIMM up to 32GB Dual Channel DDR4 up to 2400MHz Core™ i5/i7 only support non-ECC
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI1.4b VGA: resolution up to 1920x1200 @ 60Hz DVI-I: resolution up to 1920x1200 @ 60Hz HDMI1.4b: resolution up to 4096x2160 @ 24Hz
- Dual Displays
- VGA + DVI-I / VGA + HDMI / DVI-I + HDMI
Expansion
- Interface
- 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2) 5 x PCI 1 x M.2 2242/2260/2280 M key (PCIe Gen2 x 4 NVMe, share with PCIe x4 slot) 1 x mSATA (Share with SATA connector)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I210AT (10/100/1000Mbps) 1 x Intel® I219V (10/100/1000Mbps)

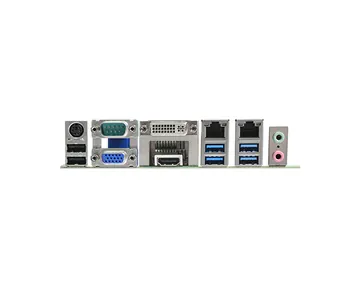

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 4 x USB 3.1 Gen1 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI
- Audio
- 1 x Line-in (opt., MOQ required) 1 x Line-out 1 x Mic-in
Internal I/O
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch)
- USB
- 4 x USB 2.0 (2.54mm pitch) or up to 2 x Vertical USB 2.0 (type A) (opt., MOQ required)
- Audio
- 1 x Audio 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO
- LPC
- 1 x LPC (supports LPC EXT-RS232/RS485 module)
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM2.0/1.2 (opt., MOQ required)
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i7-7700K: 3.3V @ 0.28A (0.924W); 5V @ 0.36A (1.8W); 12V @ 0.17A (2.04W) Max.: i7-7700K:3.3V @ 0.29A (0.957W); 5V @ 1.22A (6.1W); 12V @ 10.13A (121.56W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 7 32/64-bit (6th Gen Intel® Core™/Pentium®/Celeron® processors only) Window 8.1 64-bit (6th Gen Intel® Core™/Pentium®/Celeron® processors only) Windows 10 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 537,439 hrs @ 25℃; 306,531 hrs @ 45℃; 192,776 hrs @ 60℃; 164,675 hrs @ 65℃
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 38.1mm, Bottom Side: 3mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 KD630-H110 motherboard 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 I/O shield A49-SD6300-001G 1 M.2 standoff A33-725019-090G 1 M.2 Screw A32-112016-041G 1 Mini PCIe Screw A32-112016-041G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KD630-H110C | 770-KD6303-000G | 2 DDR4 DIMM, 2 LAN, 2 RS-232/422/485, 4 RS-232, 4 USB 3.1 Gen1, 6 USB 2.0, 24-pin ATX, Thermal Active, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | A81-001066-016G | Length: 350mm |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G | Length: 500mm |
| Thermal solution | A71-103004-000G A71-101158-000G 761-103001-000G | For 35W, Height: 37.3mm For 65W, Height: 74.47mm For 95W, Height: 77.2mm |
| LPC EXT-RS232 module | 770-EXTRS1-000G | 4 x RS232 ports |
| LPC EXT-RS485 module | 770-EXTRS1-100G | 4 x RS485 ports |
| Mini PCIe bracket | A31-028423-000G | expansion for full sized mini PCIe |
| Mini PCIe Screw | A32-31201F-020G | expansion for full sized mini PCIe |
