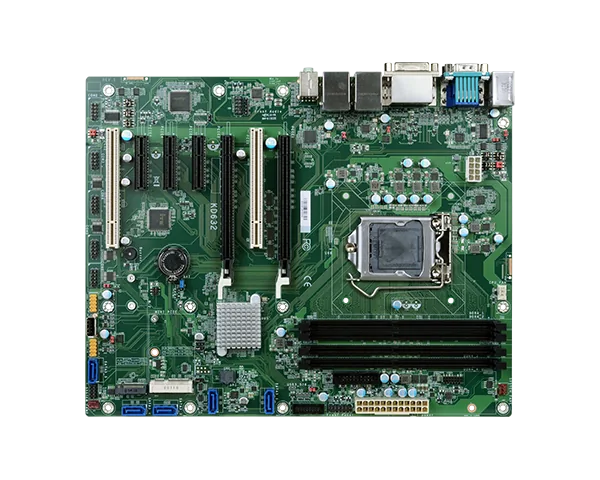

KD632-C236
ATX, 6th/7th Gen Intel® Core™, 4 DDR4, 2 PCIe x16, 3 PCIe x4, 2 PCI, 1 M.2, 1 Mini PCIe, 1 VGA, 1 DVI-D, 1 DP++
- 6th/7th Gen Intel® Core™ with Intel® C236
- Three independent displays: VGA, DVI-D, DP++
- Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 3 PCIe x4, 2 PCI, 1 M.2 M key, 1 Mini PCIe
- Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.1 Gen1, 7 USB 2.0
- 4 DDR4 ECC/Non-ECC U-DIMM up to 64GB
- 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Mini PCIe
#4K2K Display
#PCIe x16
#Windows
#Linux
#DVI-I
#DVI-D
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#Legacy ISA/PCI Expansion Port
Főbb jellemzőkKey features
- 6th/7th Gen Intel® Core™ with Intel® C236
- Three independent displays: VGA, DVI-D, DP++
- Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 3 PCIe x4, 2 PCI, 1 M.2 M key, 1 Mini PCIe
- Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.1 Gen1, 7 USB 2.0
- 4 DDR4 ECC/Non-ECC U-DIMM up to 64GB
- 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
System
- Processor
- 6th/7th Generation Intel® /Xeon Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
- Chipset
- Intel® C236 Chipset
- Memory
- Four 288-pin ECC/Non ECC U-DIMM up to 64GB Dual Channel DDR4 2133/2400MHz (Core™ i5/i7 only support non-ECC)
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz DVI-D: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz
- Triple Displays
- VGA + DVI-I (DVI-D signal) + DP++
Expansion
- Interface
- 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3) 3 x PCIe x4 (Gen 3) 2 x PCI 1 x M.2 2260/2280 M key (SATA3.0/PCIe Gen3 x 2 NVMe) (Optane memory support) 1 x Mini PCIe (PCIe/mSATA/USB 2.0)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Xeon/Core i7/i5 supports iAMT)

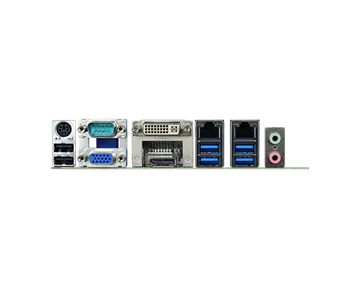

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 4 x USB 3.1 Gen1 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++
- Audio
- 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Internal I/O
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch)
- USB
- 2 x USB 3.1 Gen1 4 x USB 2.0 + 1 x Vertical USB 2.0 (type A)
- Audio
- 1 x Front Audio Header 1 x S/PDIF
- SATA
- 5 x SATA 3.0 (up to 6Gb/s) (1 SATA shared with mini PCIe (SATA), default at mini PCIe/2 SATA shared with M.2, default at M.2) RAID 0/1/5/10
- DIO
- 1 x 8-bit DIO
- LPC
- 1 x LPC (supports LPC EXT-RS232/RS485 module)
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM1.2/2.0 (opt., MOQ required)
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i7-7700: 3.3V @ 0.3422A (1.129Watt); 5V @ 0.5672A (2.836Watt); 12V @ 0.7255A (8.706Watt) Max.: i7-7700:3.3V @ 0.3254A (1.0738Watt); 5V @ 0.5636A (2.818Watt); 12V @ 10.583A (126.996Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Windows 7 32/64-bit Window 8.1 64-bit Windows 10 64-bit Linux Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.
Environment
- Temperature
- Operating: 0 to 60°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 537,588 hrs @ 25°C; 298,813 hrs @ 45°C; 184,762 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 37.35mm Bottom Side: 4.4mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 KD632-C236 motherboard 1 COM port cables (Length: 400mm, 2 x COM ports): A81-015026-023G 1 Serial ATA data cable (Length: 500mm): 332-553001-005G 1 I/O shield: A49-KD6000-000G : 643-KD6321-000G 1 M.2 standoff: A33-725019-090G 1 M.2 screw: A32-112016-041G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KD632-C236CRM | 770-KD6321-100G | 4 DDR4 U-DIMM, 2 LAN, 6 COM, 13 USB, 0 to 60°C |
| KD632-C236CRM | 770-KD6321-400G | 4 DDR4 U-DIMM, 2 LAN, 6 COM, 13 USB, 1 TPM 2.0, 0 to 60°C |
| KD632-C236CRM | 770-KD6321-500G | 4 DDR4 U-DIMM, 2 LAN, 6 COM, 13 USB, 1 TPM 1.2, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350mm |
| USB 3.1 Gen1 port cable | A81-001052-023G | Length: 320mm |
| Front Audio cable | A81-022022-016G | |
| DP to HDMI dongle | 612-D2H13M-000G | |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G | Length: 500mm, W/LOCK |
| Thermal solution | A71-103004-000G A71-101158-000G 761-103001-000G | For 35W, Height: 37.3mm For 65W, Height: 74.47mm For 95W, Height: 77.2mm |
| LPC EXT-RS232 module | 770-EXTRS1-000G | 4 x RS232 ports |
| LPC EXT-RS485 module | 770-EXTRS1-100G | 4 x RS485 ports |
