CH960-CM246/QM370

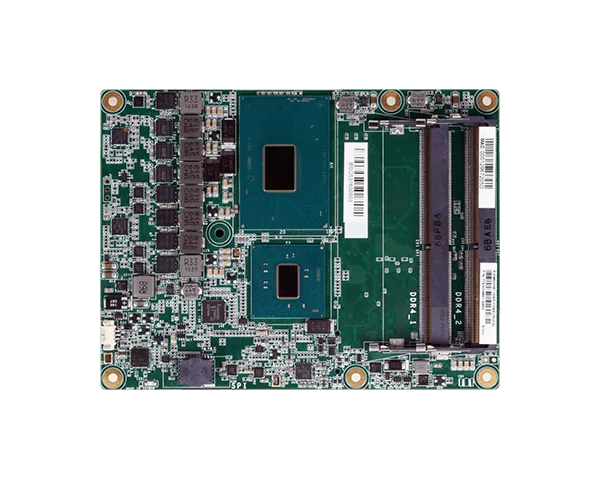

COM Express Type 6, 8th/9th Gen Intel® Core™, Intel® CM246/QM370, DDR4, 1 PCIe x16, 8 PCIe x1,12 USB, 4 SATA 3.0, 1 VGA, 1 LVDS, 2 DDI

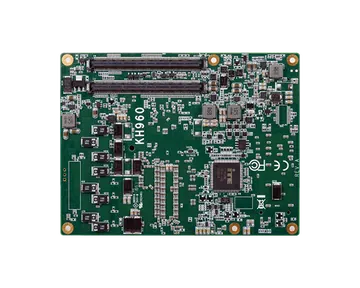

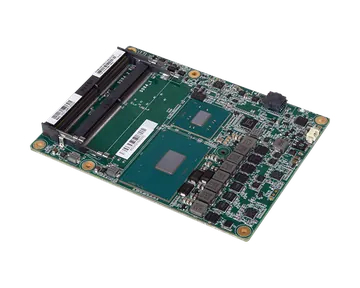

KH960-HM175
COM Express Type 6, 7th Gen Intel® Core™, Intel® HM175, DDR4, 1 PCIe x16, 12 USB, 4 SATA 3.0, 1 VGA, 1 LVDS, 2 DDI
- 7th Gen Intel® Core™, Intel® HM175 Chipset
- Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
- Multiple expansion: 1 PCIe x16, 8 PCIe x1
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
- Dual channel DDR4 2400MHz SODIMM up to 32GB
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
Tanúsítványok
#IoT
#Intel
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#DDR4
#RoHS Certification
Főbb jellemzőkKey features
- 7th Gen Intel® Core™, Intel® HM175 Chipset
- Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
- Multiple expansion: 1 PCIe x16, 8 PCIe x1
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
- Dual channel DDR4 2400MHz SODIMM up to 32GB
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- 7th Generation Intel® Core™ Processors, BGA 1440 Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W
- Chipset
- Intel® HM175 Chipset
- Memory
- Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2400MHz
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL up to 5.0, DirectX 11, OpenCL 2.1 HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit) HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
- Display
- 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 2 x DDI (HDMI/DVI/DP++) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 30 24bpp DVI: resolution up to 1920x1200 @ 60Hz DP++/eDP: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + LVDS + DDI or VGA + DDI1 + DDI2 eDP + 2 DDI (available upon request)
Expansion
- Interface
- 1 x PCIe x16 or 2 x PCIe x8 (Gen 3) 8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I219LM PCIe (10/100/1000Mbps)
I/O
- USB
- 4 x USB 3.0 8 x USB 2.0
- SATA
- 4 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO (Default 4 inputs and 4 outputs)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- "Typical: 12V @ 1.2727A (15.272Watt) Max.: 12V @ 7.927A (95.124Watt)"
OS Support
- OS Support
- Windows: Windows 10 IoT Enterprise 64-bit Linux: Yocto Project v2.2
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- "1626537 hrs @ 25°C; 991264 hrs @ 45°C; 660112 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled"
Mechanism
- Dimensions
- COM Express® Basic 95mm (3.74") x 125mm (4.9")
- Compliance
- PICMG COM Express® R2.1, Type 6
Standards and Certifications
- Certifications
- RoHS
Packing List
- Packing List
- 1 KH960-HM175 board 1 Cooler (Height: 36.58mm) Standard: A71-111026-000G or 1 Cooler (Height: 45.3mm) Wide-Temp: A71-111040-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KH960-HM175BS-7102E | 770-KH9602-600G | Cooler, Intel Core i3-7102E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| KH960-HM175BS-7100E | 770-KH9602-500G | Cooler, Intel Core i3-7100E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat spreader | A71-011073-000G | Height: 11mm |
| COM332-B carrier board kit | 770-CM3321-000G |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
