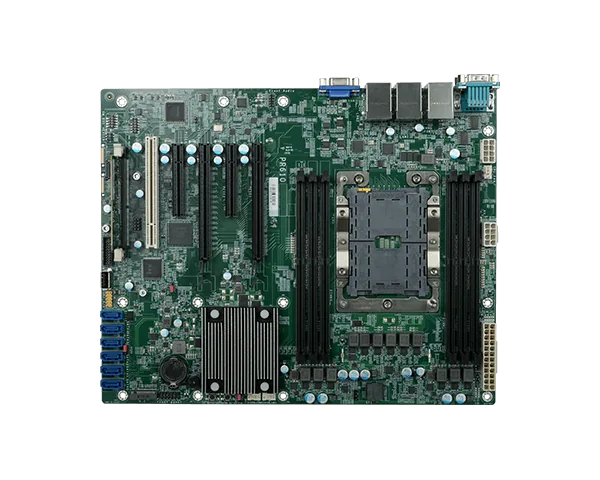

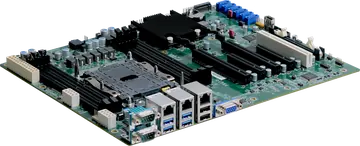

PR610-C621
PR610-C621, ATX with 1st/2nd Gen Intel® Xeon®, designed with Multiple interfaces, Xeon processor which is ideal for machine vision/AOI/medical imaging/MRI/CT applications
- 1st/2nd Gen Intel® Xeon® Scalable Processor with Intel® C621
- 6 DDR4 ECC-RDIMM up to 384GB
- Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 2 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
- Multiple expansion: 2 PCIe x16, 2 PCIe x8, 1 PCI, 1 M.2
- 15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
#Server Boards
#IoT
#Intel
#4K2K Display
#PCIe x16
#Windows
#Linux
#VGA
#DDR4
#RoHS Certification
#Legacy ISA/PCI Expansion Port
Főbb jellemzőkKey features
- 1st/2nd Gen Intel® Xeon® Scalable Processor with Intel® C621
- 6 DDR4 ECC-RDIMM up to 384GB
- Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 2 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
- Multiple expansion: 2 PCIe x16, 2 PCIe x8, 1 PCI, 1 M.2
- 15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- 1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W: Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W 2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W: Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W
- Chipset
- Intel® C621 Chipset
- Memory
- Six 288-pin ECC-RDIMM up to 384GB Single Channel DDR4 up to 2933 MHZ Support Optane DC persistent memory module(DCPMM) in DIMM3 and DIMM6 (2nd Gen Xeon Scalable (62xx/52xx/ 4215) processors only)
- BIOS
- Insyde SPI 128Mbit
Graphics
- Display
- 1 x VGA (only with SEM2500/SEM2510)
- Single Display
- VGA (only with SEM2500/SEM2510)
Expansion
- Interface
- 2 x PCIe x16 (Gen 3) 2 x PCIe x8 (Gen 3) 1 x PCI 1 x DDR4 SO-DIMM for SEM2500/2510 (opt.) 1 x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe) *Note: PCIe x8 slot is OPEN edge.
Audio
- Audio Codec
- ALC887
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps) IPMI: 1 x RTL8211F (only with SEM2500)

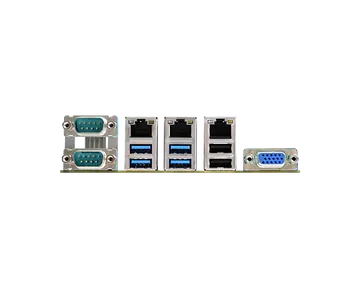

Rear I/O
- Ethernet
- 2 x GbE (RJ-45) 1 x dedicated IPMI LAN (only with SEM2500)
- USB
- 4x USB 3.1 Gen1 2x USB 2.0 stack
- Display
- 1 x VGA (only with SEM2500/SEM2510)
Internal I/O
- Serial
- 2 x RS-232 (DB-9)
- USB
- 2x USB 2.0 header (2x USB 2.0) 1x USB 2.0 vertical Type A 1x USB 3.1 Gen1 header (2x USB 3.1 gen1)
- SATA
- 6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 sec/Min
Security
- TPM
- TPM 2.0 (opt.)
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: 5120T: 3.3V @ 0.42A (1.386Watt); 5V @2.33A (11.65Watt); 12V @ 2.34A (28.08Watt) Max.: 5120T:3.3V @ 0.43A (1.419Watt); 5V @ 2.4A (12.0Watt); 12V @ 12.51A (150.12Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Windows 10 IoT Enterprise LTSB RS5 (64-bit) Windows Server 2012R2 Windows Server 2016 Linux
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH, Non-condensing Storage: 5 to 90% RH, Non-condensing
- MTBF
- 493,780 hrs @ 25°C; 290,407 hrs @ 45°C ; 187,006 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 31.6mm Bottom Side: 4mm
Packing List
- Packing List
- 1 PR610-C621 motherboard 1 I/O shield: A49-PR6100-020G for PR610-C621DR/A49-PR6100-010G for PR610-C621DRV/A49-PR6100-000G for PR610-C621DRI 1 M.2 screw for 2280 A32-112016-041G 1 SEM2500/2510 (by ordered P/N)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| PR610-C621DR | 770-PR6101-000G | 2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 0 to 60°C |
| PR610-C621DRV | 770-PR6101-100G | 2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 VGA, BMC Module: SEM2510-VGA, 0 to 60°C |
| PR610-C621DRI | 770-PR6101-200G | 2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 IPMI-Mgnt, BMC Module: SEM2500-VGA/IPMI, 0 to 60°C |
| PR610-C621DR | 770-PR6101-300G | 2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 TPM 2.0, 0 to 60°C |
| PR610-C621DRV | 770-PR6101-400G | 2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 VGA, BMC Module: SEM2510-VGA, 1 TPM 2.0, 0 to 60°C |
| PR610-C621DRV | 770-PR6101-500G | 2 LAN, 2 COM, 6 USB3.1 Gen1, 5 USB2.0, 1 IPMI-Mgnt, BMC Module: SEM2500-VGA/IPMI, 1 TPM 2,0, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350mm |
| Cooler | A71-101400-000G | Narrow ILM LGA 3647 |
| USB 3.1 Gen1 cable | A81-001052-023G | Length: 320mm |
| Serial ATA cable | 332-553001-005G | Length: 500mm |
