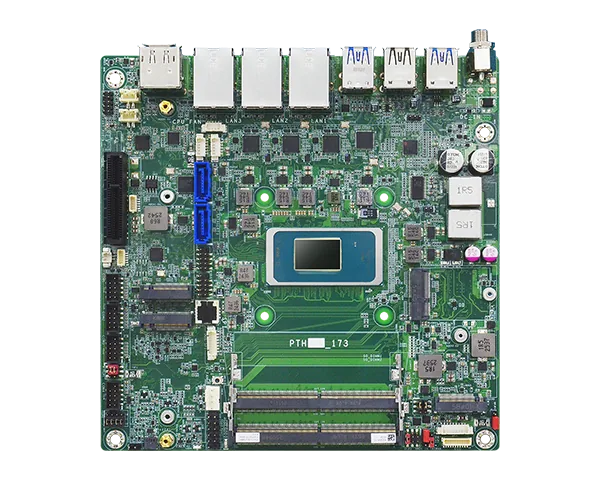

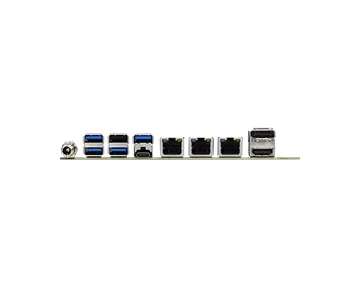

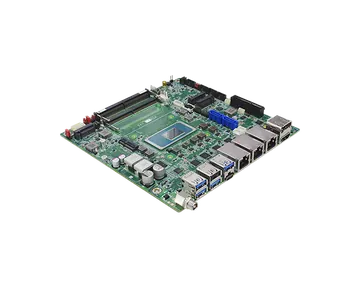

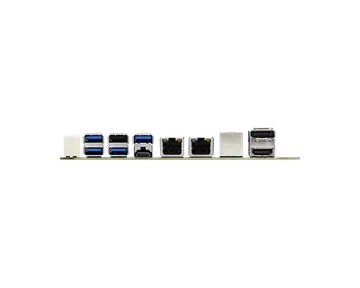

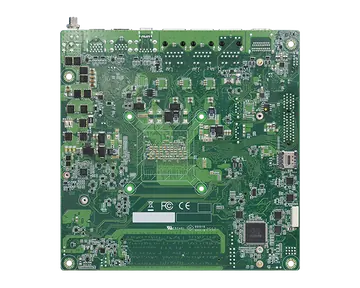

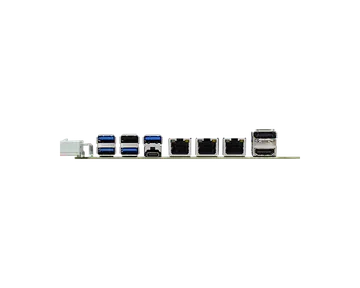

Mini-ITX, Intel Panther Lake H processor, DDR5, DP++, HDMI, USB Type C, M2A-Display, 1 PCIe x4, M.2 M Key, M.2 B Key, M.2 E Key, M.2 A Key, SIM, 3 Intel 2.5GbE, 4 COM,2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C, 5 USB 2.0, 2 SATA 3.0, Audio, EXT-OOB, DC-Jack
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| PTH171-IB-UX7358HR | 770-PTH171X-000G | PTH171-IB-UX7358HR, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (w/o PCIE slot, M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12V DC Jack,-5 to 65°C |
| PTH171-IE-U7366HRE | 770-PTH171X-100G | PTH171-IE-U7366HRE, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12V DC Jack,-20 to 70°C |
| PTH171-IE-U7365RE | 770-PTH171X-200G | PTH171-IE-U7365RE, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12V DC Jack,-20 to 70°C |
| PTH171-IE-U5336HRE | 770-PTH171X-300G | PTH171-IE-U5336HRE, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12V DC Jack,-20 to 70°C |
| PTH171-IE-U5335RE | 770-PTH171X-400G | PTH171-IE-U5335RE, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12V DC Jack,-20 to 70°C |
| PTH171-IB-U9388H | 770-PTH171X-500G | PTH171-IB-U9388H, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (w/o PCIE slot, M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12V DC Jack,-5 to 65°C |
| PTH173-IB-UX7358HR | 770-PTH173X-000G | PTH171-IB-UX7358HR, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (w/o PCIE slot, M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12~28V DC Jack,-5 to 65°C |
| PTH173-IE-U7366HRE | 770-PTH173X-100G | PTH171-IE-U7366HRE, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12~28V DC Jack, -20 to 70°C |
| PTH173-IE-U7365RE | 770-PTH173X-200G | PTH171-IE-U7365RE, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12~28V DC Jack, -20 to 70°C |
| PTH173-IE-U5336HRE | 770-PTH173X-300G | PTH171-IE-U5336HRE, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12~28V DC Jack, -20 to 70°C |
| PTH173-IE-U5335RE | 770-PTH173X-400G | PTH171-IE-U5335RE, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12~28V DC Jack, -20 to 70°C |
| PTH173-IB-U9388H | 770-PTH173X-500G | PTH171-IB-U9388H, 2 DDR5, Rear I/O(1 DP++,1 HDMI20, 3 LAN, 2 USB 3.2 Gen2 Type A, 2 USB 3.2 Gen1 Type A, 1 USB 2.0 Type A, 1 USB 3.2 Gen2 Type C), Internal I/O (w/o PCIE slot, M.2 M/B/E/A Key, 5 USB 2.0, w/TPM), 12~28V DC Jack,-5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| WM130 Chassis | CASE, mini-ITX, 200x210.6x153.8mm, for 6.7"x6.7" | |
| Power adapter-230W/24V | 671-123001-000G | POWER ADAPTER,230W,HA-1231-24LC,Input:100~240V,Output:24V/9.6A,155x75x25.4mm,L=1500mm,DC Cord 5.5*2.5mm,LV6,62368-1,HA-1231-24LC-D1(LITEON)RoHS |
| Power adapter-150W/24V | 671-115004-000G | POWER ADAPTER,150W,PA-1151-08EA,Input:100~240V,Output:24V/6.25A,138x66x22mm,L=1500mm,DC PLUG 5.5*2.5*10mm(10A),LV6,62368-1,PA-1151-08EA(LITEON)RoHS |
| Power adapter-120W/24V | 671-112005-100G | POWERADAPTER,120W,GST120A24,Input:100~240V,Output:24V/5A,167x67x35mm,L=1200mm,DC Cord 5.5*2.5*17mm(Lockable),LV6,62368-1,W/DFI JP PSE,GST120A24-DFI(MEAN WELL)RoHS |
| Power adapter-150W/12V | 671-115003-000G | POWER ADAPTER,150W,EA11701E-1200,Input:100~240V,Output:12V/12.5A,179x65x40mm,L=1500mm,DC PLUG 5.5*2.5*10mm(10A),LV6,62368-1,EA11701E(T02)(EDAC)RoHS |
| Power adapter-60W/12V | 671-106012-000G | POWER ADAPTER,60W,EA10681N-120,Input:100~240V,Output:12V/5A,113x49x35mm,L=1500mm,DC PLUG 5.5*2.5*10mm(Lockable),LV6,62368-1,EA10681N(183)(EDAC)RoHS |
| M2A-LVDS | 770-M2ALVD-000G | M.2 A/E key DP-to-LVDS Display Module |
| M2A-EDP | 770-M2AEDP-000G | M.2 A/E key DP-to-EDP Display Module |
| M2A-HDMI (HDMI/DVI) | 770-M2AHDM-000G A81-026014-004G A81-013010-017G | M.2 A/E key DP-to-HDMI 2.0 Internal Module HDMI Extend CABLE (90D M, L=300mm) DVI CABLE, DVI-I 24+5P W/SCREW to HDMI, L=300mm |
| M2A-DP | 770-M2ADP1-000G A81-020081-023G | M.2 A/E key DP-to-Internal DP Module w/re-driver DISPLAYPORT Extend CABLE (90D M, L=300mm) |
| M2A-VGA | 770-M2AVGA-000G A81-012004-001G | M.2 A/E key DP-to-VGA Internal Module VGA CABLE;PITCH:2.54mm;L=350mm |
| M2A-M21 (to B key w/I SIM slot) | 770-M2AM21-000G 770-M2AM21-100G | M.2 A/E key-to-M.2 M/B key(PCIE) (3060) adapter wi SIM slot, 4 USB2.0 M.2 A/E key-to-M.2 M/B key(USB3/2) (3060) adapter wi SIM slot, 4 USB2.0 |
| M2A-M21 (2xUSB3/ 4xUSB2) | 770-M2AM21-200G | M.2 A/E key to USB module (3060) with 2 USB3.2 Gen1, 4 USB2.0 |
| M2A-M21 (4xUSB2) | 770-M2AM21-300G | M.2 A/E key-to-USB adapter with 4 USB2.0 |
| M2A-MIPI (MIPI-CST) | 770-M2AMIP-000G | M.2 A key-to-MIPI CSI Adapter |
| SMBUS cable | A81-009716-018G | WIRE CABLE, SMBus, WL1010 1*5P/1mm to KB931 2*3P/2mm, L=200mm, UL1571, 28AWG, CYT23050202BAA(GREAT IDEAL)RoHS |
| COM Port Cable | A81-015115-018G | COM PORT CABLE, D-SUB 9P M to KB931 2*5P/2mm, L=250mm, UL2651, 28AWG |
| PS/2 cable | A81-023005-009G | PS2 CABLE, MD 6P F x2 (GREEN & PURPLE) W/BRACKET to 2032H 2*5P/2mm, L=400mm, UL2725, 28AWG |
| SATA cable w/lock | A81-002013-000G | Serial ATA data & power cable w/lock (Length: 300mm) |
| SATA PWR adapter cable | A81-009794-018G | SATA Power 5P/1.25mm to4P/2.5mm,Length: 100mm |
| USB 2.0 cable | A81-000060-054G A81-001032-016G | USB 2.0 1-port cable (Length: 200mm) NO Bracket USB 2.0 2-port cable (Length: 200mm) NO Bracket |
| DIO cable | A81-009715-018G | WIRE CABLE, DIO, WL1010 1*10P/1mm to PH-8Y 1*8P/2mm and PH-4Y 1*4P/2mm, L=200mm, UL1571, 28AWG |
| Fan cable | A81-009771-018G | CPU/System 3P/4P Fan 1.25p-to2.54p adatper cable, Length: 150mm |
| Front Panel cable | A81-009615-016G | WIRE CABLE, Front panel, HSG 2*6P/2.54mm to 3φ LED*2 (orange/green) & SW Button, L=270mm, |
| Front Audio, w/bracket, 300mm | A81-022034-016G | AUDIO CABLE, HSG 2*5P/2.0mm to 3.5 audio jack green*1 and pink *1, w/ STD bracket, L=300mm, UL2651, 28AWG |
| Front Audio, 110m | A81-022036-016G | AUDIO CABLE, HSG 2*5/2mm TO RED Earphone Jack and Green Earphone Jack, L=110mm, UL1517, 28AWG |
| WIFI7 BE211 | TBD | TBD |
| KS-AUD2 | 770-KSAUD2-000G | Audio Amplifiers Mono/Stereo High-Power Class D Amplifier |
| SPEAKER 3W,150mm | 293-130020-010G | SPEAKER 3W,150mm |
| SPEAKER 5W, 350mm | 293-050001-100G | SPEAKER 5W,8Ω,w/CABLE 350mm |
