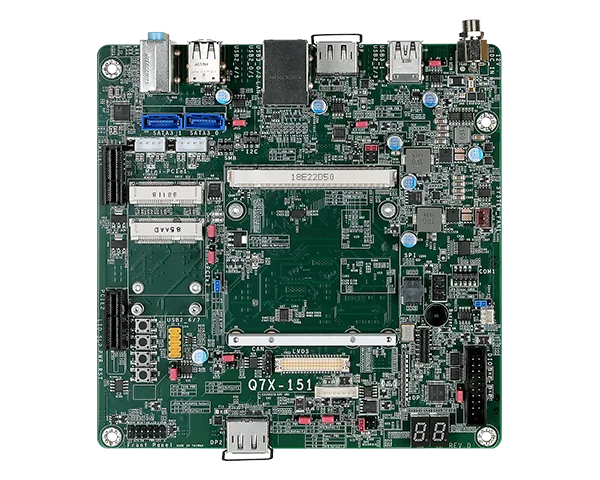

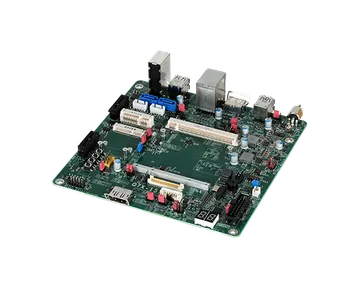

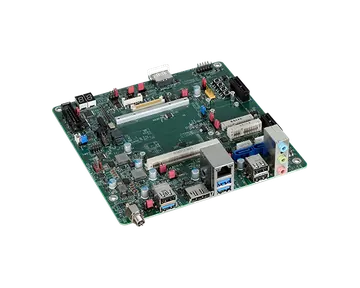

Q7X-151(R.D1)
Mini-ITX, Qseven Modules, 2 PCIe x1, 2 Mini PCIe, 1 SDIO, 1 Lan, 11 USB, 2 SATA 3.0, 2 COM, 1 LVDS, 2 DP, 1 eDP
- Qseven R2.1
- Supports Qseven modules
- Multiple displays: 2 DP, 1 LVDS, 1 eDP
- Rich I/O: 1 GbE, 3 USB 3.0, 8 USB 2.0, 2 COM
- Mini-ITX form factor
Főbb jellemzők
Tanúsítványok
#Mini PCIe
#Compact Size
#1G Ethernet
#Multiple Expansion
#12V DC-in
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Qseven R2.1
- Supports Qseven modules
- Multiple displays: 2 DP, 1 LVDS, 1 eDP
- Rich I/O: 1 GbE, 3 USB 3.0, 8 USB 2.0, 2 COM
- Mini-ITX form factor
Graphics
- Display
- 2 x DP 1 x LVDS 1 x eDP
Expansion
- Interface
- 2 x PCIe x1 2 x Mini PCIe 1 x SDIO
Audio
- Audio Codec
- Realtek ALC886

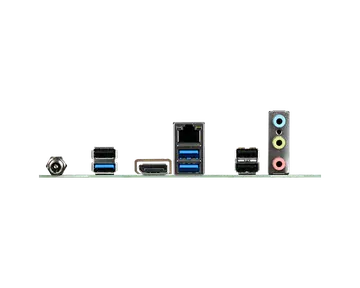

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- Serial
- 2 x RS232 Serial
- USB
- 3 x USB 3.0 6 x USB 2.0
- Display
- 1 x DP
- Audio
- 1 x Line-in 1 x Line-out 1 x Mic-in
Internal I/O
- Serial
- 1 x Serial Interface Connector (TX/RX)
- USB
- 2 x USB2.0
- Display
- 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- LPC
- 1 x LPC
- SMBus
- 1 x SMBus
- UART
- 2 x UART (TX/RX)
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Supply
- 12V DC-in jack
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 688750 hrs @ 25°C; 414322 hrs @ 45°C; 266462 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7")
Standards and Certifications
- Certifications
- CE, FCC, UKCA, RoHS
Packing List
- Packing List
- 1 Q7X-151(R.D1) board 1 Serial ATA signal cable: 332-553001-005G 1 I/O shield: A49-Q7X151-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter (100W, 12V, Level 6) | 671-110002-100G | |
| USB port cable | 332-253010-026G | |
| I/O shield | A49-Q7X151-000G |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
