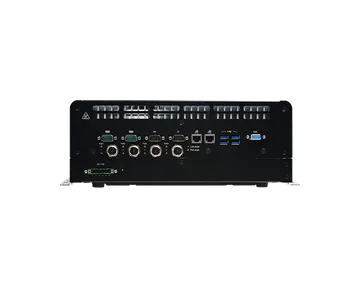

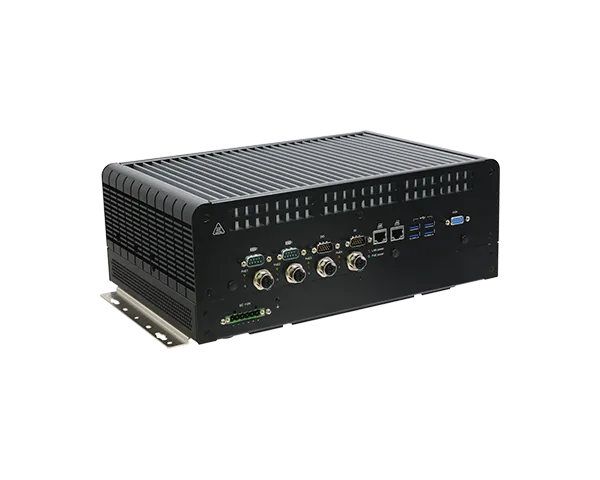

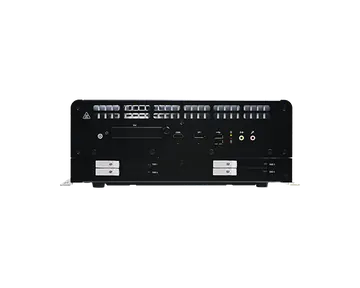

DFI's RC300-CS is the PoE/MXM-module/5G-NR support In-railway system powered by 8th/9th Intel® Processors. It designed for Electric interurban bus, Autonomous, MaaS, Fleet management, Robotaxi, AI Railway surveillance, Driver-less, Autopilot, track monitoring, and more. DFI RC300-CS support 8th/9th Gen Intel® Core, DDR4, 3 Mini PCIe, 2 M.2, 1 HDMI, 1 VGA, 1 DP++.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RC300H-CS111 | 750-RC3000-000G | Fanless railway system, CST51-Q370T, 4 M12 PoE, 2 COM, 6 USB, 2 LAN, 16 DIO, DC110V, 4x SSD bays, i7-9700TE, 2*8GB RAM, MXM RTX3000, F/G, RoHS |
| RC300H-CS122 | 750-RC3000-100G | Fanless railway system, CST51-Q370T, 4 M12 PoE, 2 COM, 6 USB, 2 LAN, 16 DIO, DC110V, 4x SSD bays, i7-9700TE, 2*16GB RAM, MXM RTX3000, F/G, RoHS |
| RC300H-CS-UPS | 755-RC3000-600G | Fanless Railway System, CST51-Q370T, 4 M12 PoE, 2 COM, 6 USB, 2 LAN, 16 DIO, DC110V, 2x SSD bays, i7-9700TE, 2*8GB RAM, MXM RTX3000,UPS, F/G, RoHS |
| RC300L-CS | 750-RC30L0-000G | Fanless Railway System, CST51-Q370T, 4 M12 PoE, 2 COM, 6 USB, 2 LAN, 16 DIO, DC 9~36V, 2x SSD bays, i7-9700TE, 8GB*2 RAM, F/G, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Memory | 138-580004-104G 138-540002-121G | 8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V 4GB DDR4 2666Mhz SO-DIMM, '-40 to 85C |
| 2.5” SSD | 785-S251TBG 785-S25512G 785-S25256G 785-S25128G | 2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoH |
| M.2 SATA SSD | 785-M2SATA64G 785-M2SATA128G 785-M2SATA256G 785-M2SATA512G | 64GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 128GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 256GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, 30u” -20~75℃ |
| WiFi/BT module kit | 761-AP1235-000G | WiFi/Bluetooth Module ENL-R8852BE, antenna *2, 200mm SMA cables*2, Mini PCIe Bracket, screws |
| LTE module kit | 761-RC3000-001G | EG25GGB CAT4 miniPCIe module, antenna*2, 300mm SMA cables*2 |
| 5G module kit | 761-RC3000-100G | RM520N-GL-M2 M.2 module, antenna*4, 184mm SMA cables *4 |
| M12 Cable | A81-005038-054G | 8-pin M12 X-coded to RJ45 PoE cable |
| CAN bus module | 770-MPE21-100G | MPE-CAN2 MiniPCIe Full CAN Module Card Asssembly |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
Intel Core Series 2 Processors with P-cores, 8x M12 X-coded PoE, AI, 5G cellular, 4x Swappable 2.5" SSD storage bays, -20°C to 70°C, DDR5, 1 Mini PCIe, 5 M.2, 1 HDMI, 2 DP++., 1 USB type C (DP Alt. mode), 2 2.5GbE, 2 COM, 1 USB 3.2 Gen1 Type A, 1 USB Type C (DP Alt mode), 2 USB 3.2 Gen1 Type A
Railway UPS, 110VDC power input, 9~12.6VDC power output, EN50155, -20°C ~60°C
