DFI Networker Kft.

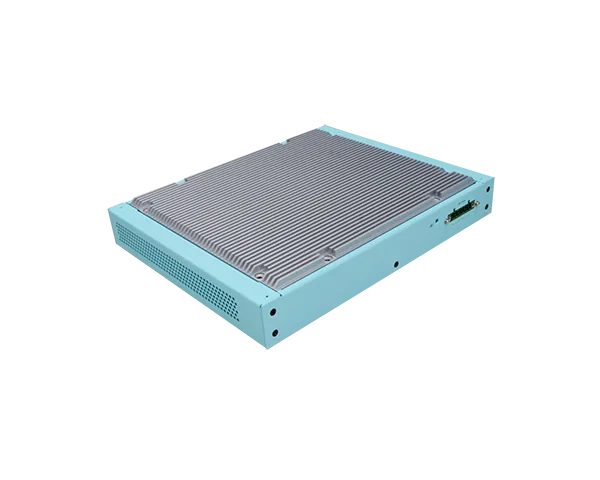

UPS-IP300

Railway UPS, 110VDC power input, 9~12.6VDC power output, EN50155, -20°C ~60°C

  • EN50155 compliant battery based Uninterruptible Power Backup system
  • 110Vdc (77VDC~137.5VDC) power input and 9~12.6Vdc power output
  • 3S2P 3900mAh Lion battery integrated, max. 300W continuous output
  • Backup time >10min at 300W
  • 80 watt-hour (7.4Ah*10.8V) capacity
  • Discharge operation temperature: -20°C ~60°C
  • Storage 3 months at 45°C storage temperature (Recovery 90% after storage)
  • 9-pin input power connector, 2x 8-pin output power connectors
ElőzetesPreliminary
Wide-temp: -20~60°C
EN 50155
#EN 50155

Főbb jellemzőkKey features

  • EN50155 compliant battery based Uninterruptible Power Backup system
  • 110Vdc (77VDC~137.5VDC) power input and 9~12.6Vdc power output
  • 3S2P 3900mAh Lion battery integrated, max. 300W continuous output
  • Backup time >10min at 300W
  • 80 watt-hour (7.4Ah*10.8V) capacity
  • Discharge operation temperature: -20°C ~60°C
  • Storage 3 months at 45°C storage temperature (Recovery 90% after storage)
  • 9-pin input power connector, 2x 8-pin output power connectors
