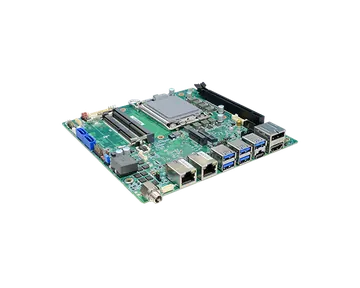

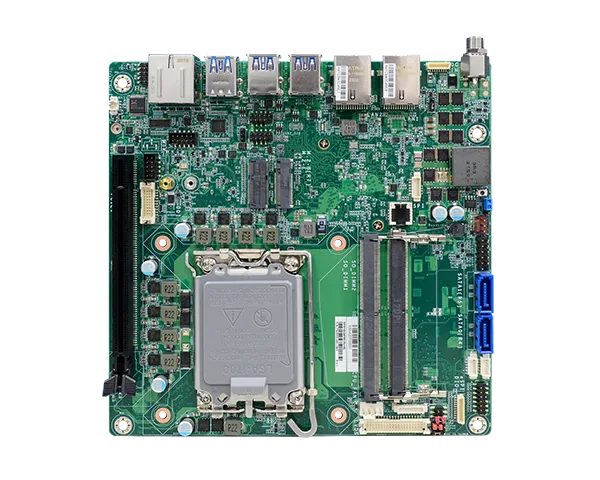

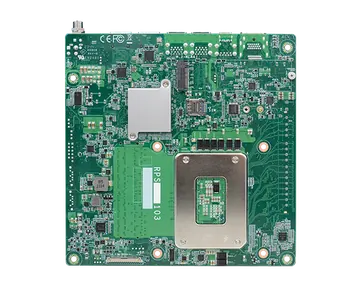

RPS101/RPS103

Mini-ITX, BTL-S/14th/13th/12th Gen Intel® Core™, 2 DDR5 SODIMM, 1 PCIe x16, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key, 1 DP++, 1 HDMI, 1 USB Type C, 1 LVDS/eDP, 1 DFI display extension port, 2 Intel 2.5GbE , 2 COM, 6 USB 3.2 Gen2, 4 USB 2.0, 2 SATA 3.0

  • BTL-S/14th/13th/12th Generation Intel® Core™ Processors
  • 2 DDR5 5600MHz SODIMM up to 64GB
  • Supports 4 independent displays: 1 DP++, 1 HDMI, 1 USB Type C, 1 LVDS/eDP, 1 DFI display extension port (DP/HDMI/VGA available)
  • Supports up to 4K resolution
  • Multiple expansion: 1 PCIe x16, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key

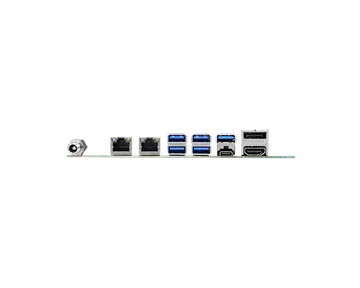

  • Rich I/O: 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen2, 4 USB 2.0, 2 SATA 3.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
  • Support EXT-OOB (Full)
KaphatóLaunched
4K2K Display
PCIe x16
Quad Independent Display
DDR5
Rich I/O
10 Years CPU Life Cycle Support
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
#12th Gen Intel® Core™ Processor #DDR5 #13th Gen Intel® Core™ Processor #Windows 10 #Edge AI Computing #M.2 #12-28V DC-in #EXT-OOB (Full) #Intel® Bartlett Lake-S Processors #14th Gen Intel® Core™ Processor #Windows 11 #Intel #SIM Slot #4K2K Display #PCIe x16 #Windows #Linux #12V DC-in #RoHS Certification #CE Certification #FCC Certification #2.5G Ethernet #UKCA Certification

Főbb jellemzőkKey features

  • BTL-S/14th/13th/12th Generation Intel® Core™ Processors
  • 2 DDR5 5600MHz SODIMM up to 64GB
  • Supports 4 independent displays: 1 DP++, 1 HDMI, 1 USB Type C, 1 LVDS/eDP, 1 DFI display extension port (DP/HDMI/VGA available)
  • Supports up to 4K resolution
  • Multiple expansion: 1 PCIe x16, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key
  • Rich I/O: 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen2, 4 USB 2.0, 2 SATA 3.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
  • Support EXT-OOB (Full)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
