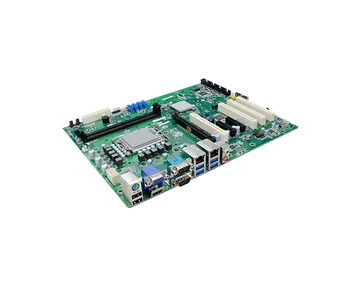

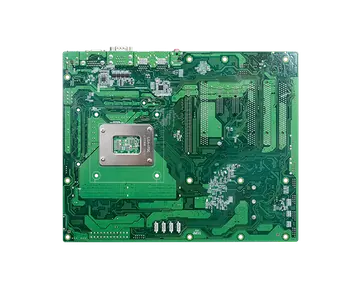

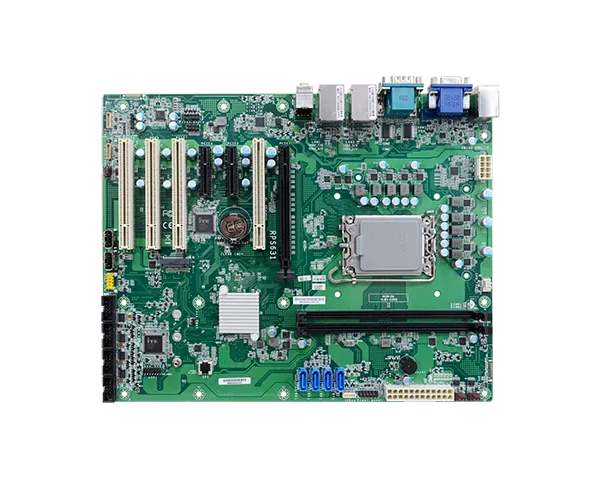

RPS631-H610
ATX, BTL-S/14th/13th/12th Gen Intel® Core™, 2 DDR5 UDIMM, 1 PCIe x16, 2 PCIe x4, 4 PCI, 1 M.2 M key, 1 VGA, 1 HDMI, 1 Intel 2.5GbE, 1 Intel 1GbE, 4 USB 3.2 Gen1, 6 USB 2.0, 4 SATA 3.0, 6 COM, -5 to 65°C
- BTL-S/14th/13th/12th Gen Intel® Core Processors
- 2 DDR5 UDIMM up to 96GB
- Dual Displays: VGA, HDMI
- Supports 4K High Resolution
- Multiple Expansion: 1 PCIe x16, 2 PCIe x4, 4 PCI, 1 M.2 M key
- Rich I/O: 1 Intel 2.5GbE, 1 Intel 1GbE, 4 USB 3.2 Gen1, 6 USB 2.0, 4 SATA 3.0, 6 COM
- Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#DDR5
#13th Gen Intel® Core™ Processor
#Windows 10
#Edge AI Computing
#Intel® Bartlett Lake-S Processors
#14th Gen Intel® Core™ Processor
#IoT
#Windows 11
#Intel
#4K2K Display
#1G Ethernet
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#Multiple Expansion
#12V DC-in
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- BTL-S/14th/13th/12th Gen Intel® Core Processors
- 2 DDR5 UDIMM up to 96GB
- Dual Displays: VGA, HDMI
- Supports 4K High Resolution
- Multiple Expansion: 1 PCIe x16, 2 PCIe x4, 4 PCI, 1 M.2 M key
- Rich I/O: 1 Intel 2.5GbE, 1 Intel 1GbE, 4 USB 3.2 Gen1, 6 USB 2.0, 4 SATA 3.0, 6 COM
- Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Bartlett Lake-S P-Core Only LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ 9 273PQE (12 Cores, 36M Cache, up to 5.9 GHz); 125W Intel® Core™ 9 273PE (12 Cores, 36M Cache, up to 5.7 GHz); 65W Intel® Core™ 9 273PTE (12 Cores, 36M Cache, up to 5.5 GHz); 45W Intel® Core™ 7 253PQE (10 Cores, 33M Cache, up to 5.7 GHz); 125W Intel® Core™ 7 253PE (10 Cores, 33M Cache, up to 5.5 GHz); 65W Intel® Core™ 7 253PTE (10 Cores, 33M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 223PQE (8 Cores, 24M Cache, up to 5.5 GHz); 125W Intel® Core™ 5 223PE (8 Cores, 24M Cache, up to 5.4 GHz); 65W Intel® Core™ 5 223PTE (8 Cores, 24M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 213PE (8 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 213PTE (8 Cores, 24M Cache, up to 5.2 GHz); 45W Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W 14th Generation P-Core Only Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ i9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ i9-14901TE (8 Cores, 36M Cache, up to 5.5 GHz); 45W Intel® Core™ i7-14701E (8 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ i7-14701TE (8 Cores, 33M Cache, up to 5.2 GHz); 45W Intel® Core™ i5-14501E (6 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ i5-14501TE (6 Cores, 24M Cache, up to 5.1 GHz); 45W Intel® Core™ i5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W Intel® Core™ i5-14401TE (6 Cores, 24M Cache, up to 4.5 GHz); 45W 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 60W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- Intel® H610 Chipset
- Memory
- Two 288-pin UDIMM up to 96GB (Non-ECC) Dual Channel DDR5 up to 5600 MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x HDMI 2.0a VGA: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz
Expansion
- Interface
- 1 x PCIe x16 (Gen 4) －Support PCIE1 : Riser card x16 or x8/x8 selected by BOM change 2 x PCIe x4 (Gen 3, x2) 4 x PCI 1 x M.2 M key (PCIe x2 NVMe)
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- 1 x Intel® I226V 1 x Intel® I219V

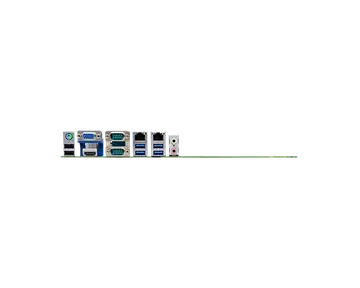

Rear I/O
- Ethernet
- 1 x 2.5GbE (RJ-45) 1 x 1GbE (RJ-45)
- Serial
- 2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 4 x USB 3.2 Gen 1 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt.)
Internal I/O
- Serial
- 4 x RS-232
- USB
- 2 x USB 2.0 Type A 2 x USB 2.0 (2.54mm pitch, colay vertical Type A, opt.: MOQ required)
- Audio
- 1 x Front Audio 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s)
- DIO
- 4-IN / 8-OUT DIO
- SMBus
- 1 x SMBus
- eSPI
- 1 x eSPI
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM2.0
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i9-12900K: 3.3V @ 0.4A (1.32W); 5V @ 0.85A (4.25W); 12V @ 1.09A (13.08W) Max.: i9-12900K: 3.3V @ 0.63A (2.08W); 5V @ 3.02A (15.1W); 12V @ 26.39A (316.68W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 LTSC
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -20 to 70°C with RTC Battery; -40 to 85°C without RTC Battery
- Humidity
- Operating: 5 to 95% RH Storage: 5 to 95% RH
- MTBF
- 265,554 hrs @ 25°C; 173,101 hrs @ 40°C; 98,534 hrs @ 60°C; 74,966 hrs @ 70°C Calculation Model: Telcordia Issue 2 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 33.3mm Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC Class B, UKCA, RoHS, KC
Packing List
- Packing List
- 1 RPS631 motherboard 1 COM port cables (Length: 300mm, 2 x COM ports) 1 Serial ATA data cable (Length: 500mm) 1 I/O shield 1 M.2 screw/standoff
Country of Origin
- Country of Origin
- China
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RPS631-H610 | 770-RPS6311-000G | 2 DDR5 UDIMM, 1 1GbE, 1 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen1, 6 USB 2.0, 1 TPM 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350/398mm |
| USB 3.2 Gen1 port cable | A81-001196-023G | Length: 320mm |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G A81-002128-017G | Length: 500mm, W/LOCK Length: 500mm, W/LOCK, 90D |
| Thermal solution | A71-101136-000G A71-101137-000G A71-101145-000G | For 35W, Height: 29.39mm For 65W, Height: 46mm For 95W/125W, Height: 110mm |
| DP to HDMI Dongle | 612-D2H13M-000G | |
| M.2-COM4 | 770-M2COM1-000G | M.2 serial port module |
| M.2-2LAN | 770-M22LN2-000G | M.2 LAN port module |
| M.2-2PSE | 770-M22PS2-000G | M.2 PSE module |
