PICMG COM HPC® R1.3, Mini, Intel® Core™ Ultra Series 3 Processors , LPDDR5, 2 DDI, 1 eDP, 8 PCIe x1 (Gen4), 1 PCIe x4 (Gen5) or 2 PCIe x4, 2 Intel 2.5GbE, 4 USB 3.2, Supports 8K/4K resolution

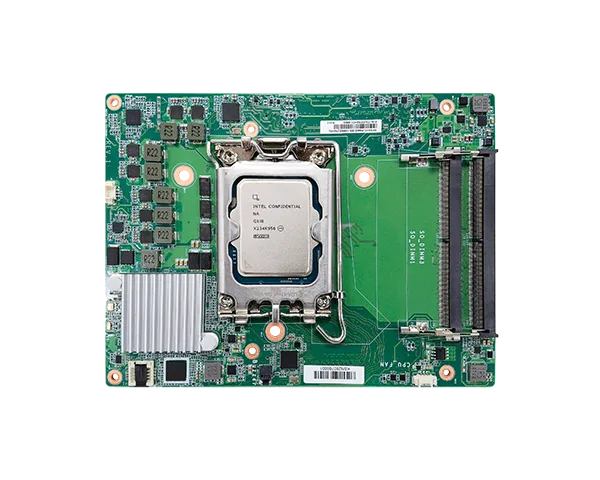

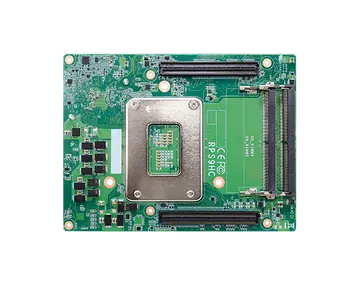

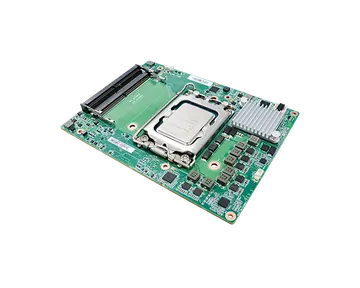

RPS9HC-R680E/Q670E/H610E
COM HPC® R1.15, Client Size C, BTL-S/14th/13th Gen Intel® Core™, DDR5, 1 PCIe x16 (Gen5), 4 PCIe x4 (Gen4), 2 PCIe x4 (Gen3), 2 PCIe x1 (Gen3), 2 Intel 2.5GbE, 6 USB 3.2 Gen2, 8 USB 2.0, 1 eDP + 3 DDI, 8K Resolution
- BTL-S/14th/13th Gen Intel® Core™ with Intel® R680E/Q670E/H610E Chipset
- 4 DDR5 SODIMM 3600MHz up to 192GB
- Quad Displays: eDP + 3 DDI
- DDI supports up to 8K
- Multiple Expansion: 1 PCIe x16 (Gen5), 4 PCIe x4 (Gen4), 2 PCIe x4 (Gen3), 2 PCIe x1 (Gen3)
- Rich I/O: 2 Intel 2.5GbE, 6 USB 3.2 Gen2, 8 USB 2.0
- Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.
Főbb jellemzők
Tanúsítványok
#8K resolution
#DDR5
#13th Gen Intel® Core™ Processor
#Windows 10
#Edge AI Computing
#eDP
#Slim Bootloader
#Intel® Bartlett Lake-S Processors
#14th Gen Intel® Core™ Processor
#IoT
#Windows 11
#Intel
#PCIe x16
#Windows
#Linux
#HDMI
#DP
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- BTL-S/14th/13th Gen Intel® Core™ with Intel® R680E/Q670E/H610E Chipset
- 4 DDR5 SODIMM 3600MHz up to 192GB
- Quad Displays: eDP + 3 DDI
- DDI supports up to 8K
- Multiple Expansion: 1 PCIe x16 (Gen5), 4 PCIe x4 (Gen4), 2 PCIe x4 (Gen3), 2 PCIe x1 (Gen3)
- Rich I/O: 2 Intel 2.5GbE, 6 USB 3.2 Gen2, 8 USB 2.0
- Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.
System
- Processor
- Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ 5 211EF (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W Intel® Core™ 3 201EF (4 Cores, 12M Cache, up to 4.8 GHz); 60W Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W 14th Gen Intel® Core™ Processors, LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W 13th Gen Intel® Core™ Processors, LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
- Chipset
- Intel® R680E/Q670E/H610E Chipset
- Memory
- 4pcs DDR5 SO-DIMM up to 192GB Dual Channel DDR5 ECC support by R680 with i7 and i5
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 3 x DDI (HDMI/DP++) support to 8K 1 x eDP support to 5K
- Quad Displays
- eDP + 3 DDI
Expansion
- Interface
- 1 x PCIe x16 (Gen5) 4 x PCIe x4 (Gen4) 2 x PCIe x4 (Gen3) 2 x PCIe x1 (Gen3) 1 x eSPI 1 x I2C 1 x SMBus 2 x UART (TX/RX/RTS/CTS)
Audio
- Audio Codec
- HD Audio
Ethernet
- PHY
- 2 x Intel® I226 series (10/100/1000Mbps/2.5G)
I/O
- USB
- 4 x USB 3.2 Gen2 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- GPIO
- 12 bit in/out
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM2.0 (Available Upon Request)
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- Typical: 12V @2.7A (32.4Watt) Max: 12V @24.2A (290.4Watt)
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11
- Linux
- Ubuntu 20.04
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM HPC® Client Size C 6.30" x 4.72" (160mm x 120mm)
- Compliance
- PICMG COM HPC® R1.15, Client Size C
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- • COM836 carrier board kit, 770-COM8361-000G
Country of Origin
- Country of Origin
- Taiwan
