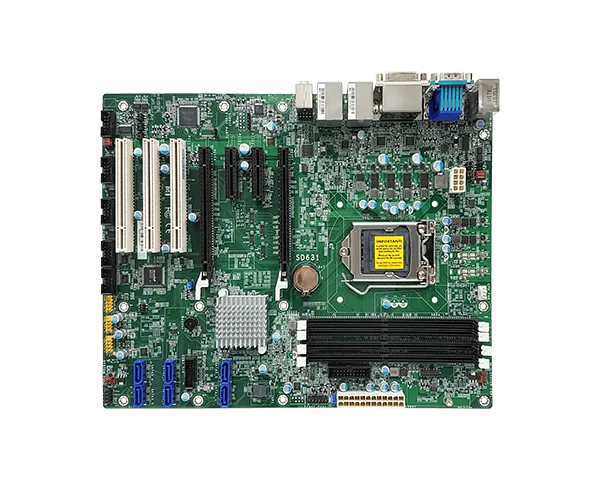

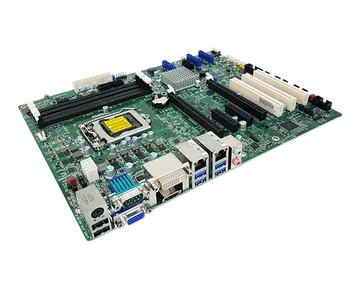

SD631-C236
ATX, 6th/7th Gen Intel® Core™, Intel® C236, 4 DDR4, 2 PCIe x16, 2 PCIe x4, 3 PCI, 1 LPC, 1 VGA, 1 DVI-I, 1 HDMI
- 6th/7th Gen Intel® Core™ with Intel® C236
- Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.0, 8 USB 2.0
- Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 3 PCI, 1 LPC
- 3 independent displays: VGA + DVI-I (DVI-D signal) + HDMI
- 4 DDR4 ECC DIMM up to 64GB
- 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#4K2K Display
#PCIe x16
#Windows
#Linux
#HDMI
#DVI-I
#DVI-D
#VGA
#Multiple Expansion
#DDR4
#RoHS Certification
#UL Certification
#CE Certification
#FCC Certification
#Legacy ISA/PCI Expansion Port
Főbb jellemzőkKey features
- 6th/7th Gen Intel® Core™ with Intel® C236
- Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.0, 8 USB 2.0
- Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 3 PCI, 1 LPC
- 3 independent displays: VGA + DVI-I (DVI-D signal) + HDMI
- 4 DDR4 ECC DIMM up to 64GB
- 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
System
- Processor
- 6th/7th Generation Intel® /Xeon Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
- Chipset
- Intel® C236 Chipset
- Memory
- Four 288-pin ECC DIMM up to 64GB (Core™ i5/i7 only support non-ECC) Dual Channel DDR4 2133/2400MHz
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI VGA: resolution up to 1920x1200 @ 60Hz DVI-I: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz
- Triple Displays
- VGA + DVI-I (DVI-D signal) + HDMI
Expansion
- Interface
- 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3) 2 x PCIe x4 (Gen 3) 3 x PCI
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Xeon Core i7/i5 supports iAMT)
Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 4 x USB 3.0 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI
- Audio
- 1 x Line-in (opt., MOQ required) 1 x Line-out 1 x Mic-in
Internal I/O
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch)
- USB
- 2 x USB 3.0 (2.00mm pitch) 6 x USB 2.0 (2.54mm pitch) or 4 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)
- Audio
- 1 x S/PDIF
- SATA
- 6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- DIO
- 1 x 8-bit DIO
- LPC
- 1 x LPC (supports LPC EXT-RS232/RS485 module)
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- opt., MOQ required
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: Xeon 80W: 12V @ 2.83A (34.02Watt) Max.: Xeon 80W: 12V @ 7.23A (86.78Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Windows 7 32/64-bit Window 8.1 64-bit Windows 10 64-bit Linux Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.
Environment
- Temperature
- Operating: 0 to 60°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 367,369 hrs @ 25°C; 208,834 hrs @ 45°C; 131,021 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 31.47 mm Bottom Side: 4.40 mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UL
Packing List
- Packing List
- 1 SD631-C236 motherboard 1 COM port cables (Length: 400mm, 2 x COM ports) A81-015012-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 I/O shield A49-SD6300-001G 643-KD0000-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| SD631-C236CRM | 770-SD6314-100G | 4 DDR4 DIMM, 2 LAN, 6 COM, 14 USB, Super IO NCT6106D, 0 to 60°C |
| SD631-C236CRM | 770-SD6314-300G | 4 DDR4 DIMM, 2 LAN, 6 COM, 14 USB, Super IO NCT6106D, 1 TPM 2.0, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| LPC EXT-RS485 module | 770-EXTRS1-100G | 4 x RS485 ports |
| Thermal solution | A71-103004-000G A71-101158-000G 761-103001-000G | For 35W, Height: 37.3mm For 65W, Height: 74.47mm For 95W, Height: 77.2mm |
| Serial ATA data cable | 332-553001-005G | Length: 500mm |
| COM port cable | A81-015012-001G | Length: 400mm, 2 x COM ports |
| USB 3.0 port cable | A81-001052-023G | Length: 320mm |
| USB 2.0 port cable | A81-001066-016G | Length: 350mm |
| LPC EXT-RS232 module | 770-EXTRS1-000G | 4 x RS232 ports |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
