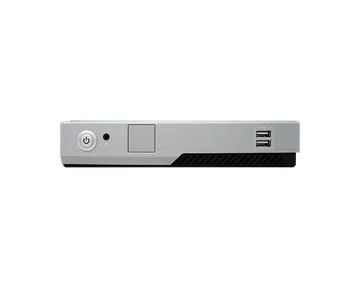

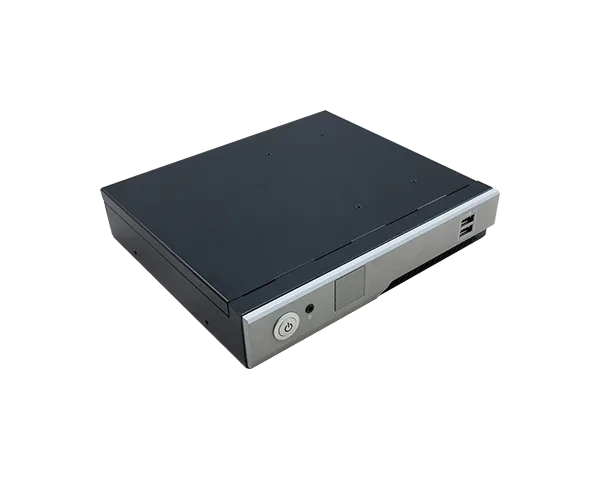

SF101-PTH
Fanless Box IPC, Intel® Core™ Ultra Panther Lake H Processor, DDR5, HDMI + DP + USB Type C (DP alt-mode/USB3.2 Gen2/ PD 15W), 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key, RAID/NVME, 3 2.5GbE, 4 USB 3.2 Gen2 Type A, 1 USB 2.0 Type A, 2 USB 2.0, 2 COM, 1 Grounding Post, -5°C ~ 45°C, Front 1.3" Touch LCD
- Intel® Core™ Ultra Panther Lake H Processor, TDP up to 25W
- 2 DDR5 6400MHz SODIMM up to 128GB
- Quad Displays: HDMI + DP + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
- 3 M.2 expansions
- Front 1.3" Touch LCD showing Local System Information (opt.)
- 2 NVME SSD for RAID0/1 + 1x 2.5" SATA storage (opt. 2nd NVME SSD)
- Operating temperature : -5 to 45°C
Főbb jellemzők
Tanúsítványok
#M.2
#12-28V DC-in
#Intel Panther Lake H processor
#Intel® Core™ Ultra processors
#Intel
#Compact PC
#Fanless Design
#Compact Size
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ Ultra Panther Lake H Processor, TDP up to 25W
- 2 DDR5 6400MHz SODIMM up to 128GB
- Quad Displays: HDMI + DP + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
- 3 M.2 expansions
- Front 1.3" Touch LCD showing Local System Information (opt.)
- 2 NVME SSD for RAID0/1 + 1x 2.5" SATA storage (opt. 2nd NVME SSD)
- Operating temperature : -5 to 45°C
System
- Processor
- Intel Panther Lake H processor, TDP up to 25W Intel® Core™ Ultra 9 388H (H484-12XeCT, vPro) Intel® Core™ Ultra X7 358HR (H484-12XeCT, vPro) Intel® Core™ Ultra 7 366HRE (484-4XeET, vPro) Intel® Core™ Ultra 7 365RE (404-4XeET, vPro) Intel® Core™ Ultra 5 336HRE (444-4XeET, vPro) Intel® Core™ Ultra 5 335RE (404-4XeET, vPro)
- Memory
- 2x 262-pin SODIMM up to 128GB Dual-channel SODIMM DDR5 up to 6400 MHz (H404)/7200 MHz (H484)
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® Arc Xe3
- Display
- 1 x HDMI 1 x DP++ HDMI: resolution up to 4096x2160 @60Hz DP: resolution up to 4096x2304 @60Hz USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W): resolution up to 4096x2304 @60Hz (HBR2)
- Quad Displays
- HDMI + DP + USB Type C (DP alt-mode/USB3.2 Gen2/ PD 15W)
Storage
- External/Internal
- 1 x 2.5" SATA bay 1 x M.2 2242/2280 M Key (PCIE Gen5x4, SATA3 opt. selected by BIOS, support NVMe ) RAID 0/1
Expansion
- Interface
- 1 x M.2 2242/2280 M Key (PCIE Gen5x4, SATA3 opt. selected by BIOS, support NVMe ) 1 x M.2 2242/3042/3052 B Key (PCIE Gen4x1, USB3.2 Gen2, USB2.0, SIM) 1 x M.2 2230 E Key (PCIE Gen4x1 and USB2.0, support Intel® CNVi,WIFI7)
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- LAN1/2: i226V/IT (10/100/1000/2.5G speeds) LAN3(vPro): i226LM/IT (10/100/1000/2.5G speeds)
LED
- Indicators
- 1 x Power LED 1 x HDD LED
Front I/O
- USB
- 2 x USB 2.0
- Buttons
- 1 x Power Button
Rear I/O
- Ethernet
- 3 x 2.5GbE RJ45
- Serial
- 2 x COM
- USB
- 4 x USB 3.2 Gen2 Type A 1 x USB 2.0 Type A 1 x USB 3.2 Gen 2 Type C (DP alt-mode/USB3.2 Gen 2/PD 15W)
- Display
- 1 x HDMI 2.0 1 x DP++
- Audio
- 1 x line-out
- Grouding
- 1 x Grounding Post
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM (default) fTPM (option)
Power
- Type
- Wide Range 12~28VDC
- Connector
- DC Jack
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 11 24H2 LTSC 64-bit
- Linux
- Ubuntu 24.04
Environment
- Temperature
- Operating: -5°C ~ 45°C Storage: -40°C ~ 85°C
- Humidity
- Operating: 5% ~ 90% RH Storage: 5% ~ 90% RH
Mechanism
- Construction
- Metal chassis + Aluminum front bezel
- Mounting
- Wall mount Rackmount
- Dimensions (W x H x D)
- 220 x 43 x 197.2mm
- Weight
- 2.55kg
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G
- Certifications
- CE, FCC class A, RoHS, UKCA
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| Mounting Kit | A31-028Q25-100G | Wallmount Brackets |
