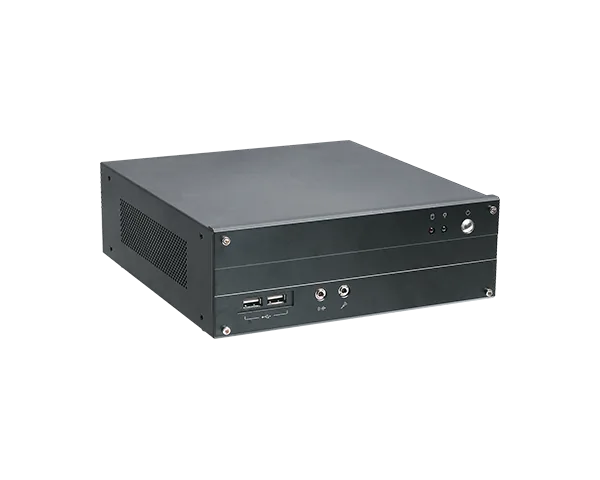

ST102-CS
Desktop Box PC, 8th/9th Gen Intel® Core™, DDR4, 6 USB, 1 HDMI, 2 DPP+
- 8th/9th Gen Intel® Core™ Processor
- 2DDR4 2666MHz SODIMM up to 32G
- 1x 2.5" SATA drive bay, 1x optional slim ODD bay
- 2 LAN, 6 USB
- 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#1G Ethernet
#Windows
#HDMI
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 8th/9th Gen Intel® Core™ Processor
- 2DDR4 2666MHz SODIMM up to 32G
- 1x 2.5" SATA drive bay, 1x optional slim ODD bay
- 2 LAN, 6 USB
- 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
System
- Processor
- 8th/9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 35W Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W) Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W) Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W) 8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 35W Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W) Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W) Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W) Intel® Celeron G4900T Processor (Core 2; Max speed 2.9 GHz; TDP 35W)
- Chipset
- Intel® H310/Q370 Chipset
- Memory
- Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2666MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610)
- Feature
- OpenGL 4.4, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x LVDS/eDP (eDP available upon request) 1 x HDMI 2 x DP++ LVDS: resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 60Hz DP1.2: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- 2DP++ & 1HDMI
Storage
- External/Internal
- 1x 2.5" SATA bay, anti-vibration
Expansion
- Interface
- 1 x Full-Size mini PCIe for mSATA 1 x m.2 2280 mKey (PCIe x 4/SATA) Support NVme and Intel Optane memory 1 x m.2 2230 Ekey (USB/PCIe)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

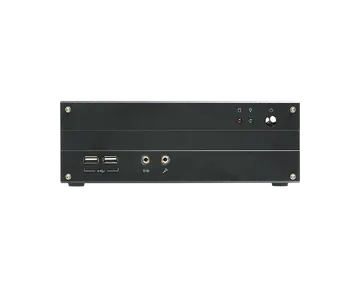

Front I/O
- USB
- 2 x USB 2.0 (X100-USB2)
- Audio
- 1 x Line-out 1 x Mic-in (via cable to external interface from on board pin-header)
- Buttons
- 1 x Power Button

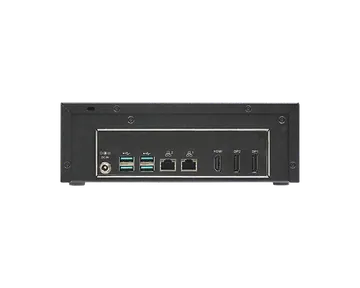

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 4 x USB 3.1
- Display
- 2 x DP++ 1 x HDMI
- Antenna
- 2 x antenna opening
Cooling
- Fan
- 1 x System Fan 1 x CPU Fan
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V
- Connector
- DC Jack
OS Support
- OS Support
- Windows 10 IoT Enterprise
Environment
- Operating Temperature
- -5 to 55°C The configuration with i3 CPU throttles may occur
- Storage Temperature
- -20 to 70°C The configuration with i3 CPU throttles may occur
- Relative Humidity
- Operating: 10 to 85% (non-condensing) Storage: 10% to 90% (non-condensing)
Mechanism
- Construction
- Metal chassis + Aluminum front bezel Kensington lock
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 219mm x 75.15mm x 229.7mm (without of stand holder)
- Weight
- 2.55kg
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC class B, RoHS, UKCA
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ST102-CS | 750-ST1021-000G | ST102-CS: CS101-Q370 W/TPM, F/G System RoHS |
| ST102-CS | 750-ST1021-100G | ST102-CS: CS101-H310 W/TPM, F/G System RoHS |
| ST102-CS | 750-ST1021-200G | ST102-CS: CS101-Q370 W/TPM, slim ODD, F/G System RoHS |
| ST102-CS | 750-ST1021-300G | ST102-CS: CS101-H310 W/TPM, slim ODD, F/G System RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| CPU | 143-101805-500G 143-10220G-500G 143-10220E-500G 143-10240A-500G 143-102104-501G 143-103105-500G | i7-9700TE, 1.8GHz to 3.8GHz, 8C8T, 12M cache, TDP 35W i5-9500TE, 2.2GHz to 3.6GHz, 6C6T, 9M cache, TDP 35W i3-9100TE, 2.2GHz to 3.2GHz, 4C4T, 6M cache, TDP 35W i7-8700T, 2.4GHz to 4GHz, 6C12T, 12M cache, TDP 35W i5-8500T, 2.1GHz to 3.5GHz, 6C6T, 9M cache, TDP 35W i3-8100T, 3.1GHz, 4C4T, 6M cache, TDP 35W |
| DIMM | 138-540002-106G 138-580004-102G 138-5G0163-102G | 4GB DDR4 2666Mhz SO-DIMM 1Rx8 512Mx8 CL19 1.2V 8GB DDR4 2666Mhz SO-DIMM 1Rx8 1Gx8 CL19 1.2V 16GB DDR4 2666Mhz SO-DIMM 2Rx8 1Gx8 CL19 1.2V |
| SSD M.2 2280 | 638-712811-100G 638-725615-100G 638-712818-100G 638-725614-100G 638-701T01-100G 638-712816-110G 638-725608-100G 785-M264GT80 785-M2128GT80 785-M2256GT80 785-M2512GT80 785-M21TBT80 | 128GB, M.2 2280 SSD, SATA3 B+M Key, MLC 256GB, M.2 2280 SSD, SATA3 B+M Key, MLC 128GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K 256GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K 1TB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K 128GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K 256GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K M.2 2280, 64GB, TLC M.2 2280, 128GB, TLC M.2 2280, 256GB, TLC M.2 2280, 512GB, TLC M.2 2280, 1TB, TLC |
| HDD 2.5" | 635-550092-090G 635-500100-220G 635-500111-000G 785-H25500G 785-H251TB | 2.5" SATAIII 500GB 5400RPM 128MB BLUE 2.5" SATAIII 1TB 5400RPM 128MB BLUE 2.5" SATAIII 1TB 7200RPM 64MB BLACK 2.5” SATA HDD, 500GB, RoHS 2.5” SATA HDD, 1TB, RoHS |
| SSD 2.5" | 635-600322-1A0G 635-600644-100G 635-601282-1E0G 635-602562-121G 635-605122-130G 635-601286-110G 635-602566-150G 635-605126-140G 635-610006-110G | 32GB, 2.5" SSD, SATA3, MLC 64GB, 2.5" SSD, SATA3, MLC 128GB, 2.5" SSD, SATA3, MLC 256GB, 2.5" SSD, SATA3, MLC 512GB, 2.5" SSD, SATA3, MLC 128GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K 256GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K 512GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K 1TB, 2.5" SSD, SATA3, 3D TLC, PE: 3K |
| OS | 921-151310-000G 921-151320-000G 921-151340-000G 921-151330-000G 642-000W10-000G | Win10 IoT Ent 2019 LTSC MultiLang High End EPKEA Win10 IoT Ent 2019 LTSC MultiLang High End PKEA Win10 IoT Ent 2019 LTSC MultiLang High Value EPKEA Win10 IoT Ent 2019 LTSC MultiLang High Value PKEA Win Pro 10 64Bit English 1pk DSP OEI DVD version 1809 |
| Adapter AC/DC | 671-110006-100G | Power Adapter AC/DC 100W 12V, inlet C14, lockable DC Jack 5.5/2.5mm, cable length 1500mm, with DFI-JP PSE |
| Power Cord | 332-700010-201G A81-004003-000G A81-000001-000G A81-004056-000G | Power Cord US 3pin 1830mm Length Power Cord EU 2pin 1830mm Length Power Cord China 3pin 1830mm Length Power Cord Japan 3pin 2000mm Length |

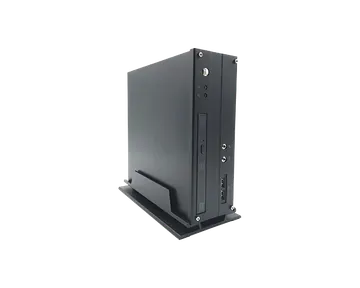

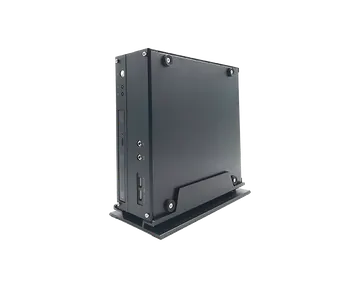

| Foot Stand | A31-027042-210G | ST102 support frame, AL BLACK |
| SSD mSATA | 785-MS128GTF 785-MS256GTF 785-MS512GTF 785-MS1TTF | mSATA Card, 128GB 3D TLC, RoHS mSATA Card, 256GB 3D TLC, RoHS mSATA Card, 512GB 3D TLC, RoHS mSATA Card, 1TB 3D TLC, RoHS |
| M.2 WIFI | 761-OPS150-001G 761-EC7003-300G | 1 x intel M.2 2230 AC 3168.NGWG 802.11abgn/ac 1T1R + Bluetooth 4.2; 2 x MHF4 to SMA cable 200mm; 2 x dipole antenna; 1 x M2x4mm screw 1 x Intel® Wireless-AC 9260, 2230, 2x2 AC+BT, Gigabit; 2 x MHF4 to SMA cable 200mm; 2 x dipole antenna; 1 x M2x4mm screw |
