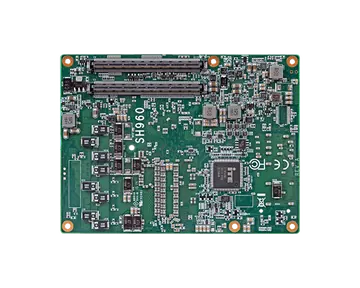

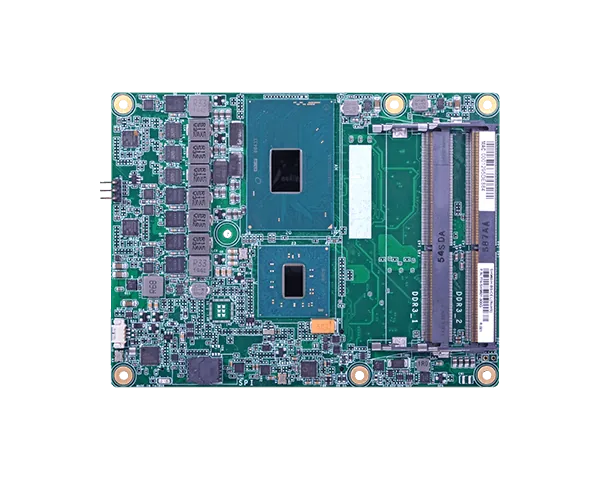

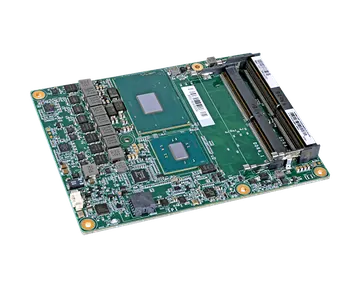

SH960-CM236/QM170
COM Express Type 6, 6th Gen Intel® Core™, Intel® CM236/QM170, DDR4, 1 PCIe x16, 12 USB, 4 SATA 3.0, 1 VGA, 1 LVDS, 2 DDI
- 6th Gen Intel® Core™, Intel® CM236/QM170 Chipset
- Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
- Multiple expansion: 1 PCIe x16, 8 PCIe x1
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
- Dual channel DDR4 2133MHz SODIMM up to 32GB
- 15-Year CPU Life Cycle Support Until Q1' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#4K2K Display
#1G Ethernet
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 6th Gen Intel® Core™, Intel® CM236/QM170 Chipset
- Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
- Multiple expansion: 1 PCIe x16, 8 PCIe x1
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
- Dual channel DDR4 2133MHz SODIMM up to 32GB
- 15-Year CPU Life Cycle Support Until Q1' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- 6th Generation Intel® Core™ Processors, BGA 1440 Intel® Xeon® E3-1515M v5 Processor, Quad Core, 8M Cache, 2.8GHz (3.7GHz), 45W (Support ECC) Intel® Core™ i7-6820EQ Processor, Quad Core, 8M Cache, 2.8GHz (3.5GHz), 45W Intel® Core™ i7-6822EQ Processor, Quad Core, 8M Cache, 2.0GHz (2.8GHz), 25W Intel® Core™ i5-6440EQ Processor, Quad Core, 6M Cache, 2.7GHz (3.4GHz), 45W Intel® Core™ i5-6442EQ Processor, Quad Core, 6M Cache, 1.9GHz (2.7GHz), 25W Intel® Core™ i3-6100E Processor, Dual Core, 3M Cache, 2.7GHz, 35W (Support ECC) Intel® Core™ i3-6102E Processor, Dual Core, 3M Cache, 1.9GHz, 25W (Support ECC) Intel® Celeron® Processor G3900E, Dual Core, 2M Cache, 2.4GHz, 35W (Support ECC) Intel® Celeron® Processor G3902E, Dual Core, 2M Cache, 1.6GHz, 25W (Support ECC)
- Chipset
- Intel® CM236 Chipset (Support ECC) Intel® QM170 Chipset
- Memory
- Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2133MHz
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL up to 4.4, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 2 x DDI (HDMI/DVI/DP++) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz DVI: resolution up to 1920x1200 @ 60Hz DP++/eDP: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + LVDS + DDI or VGA + DDI1 + DDI2 eDP + 2 DDI (available upon request)
Expansion
- Interface
- 1 x PCIe x16 or 2 x PCIe x8 (Gen 3) 8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)
I/O
- USB
- 4 x USB 3.0 8 x USB 2.0
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- Typical: i7-6820EQ: 12V @ 2.39A (28.62Watt) Max.: i7-6820EQ:12V @ 5.84A (70.10Watt)
OS Support
- OS Support
- Windows 8.1 64-bit Windows 7 (/WES7) 32/64-bit Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 663,394hrs @ 25°C; 334,612 hrs @ 45°C; 193,307 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Basic 95mm (3.74") x 125mm (4.9")
- Compliance
- PICMG COM Express® R2.1, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 SH960-CM236/QM170 board 1 Cooler (Height: 36.58mm): (Standard) A71-111026-000G or 1 Heat spreader (Height: 11mm): A71-011073-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| SH960-CM236BS-1515M | 770-SH9604-D00G | Cooler, Intel Xeon E3-1515M v5, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| SH960-QM170TS-6820EQ | 770-SH9604-A00G | Heat Spreader, Intel Core i7-6820EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C |
| SH960-CM236BS-6100E | 770-SH9604-E00G | Cooler, Intel Core i3-6100E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| SH960-CM236BS-3900E | 770-SH9604-F00G | Cooler, Intel Celeron G3900E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| SH960-QM170BS-6440EQ | 770-SH9604-600G | Cooler, Intel Core i5-6440EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| SH960-QM170BS-6820EQ | 770-SH9604-400G | Cooler, Intel Core i7-6820EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| SH960-QM170BS-6822EQ | 770-SH9604-500G | Cooler, Intel Core i7-6822EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| SH960-QM170BS-6442EQ | 770-SH9604-700G | Cooler, Intel Core i5-6442EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM332-B carrier board kit | 770-CM3321-000G | |
| Heat spreader | A71-011073-000G | Height: 11mm |
| Cooler | (Wide-Temp) A71-111040-000G | Height: 45.3mm |
