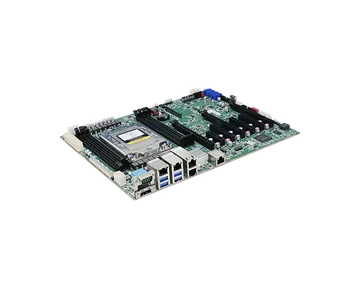

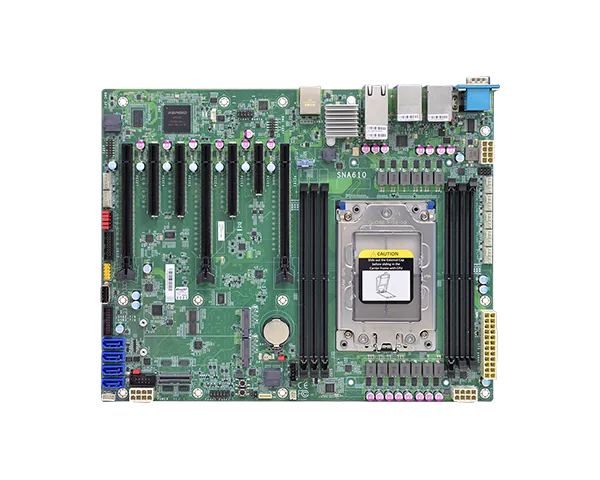

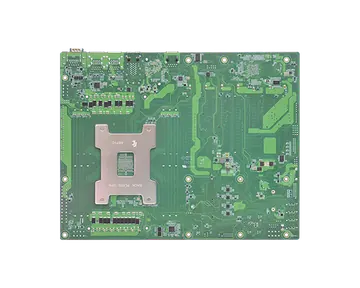

SNA610
ATX, AMD EPYC™ 8004 processors, DDR5, DP, 3 PCIe x16, 3 PCIe x8, 1 PCIe x4, 2 M.2 M key 2280, 2 GbE + 2 10GbE, 1 Dedicated IPMI LAN, 6 USB 3.2 Gen1, 2 USB 2.0, 2 COM, 1 Vertical USB 2.0
- AMD EPYC™ 8004 processors
- 6 DDR5 ECC-RDIMM up to 576GB
- Single Display: DP
- Supports 4K high resolution
- Multiple Expansion: 3 PCIe x16 (Gen5), 3 PCIe x8 (Gen5), 1 PCIe x4 (Gen5), 2 M.2 M key 2280
- Rich I/O: 2 GbE + 2 10GbE, 1 Dedicated IPMI LAN, 6 USB 3.2 Gen1, 2 USB 2.0, 2 COM, 1 Vertical USB 2.0
- IPMI/Redfish OOB Remote Management
Főbb jellemzők
#DDR5
#AMD EPYC™ 8004 processors
#AMD
#4K2K Display
#1G Ethernet
#PCIe x16
#DP
#Multiple Expansion
#10G Ethernet
Főbb jellemzőkKey features
- AMD EPYC™ 8004 processors
- 6 DDR5 ECC-RDIMM up to 576GB
- Single Display: DP
- Supports 4K high resolution
- Multiple Expansion: 3 PCIe x16 (Gen5), 3 PCIe x8 (Gen5), 1 PCIe x4 (Gen5), 2 M.2 M key 2280
- Rich I/O: 2 GbE + 2 10GbE, 1 Dedicated IPMI LAN, 6 USB 3.2 Gen1, 2 USB 2.0, 2 COM, 1 Vertical USB 2.0
- IPMI/Redfish OOB Remote Management
System
- Processor
- AMD EPYC™ 8004 processors LGA4844, TDP upto 225W: AMD EPYC™ 8534P (64 cores, up to 3.1GHz); 200W AMD EPYC™ 8434P (48 cores, up to 3.1GHz); 200W AMD EPYC™ 8324P (32 cores, up to 3.0GHz); 180W AMD EPYC™ 8224P (24 cores, up to 3.0GHz); 160W AMD EPYC™ 8124P (16 cores, up to 3.0GHz); 125W
- Memory
- 6 x ECC-RDIMM up to 576GB DDR5 Max. 4800MHz
- BIOS
- Insyde
Graphics
- Controller
- BMC AST2600
- Display
- 1 x DP
- Single Display
- DP
Expansion
- Interface
- 3 x PCIe x16 (Gen5) 3 x PCIe x8 (Gen5) 1 x PCIe x4 (Gen5) 2 x M.2 M key 2280
Audio
- Audio Codec
- HS-100B
Ethernet
- Controller
- 1 x Intel® I210AT+ 1 x Intel® I226LM + 2 x Intel® E610-XAT2 IPMI: RTL8211F

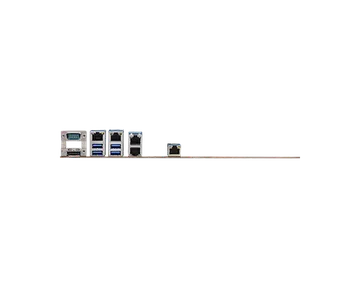

Rear I/O
- Ethernet
- 2 x GbE + 2 x 10GbE 1 x Dedicated IPMI LAN
- Serial
- 1 x RS-232/422/485 (DB-9)
- USB
- 4 x USB 3.2 Gen1
- Display
- 1 x DP
Internal I/O
- Serial
- 1 x RS-232/422/485
- USB
- 2 x USB 3.2 Gen1 2 x USB 2.0 1 x Vertical USB 2.0
- Audio
- 1 x Front Audio
- SATA
- 4 x SATA 3.0 RAID 0/1/5/10
- DIO
- 16-bit DIO
- SMBus
- 1 x SMBus
- MCIO
- 1 MCIO(PCIe x8)
Security
- TPM
- TPM 2.0
Power
- Type
- ATX
Environment
- Temperature
- Operating: 0 to 60°C
- Humidity
- Operating: 5 to 95% RH Storage: 5 to 95% RH
- MTBF
- TBD
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: TBD Top Side: TBD Bottom Side: TBD
Packing List
- Packing List
- • SNA610 Motherboard, 770-SNA6101-000G • 2 M.2 screw, A32-112016-041G • 2 M.2 standoff, A33-725019-090G • 1 IO Shield • 1 Serial ATA data cable (Length: 500mm), 332-553001-005G
Country of Origin
- Country of Origin
- Taiwan
