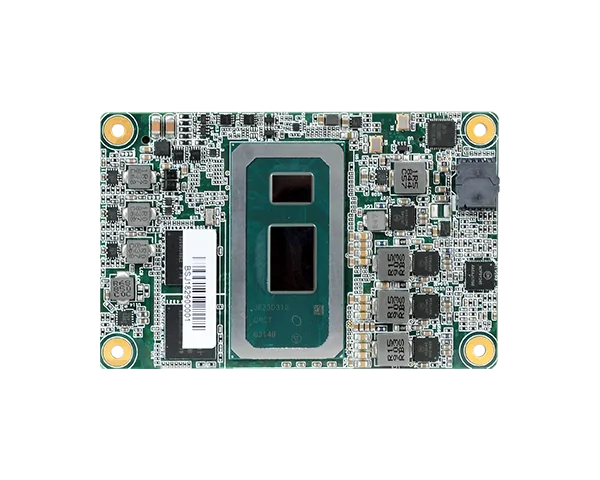

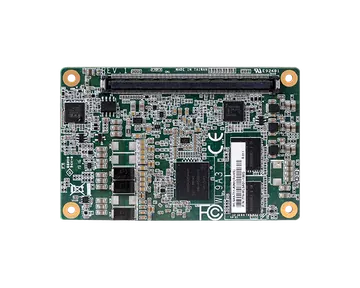

DFI's WL9A3 is a COM Express Mini with strategic communication application integration powered by Intel® 8th CPU. It's designed for Drone, UAV, UGV, USV, AUV, and more. DFI WL9A3 support COM Express Type 10, 8th Gen Intel® Core™, LPDDR3, 4 PCIe x1, 1 SDIO, 1 LPC, 2 I2C, 1 SMBus, 1 SPI, 2 UART (TX/RX).
- Intel® Core™ 8th Gen Processor
- Dual Channel LPDDR3 2133MHz；Memory Down up to 16GB
- 1 LVDS/eDP, 1 DDI (HDMI/DP)；Supports dual displays: DDI + LVDS/eDP
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#8th Gen Intel® Core™ Processor
#IoT
#Intel
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#DP
#DDR3
#RoHS Certification
#CE Certification
#FCC Certification
#ULT
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ 8th Gen Processor
- Dual Channel LPDDR3 2133MHz；Memory Down up to 16GB
- 1 LVDS/eDP, 1 DDI (HDMI/DP)；Supports dual displays: DDI + LVDS/eDP
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
System
- Processor
- 8th Gen Intel® Core™ Processor, FCBGA1528 Intel® Core™ i7-8665UE Processor, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W Intel® Core™ i5-8365UE Processor, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W Intel® Core™ i3-8145UE Processor, Dual Core, 4M Cache, 2.1GHz (3.9GHz), 15W
- Memory
- 8GB/16GB Memory Down Dual Channel LPDDR3 2133MHz
- BIOS
- SPI 128Mbit (default supports FTPM)
Graphics
- Controller
- Intel® UHD Graphics 620
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DP++) 1 x LVDS/eDP LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz HDMI: resolution up to 4096x2160 @ 30 Hz DP++: resolution up to 4096x2304 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz
- Dual Displays
- DDI + LVDS DDI + eDP
Expansion
- Interface
- 4 x PCIe x1 (Gen 3) 1 x SDIO 1 x LPC 2 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I219 (10/100/1000Mbps)
I/O
- USB
- 2 x USB 3.0 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- eMMC
- 1 x 4GB/8GB/16GB/32GB/64GB eMMC (available upon request)
- GPIO
- 1 x 8-bit GPIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V~20V, 5VSB, VCC_RTC (ATX mode) 12V~20V, VCC_RTC (AT mode)
- Consumption
- Typical: i7-8665UE: 12V @ 0.62A (7.44W) Max.: i7-8665UE:12V @ 1.82A (21.84W)
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C, -30 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 610,322 hrs @ 25°C; 211,473 hrs @ 45°C; 83,430 hrs @ 60°C 43,428 hrs @ 70°C; 42,033 hrs @ 85°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.30") x 55mm (2.16")
- Compliance
- PICMG COM Express® R3.0, Type 10
Standards and Certifications
- Certifications
- CE, FCC, UKCA, RoHS
Packing List
- Packing List
- 1 WL9A3 board 1 Heat sink (for 0 to 60°C): A71-008129-000G 1 Cooler (for -30 to 85°C): A71-108120-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WL9A3-T80-8665 | 770-WL9A31-000G | Intel® Core™ i7-8665UE Processor, 8GB LPDDR3 Memory Down,1 DIO, 1 LVDS, 2 USB 3.0, 8 USB 2.0, -30 to 85°C |
| WL9A3-T80-8365 | 770-WL9A31-100G | Intel® Core™ i5-8365UE Processor, 8GB LPDDR3 Memory Down, 1 DIO, 1 LVDS, 2 USB 3.0, 8 USB 2.0, -30 to 85°C |
| WL9A3-B80-8145 | 770-WL9A31-200G | Intel® Core™ i3-8145UE Processor, 8GB LPDDR3 Memory Down, 1 DIO, 1 LVDS, 2 USB 3.0, 8 USB 2.0, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM100-B carrier board kit | 770-COM104-000G | |
| Heat spreader | A71-808320-000G |
