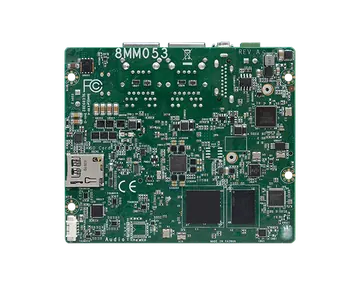

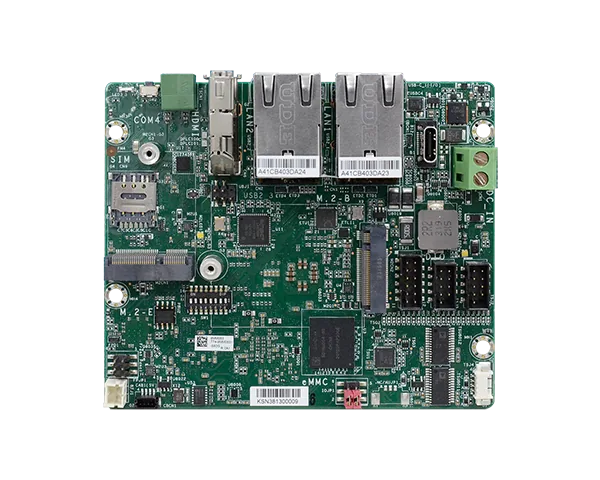

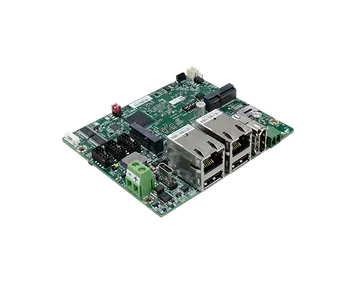

8MM053
2.5" Pico-ITX, NXP® i.MX 8M mini Series, LPDDR4 Memory Down, 1 M.2 B Key, 1 M.2 E Key, 2 GbE, 2 USB 2.0, 1 RS-485, 2 RS-232, RS-422, DIO, HDMI, 9~36VDC, Yocto 3.3, -5 to 65°C; -40 to 80°C
- NXP® i.MX 8M mini applications processors
- 1 LPDDR4 3200MHz memory down
- Support FHD High Resolution
- Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 2 GbE, 2 USB 2.0 1 RS-485, 2 RS-232, RS-422, DIO
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#LPDDR4
#FHD Resolution
#NXP
#NXP® i.MX 8M mini Series
#ARM
#Fanless Design
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- NXP® i.MX 8M mini applications processors
- 1 LPDDR4 3200MHz memory down
- Support FHD High Resolution
- Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 2 GbE, 2 USB 2.0 1 RS-485, 2 RS-232, RS-422, DIO
System
- Processor
- NXP i.MX 8M mini applications processors NXP i.MX 8M mini Quad Cortex-A53 1.8GHz (Consumer) NXP i.MX 8M mini Quad Cortex-A53 1.6GHz (Industrial)
- Memory
- 4GB Memory Down (1GB/2GB by project support) Single Channel LPDDR4
Graphics
- Controller
- 2D-GC320 3D-GC NanoULTRA
- Feature
- OpenGL® ES 2.1 VPU Decode: 1080p60 HEVC, H.264, VP9, VP8 VPU Encode: 1080p60 H.264, VP8
- Display
- 1 x HDMI (default) HDMI: resolution up to 1920x1080 @60Hz
- Single Display
- HDMI
Expansion
- Interface
- 1 x M.2 B key 3042/2242 (USB 2.0), Nano SIM slot support 1 x M.2 E key 2230 (USB 2.0)
Ethernet
- Controller
- 1 x RTL8211 Ethernet (10/100/1000Mbps)

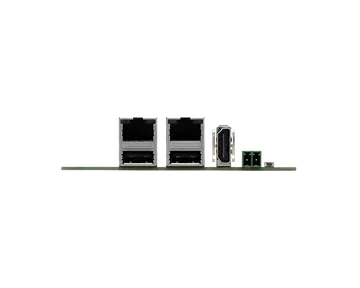

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-485(2 poles terminal block )
- USB
- 2 x USB 2.0 1 x Reset Button
- Display
- 1 x HDMI
Internal I/O
- Serial
- 2 x RS-232 (2 x 5 header, 2mm pitch)
- USB
- 1 x USB 2.0 (2mm pitch)
- SD
- 1 x Micro SD Slot
- I2C
- 1 x I2C (1.25mm pitch)
- Other I/O
- DIO (4 DIO/PWR/GND) and RS-422(4pin) (2 x 6 header, 2mm pitch)
- eMMC
- Support eMMC 5.1 8GB on board (default) Support up to 64GB (opt.)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- DC 9V to 36V
- Connector
- 2-poles Terminal Block (default)
- RTC Battery
- CR2032 with cable
OS Support
- OS Support
- Yocto 3.3 on eMMC (default)
Environment
- Temperature
- Operating: -5 to 65°C; -40 to 80°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
Mechanism
- Dimensions
- 100mm (3.94") x 85mm (3.35")
- Height
- PCB: 1.6mm Top Side: 22.64mm Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC Class A, RoHS
Packing List
- Packing List
- · 1 8MM053 MB · 1 Heat Spreader(Height) · 1 2-Pole Terminal Block for RS-485
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| 8MM053 | 770-8MM0531-500G | Quad Cortex-A53 1.6GHz, 4GB Memory Down, 8GB eMMC, -40 to 80°C, Yocto 3.3 (Kernel 5.10) |
| Item Name | Part Number | Description |
|---|---|---|
| 10 poles terminal for RS-422/4-bit DIO, L=100mm | A81-009670-016G | |
| 10-Pole Terminal Block for RS-422/4-bit DIO | 342-361101-100G | |
| Power Jack Cable, L=115mm | A81-004013-000G | |
| Power adapter 60W,12V, DC Jack | 671-106012-000G | |
| COM port cable | A81-015019-004G |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
