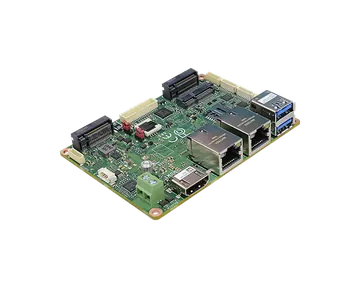

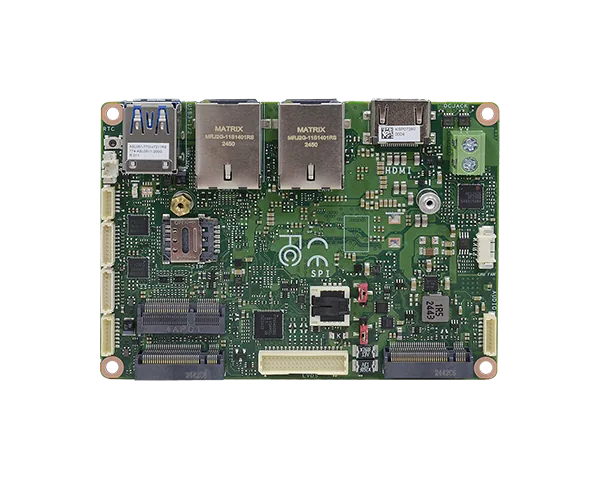

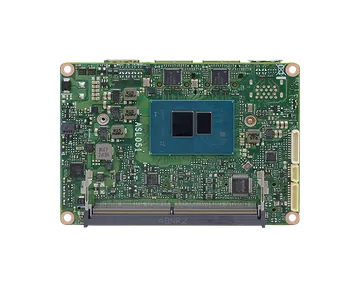

ASL051
2.5" Pico-ITX, Intel® Atom® Processor X Series Atom, Intel® Processor N Series, 1 DDR5-4800 SODIMM, 1 HDMI, 1 LVDS/eDP, 1 M.2 E Key, 2 M.2 B Key, 2 Intel 2.5GbE, 2 COM, 2 USB 3.2, 2 USB 2.0, -40 to 85°C
- Intel® Atom® Processor X Series / N Series (Code Name : Amston Lake/Twin Lake/Alder Lake-N)
- 1 DDR5 4800MHz SODIMM
- Supports 4K/2K resolution
- Dual Displays: HDMI + LVDS/eDP (Opt.)
- Multiple Expansion: 1 M.2 E Key, 2 M.2 B Key
- Rich I/O: 2 Intel 2.5GbE, 2 COM, 2 USB 3.2, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#DDR5
#Windows 10
#LVDS
#Edge AI Computing
#Intel® Atom® Alder Lake-N Processors
#eDP
#M.2
#Intel Atom® Twin Lake Processors
#Intel Atom® Amston Lake Processors
#Windows 11
#Intel
#4K2K Display
#Windows
#Linux
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#High-Performance
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® Processor X Series / N Series (Code Name : Amston Lake/Twin Lake/Alder Lake-N)
- 1 DDR5 4800MHz SODIMM
- Supports 4K/2K resolution
- Dual Displays: HDMI + LVDS/eDP (Opt.)
- Multiple Expansion: 1 M.2 E Key, 2 M.2 B Key
- Rich I/O: 2 Intel 2.5GbE, 2 COM, 2 USB 3.2, 2 USB 2.0
System
- Processor
- Intel Atom® Processor X Series (Code Name: Amston Lake) Intel Atom® Processor x7211RE, 2 Cores, 1.0~3.2 GHz, 6 W Intel Atom® Processor x7433RE, 4 Cores, 1.5~3.4 GHz, 9 W Intel Atom® Processor x7835RE, 8 Cores, 1.3~3.6 GHz, 12 W Intel® Processor N series (Code Name: Twin Lake, Alder Lake-N) Intel® Processor N150, 4 Cores, 1.0~3.6 GHz, 6W Intel® Core™ 3 Processor N355, 8 Cores, 1.8~3.9 GHz, 15W Intel® Processor N97, 4 Cores, 2.0~3.6 GHz, 12W Intel® Core™ 3 Processor N305, 8 Cores, 1.8~3.8 GHz, 15W
- Memory
- One 262-pin SODIMM up to 16GB Single Channel DDR5 4800MHz
- BIOS
- AMI SPI 256Mbi
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- OpenGL 4.6, Direct X 12.1, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9, AVC
- Display
- 1 x HDMI 1 x LVDS/eDP (Opt.) HDMI: resolution up to 4096×2160 @24Hz LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @60Hz eDP: resolution up to 2560x1440 @ 60Hz (2 Lane)
- Dual Displays
- HDMI + LVDS/eDP (Opt.)
Expansion
- Interface
- 1 x M.2 2230 E Key (PCIe 3.0 x1/USB 2.0), for Wi-Fi/BT. 1 x M.2 3042/2242 B Key (PCIe 3.0 x1/USB 3.2 Gen 1 x1/SATA 3.0) with 1 x Nano SIM slot for 4G/5G. 1 x M.2 2242 B key (PCIe 3.0 x2/USB 2.0/SATA 3.0), for storage.
Audio
- Audio Codec
- CMEDIA CM9825
Ethernet
- Controller
- 2 x Intel® I226V/IT (10/100/1000/2500Mbps)

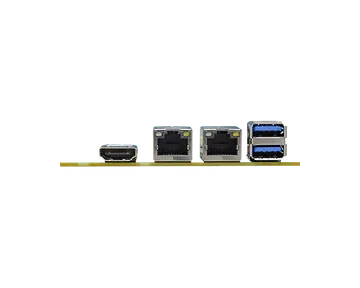

Rear I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- USB
- 2 x USB 3.2 Gen2
- Display
- 1 x HDMI
Internal I/O
- Serial
- 2 x RS-232/422/485 (1.00mm pitch, 2 x 9-pin header)
- USB
- 2 x USB 2.0 (1.00mm pitch, 1 x 8-pin header)
- Display
- 1 x 40 pin LVDS/eDP (Default: LVDS)
- Audio
- 1 x Line-out/Mic-in (1.00mm pitch, 1 x 8-pin header)
- DIO
- 1 x 8-bit DIO (1.00 pitch, 1 x 10-pin header)
- SMBus
- 1 x SMBus/I2C (Opt.)
- Front Panel
- 1 x front panel (power button/reset button, power LED, HDD act LED)
- Fan
- Smart Fan: 12V (4-wire)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM2.0
Power
- Type
- Single 12V (+/- 5%) DC
- Connector
- 2-pin Terminal Block
- Consumption
- Typical: x7835RE (w/Cooler), 12V @ 0.66A (7.92W) Max: x7835RE (w/Cooler), 12V @ 4.51A (54.12W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise LTSC 2021 Windows 11 IoT Enterprise LTSC 24H2 Linux
Environment
- Temperature
- Operating: -40 to 85 °C, -5 to 65 °C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- x7835RE: 410,407 hrs @ 25°C; 188,819 hrs @ 45°C; 84,311 hrs @ 60°C; 47,388 hrs @70°C; 36,140 hrs @85°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6 mm Top Side: 16mm Bottom Side: 9.4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • 1 ASL051 board • 1 Heat spreader (Height: 11 mm), A71-808373-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ASL051-TTD-x7835RE | 770-ASL0511-000G | Intel Atom® x7835RE, 8C, 12W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -40~85°C |
| ASL051-TTD-x7433RE | 770-ASL0511-100G | Intel Atom® x7433RE, 4C, 9W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -40~85°C |
| ASL051-TTD-x7211RE | 770-ASL0511-200G | Intel Atom® x7211RE, 2C, 6W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -40~85°C |
| ASL051-BCD-N355 | 770-ASL0511-300G | Intel® Core™ 3 N355, 8C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -5~65°C |
| ASL051-BCD-N150 | 770-ASL0511-500G | Intel® N150, 4C, 6W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -5~65°C |
| ASL051-BCD-N305 | 770-ASL0511-600G | Intel® Core™ 3 N305, 8C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -5~65°C |
| ASL051-BCD-N97 | 770-ASL0511-700G | Intel® N97, 4C, 12W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -5~65°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106012-000G | 60W, 12V |
| 2-pin power to DC jack cable | A81-004013-000G | Length: 115mm |
| COM port cable | A81-015130-018G | Length: 250mm, 1x COM port |
| USB 2.0 cable | A81-001201-018G | Length: 200mm, 2 USB ports |
| Front panel cable | A81-009899-018G | Length: 250mm |
| Audio cable | A81-022043-054G | Length: 200mm |
| DIO cable | A81-009715-018G | Length: 200mm |
| SMBus cable | A81-009716-018G | Length: 200mm |
| Heat sink for 85°C(9W), 70°C(12W), 65°C(15W) | A71-008194-A00G | Height: 25.9mm |
| Cooler for 85°C(12W) | A71-108165-A00G | Height: 26mm |
