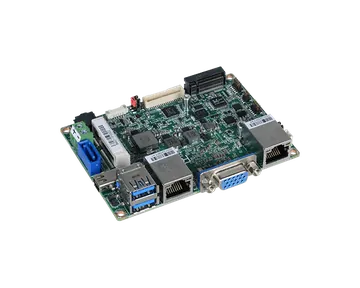

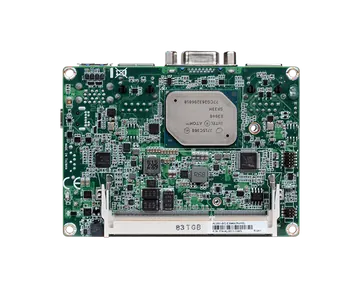

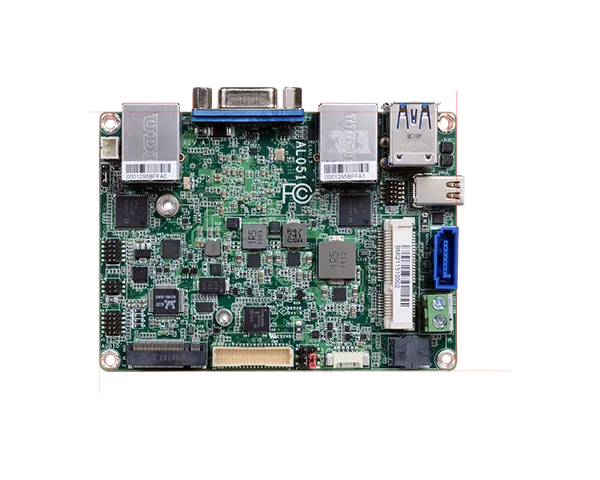

AL051
AL051, 2.5" Pico-ITX with Intel Atom®/Pentium®/Celeron®, designed with low power, rich I/O which is ideal for industrial control/data collection/industrial digital signage/IoT applications
- Intel® Atom™/Pentium®/Celeron® Processor E3900
- 1 DDR3L SODIMM up to 8GB
- Triple independent displays: VGA + Mini DP++ + LVDS
- Expansion and Storage: 1 Mini PCIe, 1 M.2, 1 SMBus
- Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#4K2K Display
#Windows
#Linux
#VGA
#DP
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel® Atom™/Pentium®/Celeron® Processor E3900
- 1 DDR3L SODIMM up to 8GB
- Triple independent displays: VGA + Mini DP++ + LVDS
- Expansion and Storage: 1 Mini PCIe, 1 M.2, 1 SMBus
- Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 2 USB 2.0
System
- Processor
- Intel® Atom™ Processor E3900 Family, BGA 1296 Intel® Atom™ x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel® Atom™ x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Atom™ x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz
- BIOS
- Insyde SPI 64Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x Mini DP++ 1 x VGA 1 x LVDS Mini DP++: resolution up to 4096x2160 @ 60Hz VGA: resolution up to 2048x1536 @ 50Hz LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @ 60Hz
- Triple Displays
- VGA + Mini DP++ + LVDS
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0) 1 x M.2 B key 2242. (PCIe/USB 2.0/SATA 3.0)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps) 2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

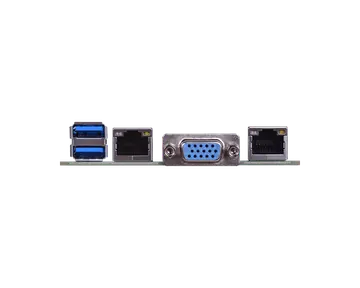

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 2 x USB 3.1 Gen 1
- Display
- 1 x Mini DP++ 1 x VGA 1 x LVDS
Internal I/O
- Serial
- 1 x RS-232/422/485 (1.27mm pitch)
- USB
- 2 x USB 2.0 (1.27mm pitch)
- Display
- 1 x LVDS LCD Panel Connector
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM2.0
Power
- Type
- Single 12V +/-10% DC
- Connector
- 2-pin Terminal Block 2-pin Vertical Type Connector (opt.)
- Consumption
- Typical: E3950:12V @ 0.51A (6.12Watt) Max.: E3950:12V @ 2.00A (24.00Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise (64-bit) Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85 °C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 497,857 hrs @ 25°C; 318,774 hrs @ 45°C ; 213,436 hrs @ 60°C
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6 mm Top Side: 7.9 mm Bottom Side: 16.34 mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 AL051 board 1 Serial ATA data cable (Length: 152mm) A81-002000-000G 1 Y cable for SATA and inverter power (Length: 155mm) A81-020016-018G 1 Heat spreader (Height: 11mm) E Series CPU: A71-808308-010G, N Series CPU: A71-808309-010G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL051-BC-E3930 | 770-AL0511-000G | Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C |
| AL051-BC-E3940 | 770-AL0511-100G | Fanless, Intel Atom® X5-E3940, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C |
| AL051-BC-E3950 | 770-AL0511-200G | Fanless, Intel Atom® X7-E3950, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C |
| AL051-BC-N3350 | 770-AL0511-300G | Fanless, Intel® Celeron® N3350, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C |
| AL051-EC-E3930 | 770-AL0511-400G | Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, -20 to 70°C |
| AL051-TC-E3930 | 770-AL0511-500G | Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, -40 to 85°C |
| AL051-BC-N4200 | 770-AL0511-600G | Fanless, Intel® Pentium® Processor N4200, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C |
| AL051-TC-E3950 | 770-AL0511-900G | Fanless, Intel Atom® X7-E3950, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, -40 to 85°C |
| AL051-TC-E3940 | 770-AL0511-A00G | Fanless, Intel Atom® X5-E3940, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| 1 Audio cable | A81-022037-016G | Length: 160mm |
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
| 1 COM port cable | A81-015050-016G | Length: 300mm |
| USB port cable | A81-001084-016G | Length: 200mm |
| 2 pole terminal to DC Jack cable | A81-004013-000G | |
| Heat sink for E series CPU 0 to 60°C/wide temp | A71-008111-000G | Height: 22.6mm |
| Heat sink for N series CPU 0 to 60°C | A71-008108-000G | Height: 19mm |
