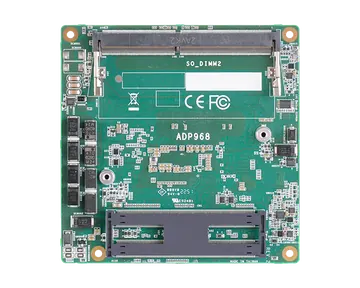

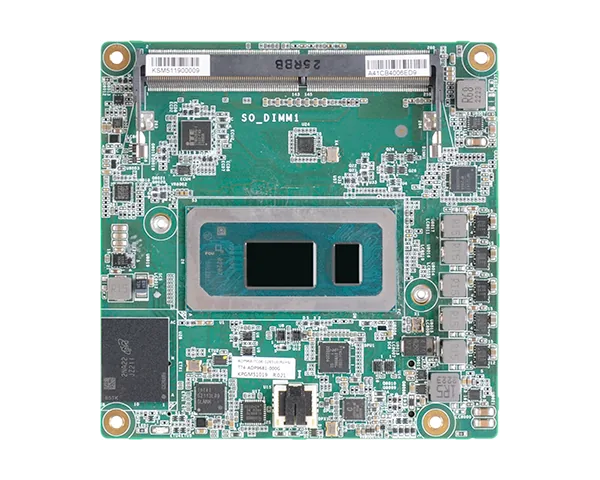

ADP968
COM Express Type 6, 12th Gen Intel® CPU, DDR4, 8 PCIe x1, 2 SATA 3.0, 8 USB 2.0, 4 USB 3.1, 1 VGA, 1 LVDS, 3 DDI
- 12th Generation Intel® Processor COM Express® Compact
- DDR4 3200MHz SODIMM up to 64GB
- VGA/DDI + LVDS/eDP + DDI
- DP++ supports 4K x 2K resolution
- Multiple expansion: 8 PCIe x1, 1 I2C, 1 SMBus
- Rich I/O: 1 Intel 2.5GbE, 4 USB 3.2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#Edge AI Computing
#Slim Bootloader
#IoT
#Intel
#4K2K Display
#Windows
#Linux
#HDMI
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- 12th Generation Intel® Processor COM Express® Compact
- DDR4 3200MHz SODIMM up to 64GB
- VGA/DDI + LVDS/eDP + DDI
- DP++ supports 4K x 2K resolution
- Multiple expansion: 8 PCIe x1, 1 I2C, 1 SMBus
- Rich I/O: 1 Intel 2.5GbE, 4 USB 3.2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Core™ i7-1270PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.2 GHz, 18 MB cache, 28W) Intel® Core™ i5-1250PE (4 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 28W) Intel® Core™ i3-1220PE (4 P-Cores x 1.5 GHz, 4 E-Cores x 1.1 GHz, 12 MB cache, 28W) Intel® Core™ i7-1265UE (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.8 GHz, 12 MB cache, 15W) Intel® Core™ i5-1245UE (2 P-Cores x 1.5 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W) Intel® Core™ i3-1215UE (2 P-Cores x 1.2 GHz, 4 E-Cores x 0.9 GHz, 10 MB cache, 15W) Intel® Celeron® 7305E (1 P-Core x 1.0 GHz, 4 E-Cores x 0.9 GHz, 8 MB cache, 15W)
- Memory
- Two 260-Pin SO-DIMM up to 64GB, Dual Channel DDR4 3200MHz
- BIOS
- AMI BIOS
Graphics
- Controller
- Intel® Iris® Xe graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1 HW Encode: AVC/H264,JPEG, HEVC/H265, VP9
- Display
- 1 x VGA 1 x LVDS/eDP (eDP available upon request) 3 x DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + LVDS + DDI DDI + eDP + DDI (available upon request)
Expansion
- Interface
- 2 x PCIe x4 (Gen4 PCH) 5 x PCIex1 (Gen3) (8 x PCIex1 available upon request) 1 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I225 series (10/100/1000Mbps/2.5G) co-lay PCIe x1 (available upon request)
I/O
- USB
- 4 x USB 3.2 Gen.2 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s) co-lay PCIe x1 (available upon request)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 8.5~20V, 5VSB, VCC_RTC (ATX mode) 8.5~20V, VCC_RTC (AT mode)
- Consumption
- Boot up: Celeron 7305E: 12V @ 1.73A (20.76W); Idle: Celeron 7305E: 12V @ 1.42A (17.04W); Max.: Celeron 7305E: 12V @ 2.25A (27W)
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- 285,252 hrs @ 25°C; 147,603 hrs @ 45°C; 83,116 hrs @ 60°C; 56,825 hrs @ 70°C; 41,232 hrs @ 85°C
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R3.1, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ADP968-TC06-1265UE | 770-ADP9681-000G | I7-1265UE, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB 2.0, ATX/AT, Cooler, -40 to 85°C |
| ADP968-TC00-1245UE | 770-ADP9681-100G | I5-1245UE, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB 2.0, ATX/AT, Cooler, -40 to 85°C |
| ADP968-TC00-1215UE | 770-ADP9681-200G | I3-1215UE, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB 2.0, ATX/AT, Cooler, -40 to 85°C |
| ADP968-BC00-7305E | 770-ADP9681-300G | Celeron 7305E, 2 SODIMM eDP, LAN, SATA, 4 USB3.2 Gen2, 8 USB 2.0, ATX/AT, Heatsink, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat Spreader | A71-808343-000G | |
| COM335 Carrier Board Kit | 770-CM3351-000G |
