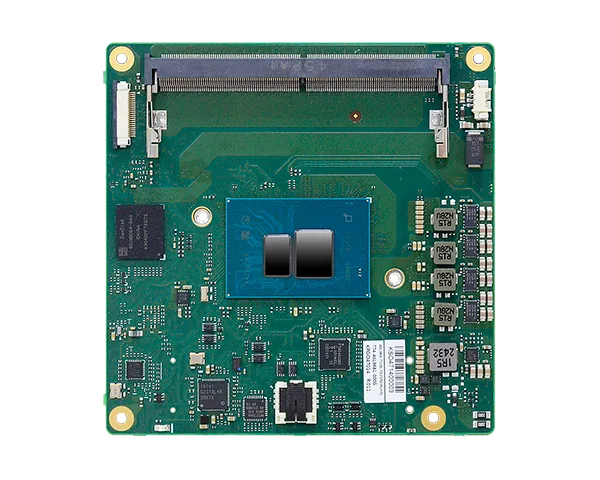

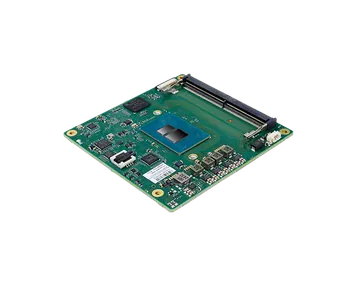

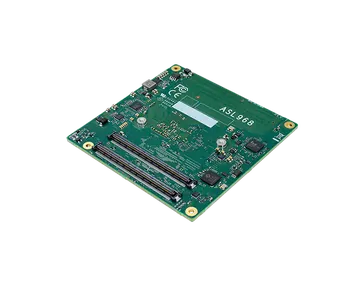

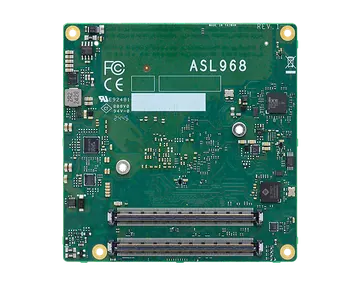

ASL968
COM Express Type 6, Intel® Core™ 3 & N series Processor Twin Lake & Atom® Processor Amston Lake , DDR5, 1 LVDS/eDP, 2 DDI, 8 PCIe x1, 1 Intel 2.5GbE, 4 USB 3.2, 2 SATA 3.0, -40°C~85°C
- Intel® Core™ 3 & N series Processor Twin Lake & Atom® Processor Amston Lake
- Single Channel DDR5 4800MHz SODIMM up to 16GB
- Triple Displays: LVDS/eDP + 2 DDI
- Supports 4K / 2K resolution
- Multiple Expansion: Up to 8 PCIe x1
- Rich I/O: 1 Intel 2.5GbE, up to 4 USB 3.2, 2 SATA 3.0
Főbb jellemzők
Tanúsítványok
#DDR5
#Windows 10
#LVDS
#eDP
#SMBus
#I2C
#LPC
#UART
#USB 4.0
#eMMC
#Slim Bootloader
#Fast Resume & Low Power Standby
#Intel Atom® Amston Lake Processors
#IoT
#Windows 11
#Intel
#4K2K Display
#Windows
#Linux
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ 3 & N series Processor Twin Lake & Atom® Processor Amston Lake
- Single Channel DDR5 4800MHz SODIMM up to 16GB
- Triple Displays: LVDS/eDP + 2 DDI
- Supports 4K / 2K resolution
- Multiple Expansion: Up to 8 PCIe x1
- Rich I/O: 1 Intel 2.5GbE, up to 4 USB 3.2, 2 SATA 3.0
System
- Processor
- Intel® Atom x7000RE series processors (Code Name: Amston Lake) Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W Intel® Core™ 3 Processor N355, 8 Cores, 1.8~3.9GHz, 9/15W Intel® Processor N150, 4 Cores, 1.0~3.6GHz, 6W
- Memory
- One 262-pin SODIMM up to 16GB Single Channel DDR5 4800MHz In-band ECC (IBECC) supported
- BIOS
- AMI SPI 256MHz
Graphics
- Controller
- Intel® UHD
- Feature
- DX12, Open GL 4.6, Vulkan 1.2 HW Decode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC, 4K60 10b 4:2:0 AV1 HW Encode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC
- Display
- 1 x LVDS/eDP 2 x DDI LVDS: dual channel 1920x1200 @60Hz eDP: 4096x2160 @60Hz
- Triple Displays
- LVDS/eDP + 2 DDI
Expansion
- Interface
- Up to 8x PCIe x1 (Gen3) (support 5 PCIe devices, 3x PCIe x1 co-layout w/Ethernet and SATA, available upon request) 1 x I2C 1 x SMBus 1 x LPC/eSPI (ESPI is BOM option; Default LPC) 2 x UART (TX/RX only) 1 x CAN (co-layout with UART)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I226 series (10/100/1000/2500Mbps), co-lay 1 x PCIe x1 (available upon request)
I/O
- USB
- 2 x USB 3.2 Gen2 (option to 4 ports by USB hub) 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s), co-lay 2 x PCIe x1 (available upon request)
- eMMC
- 1 x 64GB eMMC 5.1
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0 (Option: fTPM)
Power
- Type
- 8.5~20V, 5VSB, VCC_RTC (ATX mode) 8.5~12V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- Microsoft
- Windows 11/10 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: -40°C~85°C for Amston Lake CPU sku, 0°C~60°C for Twin Lake CPU sku Storage: -40°C~85°C
- Humidity
- Operating: 10%~90% RH Storage: 10%~90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R3.1, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • Cooler, A71-108312-000G • Heatspreader(CPU block only), A71-810417-000G • Thermal grease, 912-077832-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ASL968-TC06-7835RE | 770-ASL9681-000G | Intel Atom x7835RE, 8 cores, 9/15W, 64GB eMMC, LVDS, TPM 2.0, 2 USB 3.2, Cooler, -40~85°C |
| ASL968-TC06-7433RE | 770-ASL9681-100G | Intel Atom x7433RE, 4 cores, 9W, 64GB eMMC, LVDS, TPM 2.0, 2 USB 3.2, Cooler, -40~85°C |
| ASL968-TC00-7211RE | 770-ASL9681-200G | Intel Atom x7211RE, 2 cores, 6W, LVDS, TPM 2.0, 2 USB 3.2, Cooler, -40~85°C |
| ASL968-BC06-N355 | 770-ASL9681-300G | Intel Core 3 N355, 8 cores, 9/15W, 64GB eMMC, 9/15W, LVDS, TPM 2.0, 2 USB 3.2, Cooler, 0~60°C |
| ASL968-BC00-N150 | 770-ASL9681-400G | Intel N150, 4 cores, 6W, LVDS, TPM 2.0, 2 USB 3.2, Cooler, 0~60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat Spreader | all-in-one, upon request, MOQ: 50pcs | |
| COM335 Carrier Board Kit | 770-CM3351-000G |
