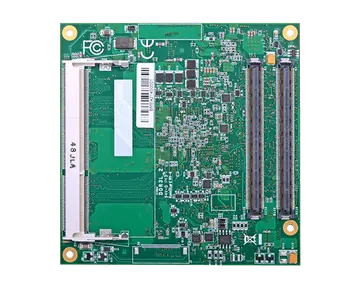

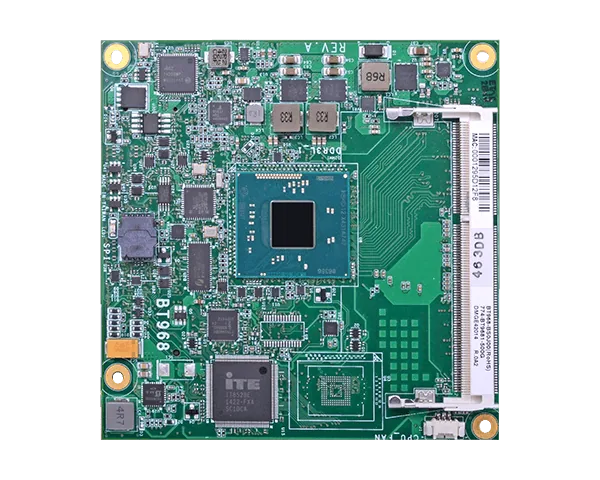

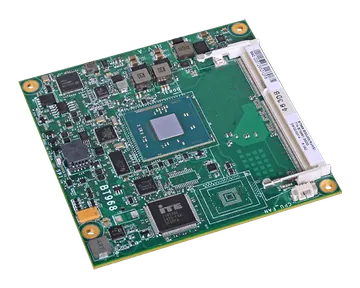

BT968
The new Compact module is based on the low-power and cost-efficient Intel® Atom™ processor E3800 product family, which is the first system-on-chip (SoC) designed for the growing requirements of intelligent systems. Thanks to the low power consumption, BT968 is the right product for embedded applications that spend significant time in sleep states, such as printers and ATMs.
- Intel Atom® E3800 Series
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
- Multiple expansions: 3 PCIe x1, 2 SATA 2.0
- Support Dual Displays: 1 VGA, 1 LVDS, 1 DDI (HDMI/DVI/DP)
- Dual Channel DDR3L 1333MHz SODIMM up to 8GB
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Fanless Design
#Compact Size
#1G Ethernet
#Windows
#HDMI
#VGA
#Multiple Expansion
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel Atom® E3800 Series
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
- Multiple expansions: 3 PCIe x1, 2 SATA 2.0
- Support Dual Displays: 1 VGA, 1 LVDS, 1 DDI (HDMI/DVI/DP)
- Dual Channel DDR3L 1333MHz SODIMM up to 8GB
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3800 Series, BGA 1170 Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W
- Memory
- Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1333MHz
- BIOS
- AMI 64Mbit BIOS
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 3.2, DirectX 11, OpenCL 1.2 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DVI/DP) 1 x LVDS/DDI* (HDMI/DVI/DP) 1 x VGA LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI/DVI: resolution up to 1920x1080 @ 60Hz DP: resolution up to 2560x1600 @ 60Hz VGA: resolution up to 1920x1200 @ 60Hz
Expansion
- Interface
- 3 x PCIe x1 or 1 PCIe x4 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I210AT (10/100/1000Mbps)
I/O
- USB
- 1 x USB 3.0 8 x USB 2.0
- SATA
- 2 x SATA 2.0
- eMMC
- 1 x 4GB/8GB/16GB/32GB eMMC (available upon request)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- BT968-TS0-E45: 15.88W with E3845 at 1.91GHz and 2 x 4GB DDR3L SODIMM
OS Support
- OS Support
- Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 10 Enterprise x86 (32-bit) Windows 10 Enterprise x64 (64-bit)
Environment
- Temperature
- Operating: 0 to 60°C, -20 to 70°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- 777,906 hrs @ 25°C; 394,833 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R2.1, Type 6
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 BT968 board 1 Heat spreader: A71-011039-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BT968-TS0-E45 | 770-BT9681-000G | Fanless, Intel Atom E3845, 2 DDR3L SODIMM, -40 to 85°C |
| BT968-TS8-E27 | 770-BT9681-100G | Fanless, Intel Atom E3827, 2 DDR3L SODIMM, 8GB eMMC, -40 to 85°C |
| BT968-TS0-E27 | 770-BT9681-800G | Fanless, Intel Atom E3827, 2 DDR3L SODIMM, -40 to 85°C |
| BT968-TS4-E15 | 770-BT9681-400G | Fanless, Intel Atom E3815, 1 DDR3L SODIMM, 4GB eMMC, -40 to 85°C |
| BT968-BS0-J00 | 770-BT9681-500G | Fanless, Intel Celeron J1900, 2 DDR3L SODIMM, 0 to 60°C |
| BT968-BS0-N30 | 770-BT9681-600G | Fanless, Intel Celeron N2930, 2 DDR3L SODIMM, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat spreader with heat sink and fan | 761-BT9681-000G | |
| COM331-B carrier board kit | 770-COM331-000G | |
| Heat sink | A71-011054-000G |
