IDP-ME Series
IDP-ME series is an industrial touch monitor, designed with IP65 Front Panel, with different sizes including 15/17/19".

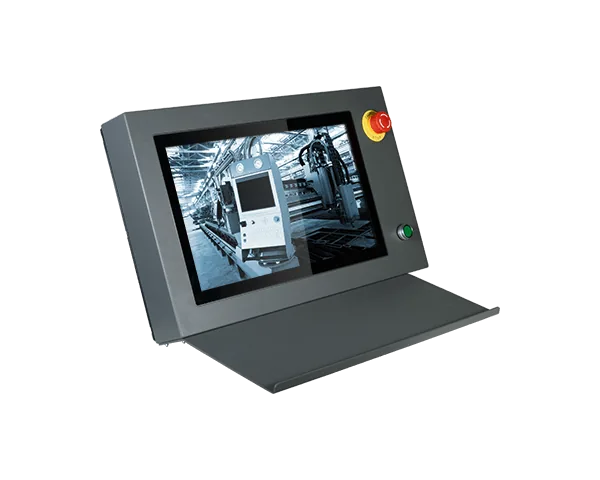

AME185
18.5" Industrial Touch Monitor, Projected Capacitive Multi-touch
- 18.5" 1366x768 LCD Touch Panel
- Projected Capacitive Multi-touch
- Support Emergency Button and Press Button on Front Bezel
- Support Keyboard Holder
- 1 DVI-I, 1 VGA
#DVI-I
#VGA
Főbb jellemzőkKey features
- 18.5" 1366x768 LCD Touch Panel
- Projected Capacitive Multi-touch
- Support Emergency Button and Press Button on Front Bezel
- Support Keyboard Holder
- 1 DVI-I, 1 VGA
Display and Touch Screen
- Display
- 18.5” 1366x768 TFT LCD Panel with Capacitive/5-Wire Resistive Touch Screen
- Brightness
- 450 cd/m²
- Contrast
- 1000:1
- Active Area
- 409.8mm x 230.4mm (H x V)
- Response Time
- 8ms
- View Angle
- 85°/85°/80°/80° (L/R/U/D)
- Backlight Lifetime
- 50,000 hours
Front I/O
- Buttons
- 1 x Emergency Button 1 x Press Button 1 x Keyboard Holder
Bottom I/O
- USB
- 1 x USB 2.0 1 x mini USB 2.0
- Display
- 1 x DVI-I 1 x VGA
Power
- Type
- 24V / 5A DC
- Connector
- DC Jack
Environment
- Operating Temperature
- 0 to 50°C
- Storage Temperature
- -20 to 60°C
- Relative Humidity
- 10 to 90% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Panel/VESA Mount
- Dimensions (W x H x D)
- TBD
- Weight
- TBD
Packing List
- Packing List
- • 1 AME185 Monitor • 1 Power Cord • 1 Quick Guide
Country of Origin
- Country of Origin
- Taiwan
