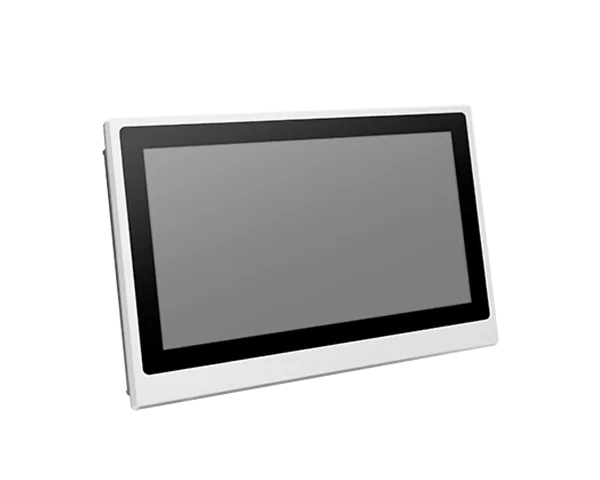

IDP156-MS
15.6" Industrial Touch Monitor, Projected Capacitive Multi-touch/Resistive Touch
- Two Types Touch: Projected Capacitive Multi-touch / Resistive Touch
- IP Rating: IP65 Front Panel
- Support 3 Signal Interfaces: VGA/DVI/HDMI
- Support Modular Extended Display: Wifi Display
- Various Mounting Type: VESA Mount 75 / Panel Mount
- Advanced Voltage: Support USB Type C
Főbb jellemzők
Tanúsítványok
#IDP-MS Series
#IDP Series
#IP65 Front Panel Protection
#HDMI
#DVI-D
#VGA
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Two Types Touch: Projected Capacitive Multi-touch / Resistive Touch
- IP Rating: IP65 Front Panel
- Support 3 Signal Interfaces: VGA/DVI/HDMI
- Support Modular Extended Display: Wifi Display
- Various Mounting Type: VESA Mount 75 / Panel Mount
- Advanced Voltage: Support USB Type C
Display and Touch Screen
- Display
- 15.6" TFT LCD Monitor Projected Capacitive Multi-touch / Resistive Touch
- Brightness
- 400 cd/m²
- Contrast
- 800 : 1
- Active Area
- 344.232mm x 193.536mm (H x V)
- Response Time
- 10ms
- View Angle
- 170/130
- Backlight Lifetime
- 50,000 Hrs LED Backlight
- Max. Resolution
- 1366 x 768
Bottom I/O
- USB
- 1 x USB port (touch to external PC)
- Display
- 1 x VGA 1 x DVI-D 1 x HDMI
- Audio
- 1 x Line-in
- External Display (opt.)
- Wifi Display
Power
- Type
- 20V USB Type C VDC Input / 12 to 24 VDC Input with DC Jack
Environment
- Operating Temperature
- 0°C ~ 70°C
- Storage Temperature
- -30°C ~ 70°C
- Relative Humidity
- 90% RH@ 60°C, 240Hrs (non-condensing)
Mechanism
- Dimensions
- 407.3 x 227.3 x 56 (mm)
- Construction
- Aluminum Front Bezel
- IP Rating
- IP65 Front Panel
- Weight
- 3.9 kg
Standards and Certifications
- Certifications
- CE, FCC, UKCA, RoHS
Packing List
- Packing List
- 1 IDP156-MS Monitor 1 Audio Cable 1 VGA Cable 1 USB Cable 1 Quick Guide
Others
- OSD Keypad
- Multi-language OSD
- Speaker
- 2 x 3W
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| IDP156P-C20 | 750-IP1560-000G | IDP156P-C20: 15.6" TFT WVGA Monitor with Projected Capacitive Touch, 500nits, VGA/DVI-D/HDMI, USB Type C 20VDC input, F/G SYSTEM, RoHS |
| IDP156P-W24 | 750-IP1560-100G | IDP156P-W24: 15.6" TFT WVGA Monitor with Projected Capacitive Touch, 500nits, VGA/DVI-D/HDMI, 12 to 24VDC input, F/G SYSTEM, RoHS |
| IDP156R-C20 | 750-IP1560-200G | IDP156R-C20: 15.6" TFT WVGA Monitor with Resistive Touch, 500nits, VGA/DVI-D/HDMI, USB Type C 20VDC input, F/G SYSTEM, RoHS |
| IDP156R-W24 | 750-IP1560-300G | IDP156R-W24: 15.6" TFT WVGA Monitor with Resistive Touch, 500nits, VGA/DVI-D/HDMI, 12 to 24VDC input, F/G SYSTEM, RoHS |
| DM-WIFI | 750-DMWIFI0-000G | External Wifi Display Module |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
