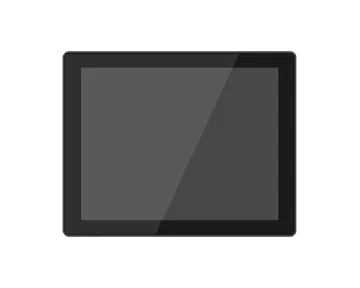

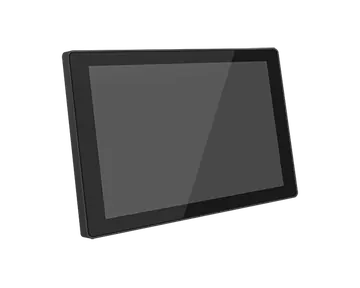

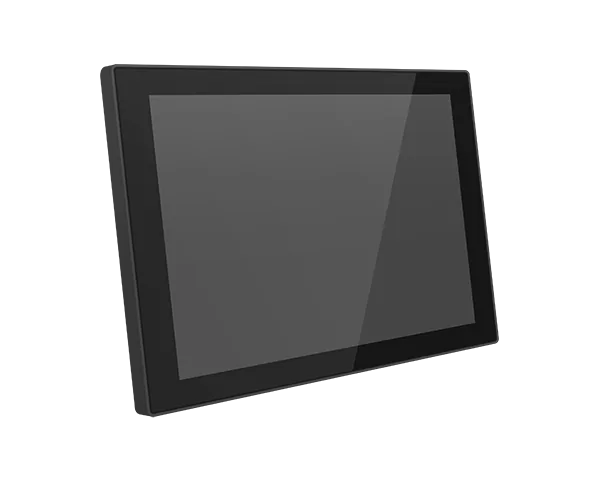

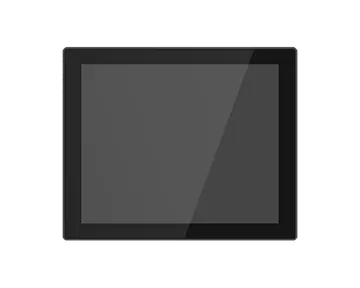

IDP-ME Series
IDP-ME series is an industrial touch monitor, designed with IP65 Front Panel, with different sizes including 15/17/19".
- Touch Type: Projected Capacitive Support 10 points Multi-Touch
- IP Rating: IP65 Front Panel
- Support 2 Signal Interfaces: VGA/HDMI
- Operating Temperature: 0°C ~ 50°C
Főbb jellemzők
Tanúsítványok
#IDP Series
#IP65 Front Panel Protection
#HDMI
#VGA
#12V DC-in
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Touch Type: Projected Capacitive Support 10 points Multi-Touch
- IP Rating: IP65 Front Panel
- Support 2 Signal Interfaces: VGA/HDMI
- Operating Temperature: 0°C ~ 50°C
Display and Touch Screen
- Display
- [IDP150-ME]15" TFT LCD [IDP170-ME]17" TFT LCD [IDP190-ME]19" TFT LCD
- Brightness
- [IDP150-ME]300 nits (without Touch screen) [IDP170-ME]250 nits (without Touch screen) [IDP190-ME]250 nits (without Touch screen)
- Contrast
- [IDP150-ME]2500:1 [IDP170-ME]1000:1 [IDP190-ME]1000:1
- View Angle
- [IDP150-ME]176(H) / 176(V) [IDP170-ME]170(H) / 160(V) [IDP190-ME]170(H) / 160(V)
- Backlight Lifetime
- [IDP150-ME]50,000 Hrs [IDP170-ME]30,000 Hrs [IDP190-ME]30,000 hrs (Min.)
- Max. Resolution
- [IDP150-ME]1024 x 768 [IDP170-ME]1280 x 1024 [IDP190-ME]1280 x 1024
- Touch Type
- Projected Capacitive Support 10 points Multi-Touch
- Color Depth
- Color Depth: 8 bits Display Colors: 16.7M
Audio
- Speaker
- 2 x 2W Speakers (option)

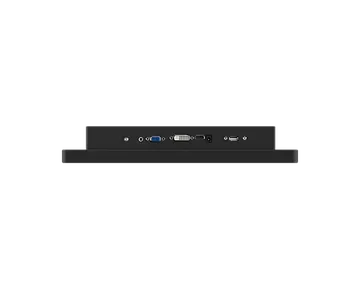

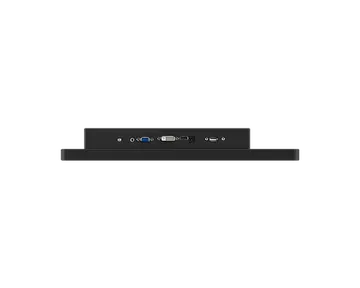

I/O
- USB
- USB Type A
- Display
- VGA: 1 x VGA DVI: 1 x DVI (option) HDMI: 1 x HDMI 1.2
- Audio
- Audio: 1 x Audio
- Input ports
- Power Input: 1 x DC Jack
Power
- Type
- AC Input 12V DC-IN
- Consumption
- Typical: 30W, normal operation
Environment
- Humidity
- 20% to 80% non-condensing
- Operating Temperature
- 0°C ~ 50°C
- Storage Temperature
- -10°C ~ 60°C
Mechanism
- Construction
- Aluminum front Frame Metal back-cover

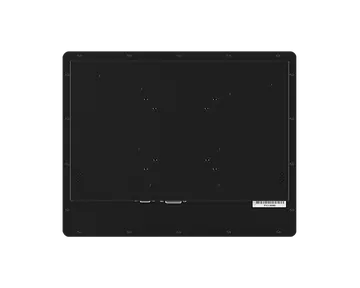

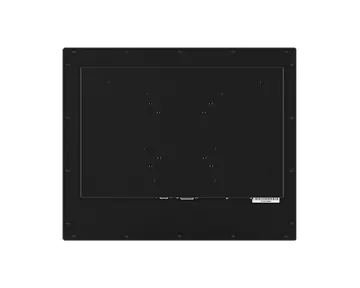

- Mounting
- VESA mount 75 x 75mm & 100 x100mm
- Dimensions (W x H x D)
- [IDP150-ME]358.7 x 281.7 x 55 mm [IDP170-ME]399.6 x 331 x 57 mm [IDP190-ME]442 x 366.7 x 59 mm
- Weight
- [IDP150-ME]5 kg [IDP170-ME]6 kg [IDP190-ME]6.5 kg
- Color
- Black
Standards and Certifications
- Certifications
- CE / FCC Class A
- IP Rating
- IP65 Front Panel
Packing List
- Packing List
- 1 VGA cable 1 USB cable 1 Power Adapter 1 Power code
Others

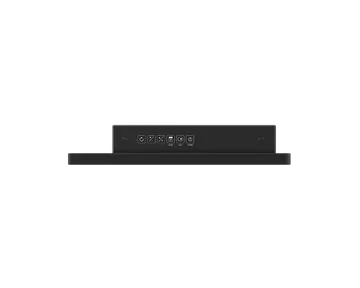

- OSD Keypad
- 5 x Control buttons on the rear side Power Auto Up Down Menu
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| IDP150-ME | 790-IDP150-100G | IDP150-RTL: 15" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS |
| IDP170-ME | 790-IDP170-100G | IDP170-RTL: 17" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS |
| IDP190-ME | 790-IDP190-000G | IDP190-RTL: 19" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS |
