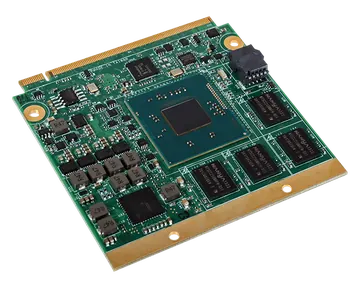

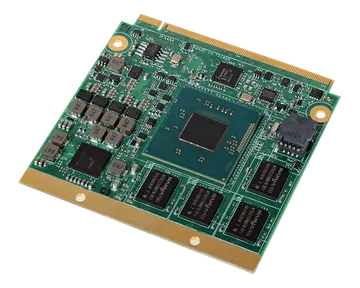

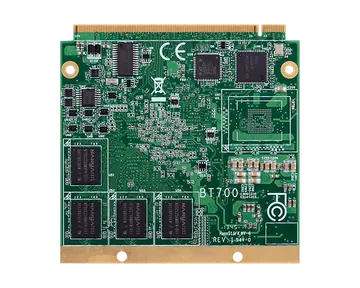

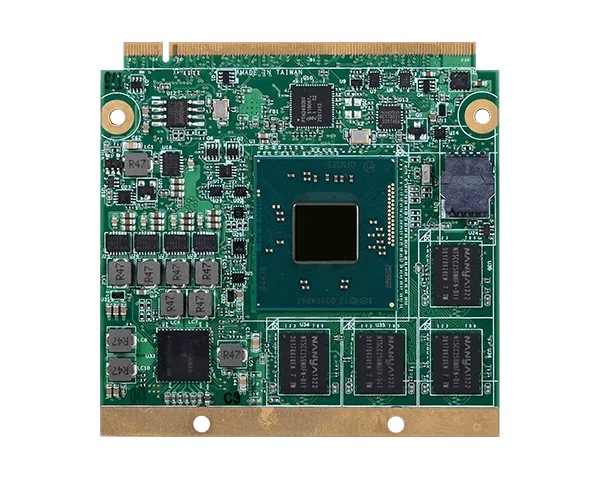

BT700
This new Qseven module is based on the low-power and cost-efficient next-generation Intel® Atom™ processor E3800 product family, which is specifically designed for today’s growing performance/wattage requirements of intelligent systems. This unique equipment delivers excellent computing, media, and graphical capabilities as well as a built-in security engine — all on a sub-10-watt system-on-chip (SoC) making it suitable for a wide range of commercial and industrial designs.
- Intel Atom® E3800 Series
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 6 USB 2.0
- Multiple expansions: 3 PCIe x1
- 1 DDI (DP/HDMI/DVI), 1 LVDS
- 2GB/4GB DDR3L Single Channel Memory Down
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Fanless Design
#Compact Size
#1G Ethernet
#Windows
#HDMI
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel Atom® E3800 Series
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 6 USB 2.0
- Multiple expansions: 3 PCIe x1
- 1 DDI (DP/HDMI/DVI), 1 LVDS
- 2GB/4GB DDR3L Single Channel Memory Down
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3800 Series, BGA 1170 Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W
- Memory
- 2GB/4GB Single Channel DDR3L Onboard 1333MHz
- BIOS
- AMI 64Mbit BIOS
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 3.2, DirectX 11, OpenCL 1.2 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DVI/DP) 1 x LVDS LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI/DVI: resolution up to 1920x1080 @ 60Hz DP: resolution up to 2560x1600 @ 60Hz
Expansion
- Interface
- 3 x PCIe x1 1 x LPC 1 x I2C 1 x SMBus 1 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I210AT (10/100/1000Mbps) (0 to 60°C) 1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)
I/O
- USB
- 1 x USB 3.0 6 x USB 2.0
- SATA
- 2 x SATA 2.0
- eMMC
- 1 x 8GB/16GB/32GB eMMC (available upon request)
- DIO
- 1 x 8-bit SDIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 5V, 5VSB, VCC_RTC
- Consumption
- BT700-T44-E45: 12.72W with E3845 at 1.91GHz and 4GB DDR3L memory down
OS Support
- OS Support
- Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 10 will be available upon request. Please contact DFI for more information.
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- 1,076,859 hrs @ 25°C; 638,931 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- Qseven form factor 70mm (2.76") x 70mm (2.76")
- Compliance
- Qseven specification revision 2.0
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 BT700 Board 1 Heat sink: A71-012004-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BT700-T40-E45 | 770-BT7004-D00G | Fanless, Intel Atom E3845, 4GB DDR3L memory onboard, -40 to 85°C |
| BT700-T44-E45 | 770-BT7004-100G | Fanless, Intel Atom E3845, 4GB DDR3L memory onboard, 4GB eMMC, -40 to 85°C |
| BT700-E40-E15 | 770-BT7004-600G | Fanless, Intel Atom E3815, 4GB DDR3L memory onboard, -20 to 70°C |
| BT700-B40-E26 | 770-BT7004-200G | Fanless, Intel Atom E3826, 4GB DDR3L memory onboard, 0 to 60°C |
| BT700-B40-E45 | 770-BT7004-800G | Fanless, Intel Atom E3845, 4GB DDR3L memory onboard, 0 to 60°C |
| BT700-T44-E45 | 770-BT7004-100G | Fanless, Intel Atom E3845, 4GB DDR3L memory onboard, 4GB eMMC, -40 to 85°C |
| BT700-T20-E45 | 770-BT7004-700G | Fanless, Intel Atom E3845, 2GB DDR3L memory onboard, -40 to 85°C |
| BT700-B20-N07 | 770-BT7004-900G | Fanless, Intel Atom N2807, 2GB DDR3L memory onboard, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Bracket | A31-028001-200G | |
| Heat spreader | A71-012005-000G | |
| Q7X-151 carrier board kit | 770-Q7X151-000G | |
| Heat spreader with heat sink | 761-BT7000-000G |
