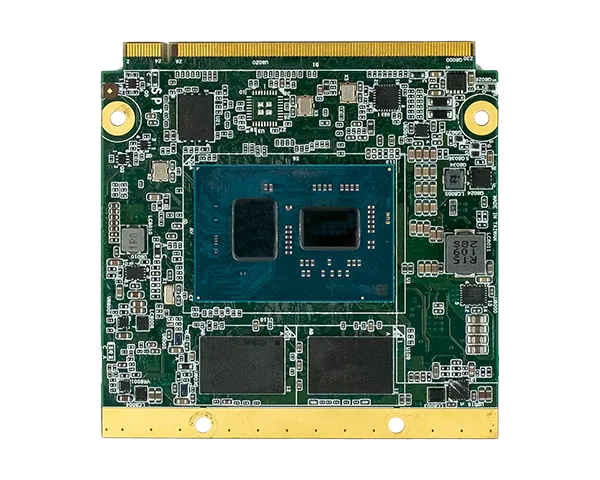

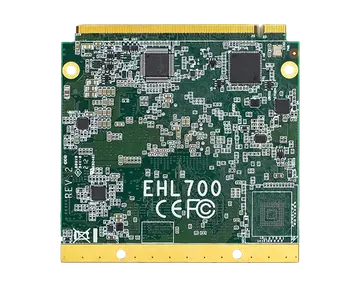

EHL700
Qseven, Intel Celeron Processor, 4GB/8GB LPDDR4, 4 PCIe x1, 1 DDI, 1 LVDS/eDP, 1 GbE, 2 USB 3.1, 8 USB 2.0
- 4GB/8GB LPDDR4 Single Channel Memory Down
- 1 DDI*, 1 eDP
- DP++ resolution supports up to 4096x2160 @ 60Hz
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#1G Ethernet
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#Intel® Atom® Processors Elkhart Lake X Series
Főbb jellemzőkKey features
- 4GB/8GB LPDDR4 Single Channel Memory Down
- 1 DDI*, 1 eDP
- DP++ resolution supports up to 4096x2160 @ 60Hz
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Celeron® Processor J6413 as default Intel Atom® x6000 Series Processors Intel Pentium® N and J Series Processors Intel Celeron® N and J Series Processors
- Memory
- 4GB(default)/8GB LPDDR4 Memory Down Dual Channel LPDDR4 3200MHz
- BIOS
- AMI SPI 256Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics Gen9LP Series
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DVI/DP++) 1 x eDP HDMI: resolution up to 3840x2160 @ 30 Hz DP++: resolution up to 4096x2160@60Hz eDP: resolution up to 3840x2160 @ 60Hz
- Dual Displays
- eDP + DDI (Dual)
Expansion
- Interface
- 4 x PCIe x1 (Gen 3) 1 x SDIO 1 x LPC 1 x I2C 1 x SMBus 1 x SPI 1 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel I211 / I210
I/O
- USB
- 1 x USB 3.1 + 8 x USB 2.0 / 2 x USB 3.1 + 6 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- eMMC
- Supports up to 128GB eMMC, NC as default eMMC 5.1, BGA-153 Ball 8~128G(MLC mode)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- FTPM
- Enables or Disables the BIOS support for the security device
Power
- Type
- 5V, 5VSB, VCC_RTC
- Consumption
- Typical: x6212RE: 12V @ 0.98A (11.76W) Max.: x6212RE:12V @ 1.45A (17.4W)
OS Support
- OS Support
- Windows 10 IoT Enterprise 64-bit / Linux (Intel graphic driver available)
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C, -5 to 65°C(opt.) Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH, Storage: 5 to 90% RH
- MTBF
- 773,944 hrs @ 25°C; 335,063 hrs @ 45°C; 138,841 hrs @ 60°C; 29,888 hrs @ 85°C
Mechanism
- Dimensions
- Qseven form factor 70mm (2.76") x 70mm (2.76")
- Compliance
- Qseven specification revision 2.1
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- • 1 EHL700 board • 1 Heat sink
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EHL700-TC83- 6425RE | 770-EHL7002-100G | Intel Atom® x6425RE, 8GB LPDDR4 Memory Down, eDP, 1 USB 3.1, 8 USB 2.0, 32GB eMMC, -40 to 85°C |
| EHL700-TC83-6414RE | 770-EHL7002-200G | Intel Atom® x6414RE, 8 GB LPDDR4 Memory Down, eDP, 1 USB 3.1, 8 USB 2.0, 32GB eMMC, -40 to 85°C |
| EHL700-BC43-6212RE | 770-EHL7002-300G | Intel Atom® x6212RE, 4 GB LPDDR4 Memory Down, eDP, 1 USB 3.1, 8 USB 2.0, 32GB eMMC, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Qseven Carrier Board | 770-Q7X154-000G | Q7X-151: R.D1 F/G CARRIER BOARD FOR AL700 RoHS |
| Heat spreader | A71-808348-000G | HEATSPREADER, AL6063-T5 70*64*8mm, STAND OFF TYPE, FOR EHL700 E-Serial CPU, AMF-493(FEVER)RoHS |
