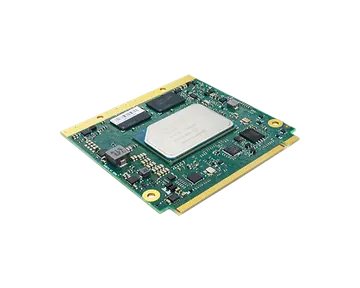

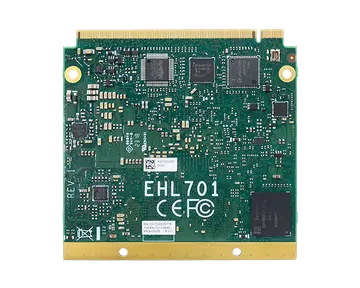

EHL701
Qseven, Intel Atom® x6000 Series Processors, LPDDR4, 4 PCIe x1, 1 Intel GbE, 2 USB 3.1, 8 USB 2.0, DDI, eDP/LVDS
- 4GB/8GB/16GB LPDDR4 Dual Channel Memory Down
- Dual Displays: 1 DDI* + 1 eDP/LVDS
- DP++ resolution supports up to 4096x2160 @ 60Hz
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
Főbb jellemzők
Tanúsítványok
#LVDS
#eDP
#Slim Bootloader
#IoT
#Intel
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 4GB/8GB/16GB LPDDR4 Dual Channel Memory Down
- Dual Displays: 1 DDI* + 1 eDP/LVDS
- DP++ resolution supports up to 4096x2160 @ 60Hz
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.1, 8 USB 2.0
System
- Processor
- Intel Atom® x6000 Series Processors Intel Pentium® N and J Series Processors Intel Celeron® N and J Series Processors
- Memory
- 4GB/8GB/16GB LPDDR4 Memory Down Dual Channel LPDDR4 3200MHz
- BIOS
- AMI SPI 256Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics Gen9LP Series
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DVI/DP++) 1 x eDP/LVDS HDMI: resolution up to 3840x2160 @ 30Hz DP++: resolution up to 4096x2160 @ 60Hz eDP: resolution up to 3840x2160 @ 60Hz
- Dual Displays
- eDP/LVDS + DDI
Expansion
- Interface
- 4 x PCIe x1 (Gen 2) 1 x SDIO 1 x LPC 1 x I2C 1 x SMBus 1 x SPI 1 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel I211
I/O
- USB
- 1 x USB 3.1 + 8 x USB 2.0 / 2 x USB3.1 + 6 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- eMMC
- Supports up to 128GB eMMC, NC as default eMMC 5.1, BGA-153 Ball 8~128G(MLC mode)
- GPIO
- 1 x 4-bit GPIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM or fTPM (Optional)
Power
- Type
- 5V, 5VSB, VCC_RTC
- Consumption
- Typical: x6212RE: 12V @ 0.98A (11.76W) Max.: x6212RE:12V @ 1.45A (17.4W)
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit
- Linux
- Linux (Intel graphic driver available)
Environment
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 773,944 hrs @ 25°C; 335,063 hrs @ 45°C; 138,841 hrs @ 60°C; 29,888 hrs @ 85°C
- Operating Temperature
- 0 to 60°C -40 to 85°C -5 to 65°C(opt.)
- Storage Temperature
- -40 to 85°C
Mechanism
- Dimensions
- Qseven form factor 70mm (2.76") x 70mm (2.76")
- Compliance
- Qseven specification revision 2.1
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA
Packing List
- Packing List
- • EHL701 Board --770-EHL7011-000G --770-EHL7011-100G • Cooler --A71-112000-030G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EHL701-TC83-6211E | 770-EHL7011-000G | Intel Atom® x6211E, 8GB LPDDR4 Memory Down, LVDS, 1 USB 3.1, 8 USB 2.0, 32GB eMMC, -40 to 85°C |
| EHL701-TC80-6211E | 770-EHL7011-100G | Intel Atom® x6211E, 8GB LPDDR4 Memory Down, LVDS, 1 USB 3.1, 8 USB 2.0, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat Spreader | A71-808348-010G | |
| Qseven Carrier Board | 770-Q7X154-000G |
