DFI Networker Kft.

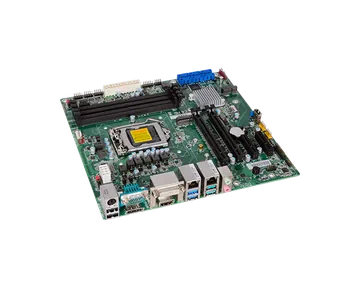

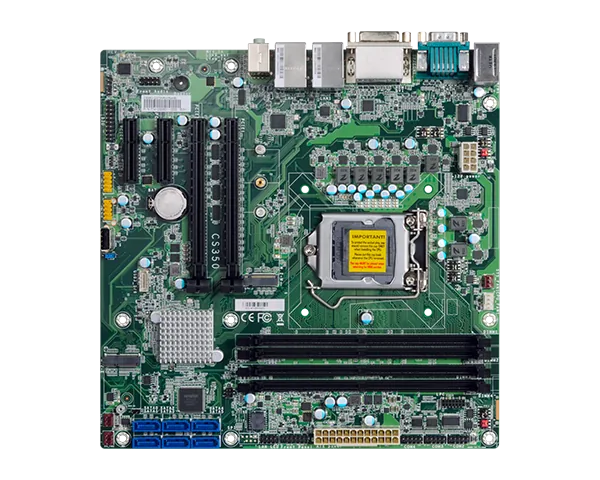

CS350-C246

microATX, 8th/9th Gen Intel® Core™, 4 DDR4, 2 PCIe x16, 2 PCIe x4, 1 PCI, 1 M.2 M key, 1 x M.2 E key, 1 DP++, 1 DVI-D, 1 HDMI

  • 8th/9th Gen Intel® Core™ with Intel® C246
  • 4 DDR4 ECC/Non-ECC DIMM up to 128GB
  • Three display ports: DVI-D, DP++, HDMI 1.4b supports triple independent displays
  • DP++ resolution up to 4096x2160 @ 60Hz; DVI-D resolution up to 1920x1200 @ 60Hz; HDMI 1.4b resolution up to 4096x2160@ 24Hz
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory)

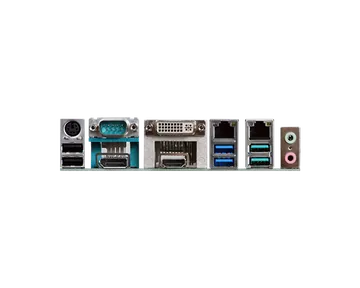

  • Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
  • 10-Year CPU Life Cycle Support Until Q2' 28 (Based on Intel IOTG Roadmap)
KaphatóLaunched Megvásárlás (US)Buy online (US)
4K2K Display
PCIe x16
DP
DDR4
Triple Independent Display
RoHS Certification
CE Certification
FCC Certification
#IoT #Intel #4K2K Display #PCIe x16 #Windows #Linux #HDMI #DVI-I #DVI-D #DP #DDR4 #RoHS Certification #CE Certification #FCC Certification

Főbb jellemzőkKey features

  • 8th/9th Gen Intel® Core™ with Intel® C246
  • 4 DDR4 ECC/Non-ECC DIMM up to 128GB
  • Three display ports: DVI-D, DP++, HDMI 1.4b supports triple independent displays
  • DP++ resolution up to 4096x2160 @ 60Hz; DVI-D resolution up to 1920x1200 @ 60Hz; HDMI 1.4b resolution up to 4096x2160@ 24Hz
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory)
  • Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
  • 10-Year CPU Life Cycle Support Until Q2' 28 (Based on Intel IOTG Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
