DFI Networker Kft.

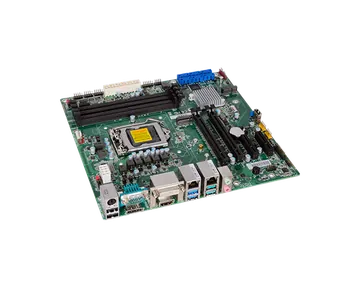

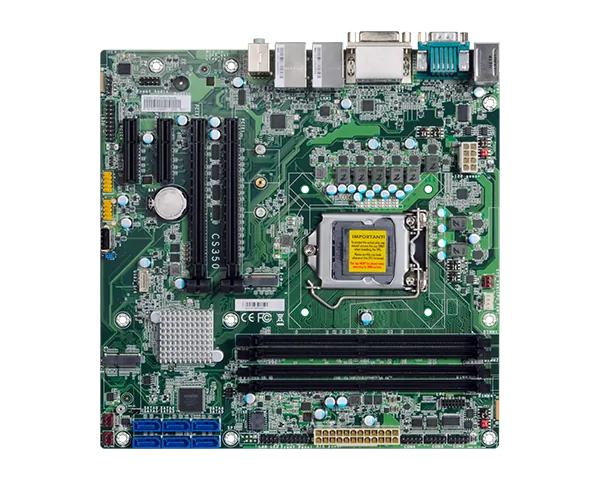

CS350-Q370

microATX, 8th/9th Gen Intel® Core™, 4 DDR4, 2 PCIe x16, 2 PCIe x4, 1 PCI, 1 M.2 M key, 1 x M.2 E key, 1 DP++, 1 DVI-D, 1 HDMI

  • 8th/9th Gen Intel® Core™ with Intel® Q370

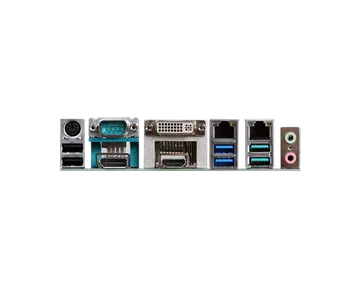

  • Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
  • 4 DDR4 DIMM up to 128GB
  • Three display ports: DVI-D, DP++, HDMI 1.4b supports triple independent displays
  • DP++ resolution up to 4096x2160 @ 60Hz, DVI-D resolution up to 1920x1200 @ 60Hz, HDMI 1.4b resolution up to 4096x2160@ 24Hz
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 1 M.2 E key, 1 M.2 M key (support Optane Memory)
  • 10-Year CPU Life Cycle Support Until Q2' 28 (Based on Intel IOTG Roadmap)
KaphatóLaunched Megvásárlás (US)Buy online (US)
4K2K Display
DVI-D
DP
DDR4
Triple Independent Display
RoHS Certification
CE Certification
FCC Certification
#IoT #Intel #4K2K Display #PCIe x16 #Windows #HDMI #DVI-I #DVI-D #DP #DDR4 #RoHS Certification #CE Certification #FCC Certification

Főbb jellemzőkKey features

  • 8th/9th Gen Intel® Core™ with Intel® Q370
  • Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
  • 4 DDR4 DIMM up to 128GB
  • Three display ports: DVI-D, DP++, HDMI 1.4b supports triple independent displays
  • DP++ resolution up to 4096x2160 @ 60Hz, DVI-D resolution up to 1920x1200 @ 60Hz, HDMI 1.4b resolution up to 4096x2160@ 24Hz
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 1 M.2 E key, 1 M.2 M key (support Optane Memory)
  • 10-Year CPU Life Cycle Support Until Q2' 28 (Based on Intel IOTG Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
