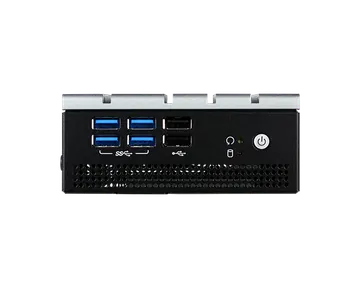

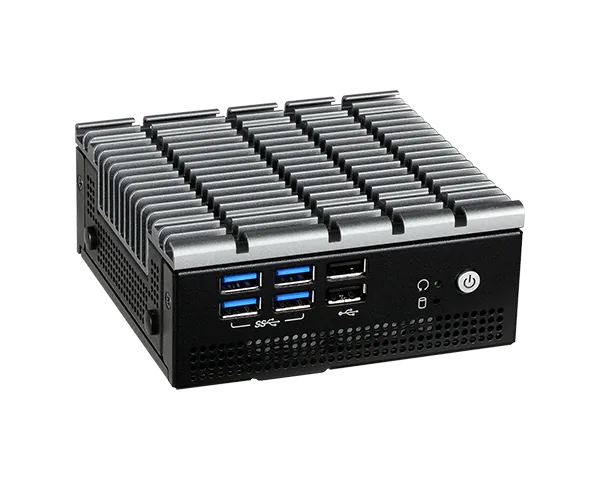

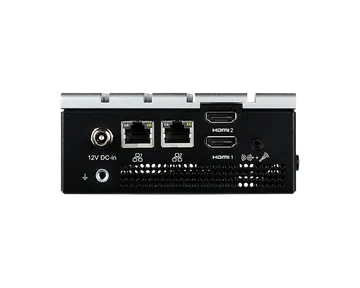

EB100-KU, Fanless Embedded System with 6th/7th Gen Intel® i3/i5/i7 or Celeron®, designed with powerful and NUC-sized which is ideal for Infrared Inspection/Digital Signage/IoT Gateway applications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EB100-KU0061-73 | 750-EB1000-000G | Fanless, i5-7300U, 2 DDR4 SODIMM Socket, 4 USB3.0, 2 USB2.0, 2 LAN, 2 HDMI, 1 Audio (Line out & Mic in), 1 M.2 (2280), 1 mini-PCIe(half size), F/G SYSTEM RoHS |
| EB100-KU0061-76 | 750-EB1000-100G | Fanless, i7-7600U, 2 DDR4 SODIMM Socket, 4 USB3.0, 2 USB2.0, 2 LAN, 2 HDMI, 1 Audio (Line out & Mic in), 1 M.2 (2280), 1 mini-PCIe(half size), F/G SYSTEM RoHS |
| EB100-KU0061-71 | 750-EB1000-200G | Fanless, i3-7100U, 2 DDR4 SODIMM Socket, 4 USB3.0, 2 USB2.0, 2 LAN, 2 HDMI, 1 Audio (Line out & Mic in), 1 M.2 (2280), 1 mini-PCIe(half size), F/G SYSTEM RoHS |
| EB100-KU0061-63 | 750-EB1000-300G | Fanless, i5-6300U, 2 DDR4 SODIMM Socket, 4 USB3.0, 2 USB2.0, 2 LAN, 2 HDMI, 1 Audio (Line out & Mic in), 1 M.2 (2280), 1 mini-PCIe(half size), F/G SYSTEM RoHS |
| EB100-KU0061-66 | 750-EB1000-400G | Fanless, i7-6600U, 2 DDR4 SODIMM Socket, 4 USB3.0, 2 USB2.0, 2 LAN, 2 HDMI, 1 Audio (Line out & Mic in), 1 M.2 (2280), 1 mini-PCIe(half size), F/G SYSTEM RoHS |
| EB100-KU0061-61 | 750-EB1000-500G | Fanless, i3-6100U, 2 DDR4 SODIMM Socket, 4 USB3.0, 2 USB2.0, 2 LAN, 2 HDMI, 1 Audio (Line out & Mic in), 1 M.2 (2280), 1 mini-PCIe(half size), F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Memory | 785-RSOD44G 785-RSOD48G 785-RSOD416G | SODIMM, DDR4 Module, 4GB, RoHS SODIMM, DDR4 Module, 8GB, RoHS SODIMM, DDR4 Module, 16GB, RoHS |
| M.2 | 785-M264GM80 785-M2128GM80 785-M2256GM80 785-M2512GM80 785-M21TM80 | M.2 2280, 64GB, MLC M.2 2280, 128GB, MLC M.2 2280, 256GB, MLC M.2 2280, 512GB, MLC M.2 2280, 1TB, MLC |
| Power Adapter | 671-106012-000G | 60W, 12V/5A, Level 6, RoHS |
| Wi-Fi Kit | 761-AP1235-000G | Wi-Fi+BT Kit, Wi-FI+BT Module, W/Antenna, SMA Cable/200mm, 802.11 abgn/ac, AP12356 (ENLI), Mini PCIe Bracket, Screw *4 RoHS |
| Wall/Vesa Mount | 761-EB1000-000G | Accessory Wall/Vesa Mount Kits EB100-KU RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
