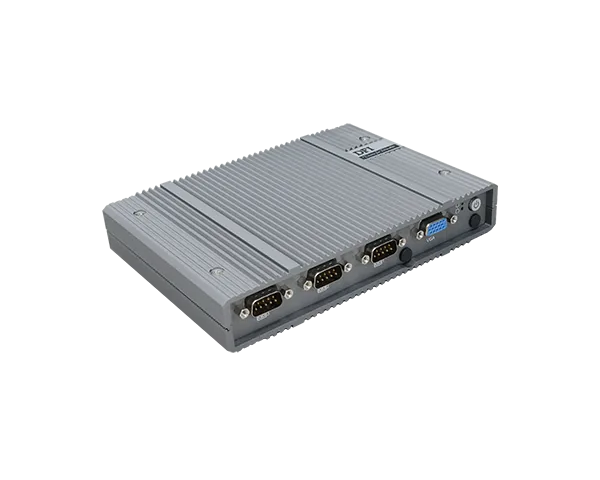

Fanless Embedded System, Intel® Processor N-series/Atom® Processor X Series, On Board OOB built-in, 2.5 GbE, DDR5, VGA/HDMI/USB-C
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC700-ADN | 750-EC7004-000G | Sys Height 33mm, Intel® Atom® X7425E, 16GB Memory down, -5 to 60°C, I/O( 3 USB-A + 1 USB-C, 2 2.5GbE + 1 1 GbE, 2 RS232/422/485, 1 RS232, 1 RS232/DIO), Display( 1 HDMI, 1 VGA, 1 DP 1.2 Alt. Mode via USB-C), Expansion( M.2 M key: PCIe/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe), DFI OOB |
| EC700-ADN | 750-EC7004-100G | Sys Height 33mm, Intel® Atom® X7211E, 8GB Memory down, -5 to 60°C, I/O( 3 USB-A + 1 USB-C, 2 2.5GbE + 1 1 GbE, 2 RS232/422/485, 1 RS232, 1 RS232/DIO), Display( 1 HDMI, 1 VGA, 1 DP 1.2 Alt. Mode via USB-C), Expansion( M.2 M key: PCIe/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe), DFI OOB |
| EC700-ADN | 750-EC7004-700G | Sys Height 33mm, Intel® Processor N97, 4GB Memory down, -5 to 60°C, I/O(4 USB-A, 2 2.5GbE + 1 1GbE, 2 RS232/422/485, 1 RS232, 1 RS232/DIO), Display( 1 HDMI, 1 VGA), Expansion( M.2 M key: PCIe/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe) |
| Item Name | Part Number | Description |
|---|---|---|
| Adapter | 671-106012-000G | 60W 12V inlet C14, locable DC Jack 5.5/2.5mm, cable length 1500mm |
| Power Cord | 332-700010-201G A81-004003-000G A81-000001-000G A81-000046-000G | Power Cord US 3pin 1830mm Length Power Cord EU 2pin 1830mm Length Power Cord China 3pin 1830mm Length Power Cord JP 3pin 1830mm length (with DFI PSE logo) |
| Mount Kits | 761-EC7004-000G 761-EC7004-100G 761-EC7004-200G 761-EC7004-300G | EC700-ADN Din Rail Kit for 33mm height chassis EC700-ADN/EC710-ADN Wall mount Kit EC700-ADN/EC710-ADN VESA mount Kit EC710-ADN Din Rail Kit for 43mm height chassis |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
