DFI Networker Kft.

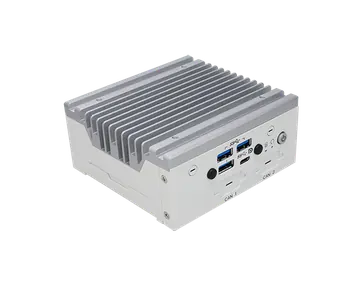

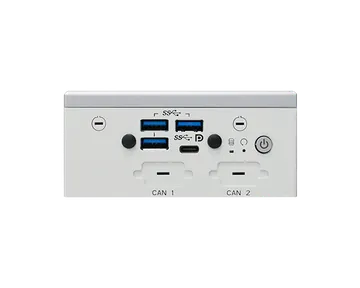

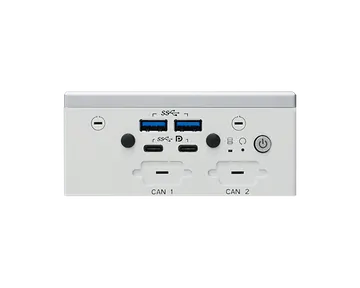

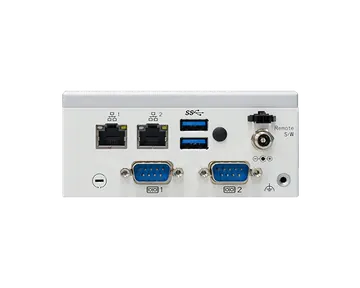

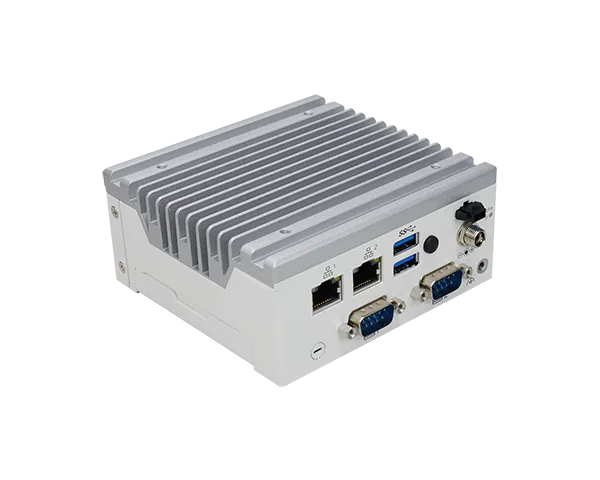

EB100-MTU

Industrial NUC compact system, Intel Core Ultra Processor, 1 DDR5 SODIMM, 2 HDMI, up to 2 LAN, 4 USB, 2 COM, 2 USB-C

  • Industrial NUC compact system
  • Intel® Ultra 5 125U / Ultra 7 155U CPU (TDP 12W)
  • One DDR5 SODIMM, up to 32GB
  • Up to -20°C~50°C operation with passive cooling, 12VDC power in
  • Ultra compact size (W x H x D): 111 x 50 x 106 mm
  • Supports M.2 2230 E-Key/M.2 2280 M-Key, Storage: M.2 2280 M-key (NVME)
  • I/O: 2 2.5GbE (TSN/TCC), 4 USB 3.2, 2 Type-C, 1 DB9 (RS232/422/485), 1 DB9 (RS232)
  • Supports M.2 Hailo AI accelerator card(M.2 E key, optional)
ElőzetesPreliminary
Compact Size
Dual Display
DDR5
Rich I/O
AI
RoHS Certification
CE Certification
FCC Certification
#DDR5 #Windows 10 #Edge AI Computing #Intel® Core™ Ultra processors #AI #Windows 11 #Intel #Compact PC #Compact Size #Windows #HDMI #12V DC-in #RoHS Certification #CE Certification #FCC Certification #2.5G Ethernet

Főbb jellemzőkKey features

  • Industrial NUC compact system
  • Intel® Ultra 5 125U / Ultra 7 155U CPU (TDP 12W)
  • One DDR5 SODIMM, up to 32GB
  • Up to -20°C~50°C operation with passive cooling, 12VDC power in
  • Ultra compact size (W x H x D): 111 x 50 x 106 mm
  • Supports M.2 2230 E-Key/M.2 2280 M-Key, Storage: M.2 2280 M-key (NVME)
  • I/O: 2 2.5GbE (TSN/TCC), 4 USB 3.2, 2 Type-C, 1 DB9 (RS232/422/485), 1 DB9 (RS232)
  • Supports M.2 Hailo AI accelerator card(M.2 E key, optional)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
