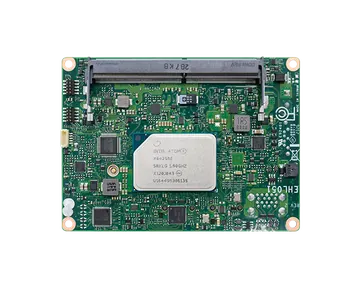

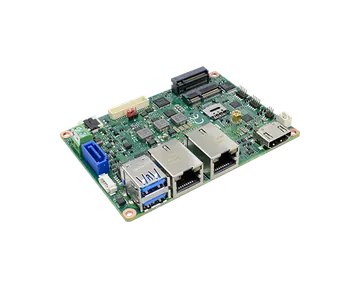

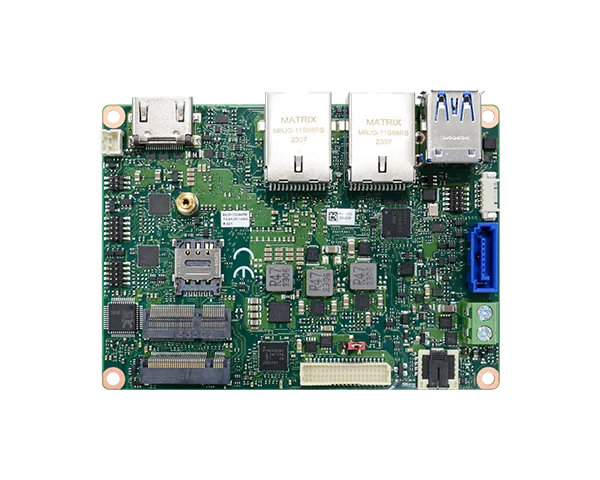

EHL051
2.5" Pico-ITX, Intel® Atom Processor, 1 DDR4-3200 SODIMM, 1 HDMI, 1 LVDS, 1 M.2 E Key, 1 M.2 B Key, 1 SATA, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, -5 to 65°C, -40 to 85°C
- Intel® Atom Processor (Code Name: Elkhart Lake)
- 1 DDR4 3200MHz SODIMM
- Supports 4K/2K resolution
- Dual Displays: HDMI + LVDS
- Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 SATA
- Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#LVDS
#Edge AI Computing
#Intel
#Fanless Design
#Compact Size
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#High-Performance
#Intel® Atom® Processors Elkhart Lake X Series
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom Processor (Code Name: Elkhart Lake)
- 1 DDR4 3200MHz SODIMM
- Supports 4K/2K resolution
- Dual Displays: HDMI + LVDS
- Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 SATA
- Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0
System
- Processor
- Intel® Atom Processor, Elkhart Lake 【Industrial】 Intel® Atom x6425RE, 4C, 1.9GHz, 12W Intel® Atom x6416RE, 4C, 1.7GHz, 9W (Performance Update) Intel® Atom x6214RE, 2C, 1.4GHz, 6W (Performance Update) 【Embedded】 Intel® Atom x6425E, 4C, 2.0GHz(3.0GHz), 12W Intel® Atom x6413E, 4C, 1.5GHz(3.0GHz), 9W Intel® Atom x6211E, 2C, 1.3GHz(3.0GHz), 6W 【PC Client】 Intel® Pentium J6412, 4C, 2.0GHz(2.6GHz),10W Intel® Celeron N6210, 2C 1.2GHz(2.6GHz), 6.5W
- Memory
- Single DDR4-3200 SODIMM Up to 32GB (in-band ECC support in embedded/industrial SKU)
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x HDMI 1 x LVDS HDMI: resolution up to 4096×2160 @24Hz LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @60Hz
- Dual Displays
- HDMI + LVDS
Expansion
- Interface
- 1 x M.2 2230 E Key (PCIe/USB2.0) (for Wi-Fi/BT) 1 x M.2 3042/2242 B Key (PCIe*/USB3.0/SATA), optional with 1 x SIM slot. (for 4G/5G) *PCIe share with SATA LED (BOM Optional)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 2 x Intel® I226-V/IT (10/100/1000Mbps)

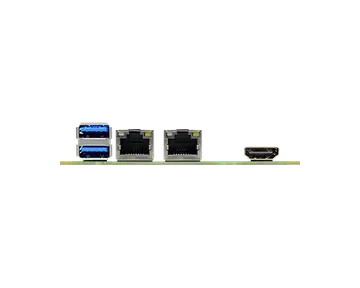

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 2 x USB 3.2 Gen2
- Display
- 1 x HDMI
Internal I/O
- Serial
- 2 x RS-232/422/485 (1.27mm pitch)
- USB
- 2 x USB 2.0 (1.27mm pitch)
- Display
- 1 x LVDS LCD Panel Connector 1 x LCD/Backlight Power (5V/12V)
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x 5V SATA Power (support SATA LED by BOM option)
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus/I2C (Opt.) *Enable smart battery interface upon request.
- Front Panel
- 1 x front panel (power button/reset button, power LED, HDD act LED)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM2.0
Power
- Type
- Single 12V +/-10% DC
- Connector
- 2-pin Terminal Block 2-pin Vertical Type Connector (Opt.)
- Consumption
- Typical: J6426:12V @ 1.1A (13.2Watt) Max.: J6426:12V @ 1.6A (19.2Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- (UEFI Only) Windows 10 IoT Enterprise (64-bit) Windows 11 GAC Linux
Environment
- Temperature
- Operating: -5 to 65°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- x6425RE: 563,338 hrs @ 25°C; 391,802 hrs @ 45°C ; 278,646 hrs @ 60°C; 146,635 hrs @ 85°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6 mm Top Side: 15 mm Bottom Side: 8 mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA, KC
Packing List
- Packing List
- • 1 EHL051 board • 1 Serial ATA data cable (Length: 152mm), A81-002000-000G • 1 Y cable for SATA and inverter power (Length: 155mm), A81-020016-018G • 1 Heat spreader (Height: 11mm) ---- for x6000 series, A71-808359-000G ---- for N/J series, A71-808359-010G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EHL051-TCD-6425RE | 770-EHL0511-000G | Intel® Atom x6425RE, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| EHL051-TCD-6416RE | 770-EHL0511-100G | Intel® Atom x6416RE, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| EHL051-TCD-6214RE | 770-EHL0511-200G | Intel® Atom x6214RE, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| EHL051-TCD-6425E | 770-EHL0511-300G | Intel® Atom x6425E, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| EHL051-TCD-6413E | 770-EHL0511-400G | Intel® Atom x6413E, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| EHL051-TCD-6211E | 770-EHL0511-500G | Intel® Atom x6211E, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| EHL051-BCD-J6412 | 770-EHL0511-600G | Intel® Pentium J6412, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C |
| EHL051-BCD-N6210 | 770-EHL0511-700G | Intel® Celeron N6210, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | A81-001084-016G | Length: 200mm |
| 1 COM port cable | A81-015050-016G | Length: 300mm |
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
| 2 pole terminal to DC Jack cable | A81-004013-000G | |
| 1 Audio cable | A81-022037-016G | Length: 160mm |
| 1 Heat sink for x6000 series -40~85°C | A71-008182-020G | Height: 22.6mm |
| 1 Heat sink for N/J series -6~65°C | A71-008182-010G | Height: 18.9mm |
