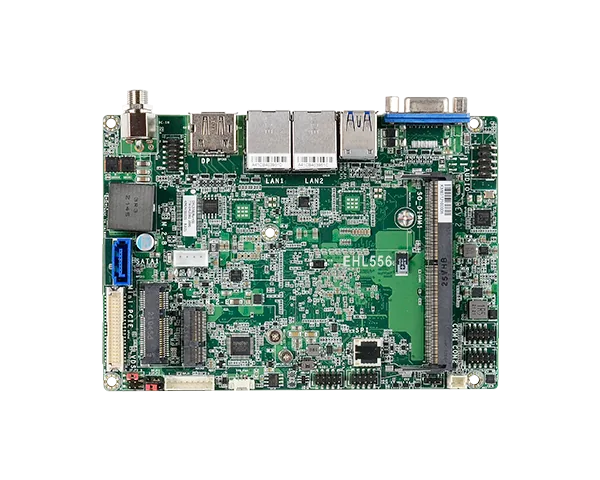

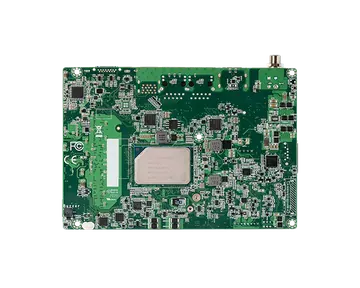

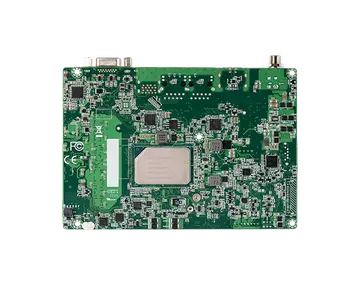

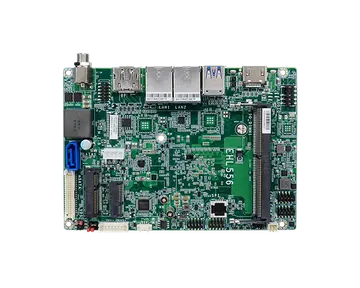

EHL556
3.5" SBC, Intel® Atom® X Series Processor, 1 DDR4, 1 M.2 E Key, 1 Mini-PCIe, 1 I2C, 1 HDMI, 1 DP++, 1 LVDS/eDP, 2 LAN, 2 USB 3.1 Gen2, 2 USB 2.0, 2 COM, 1 SATA 3.0
- Intel® Atom® X Series Processor 3.5" SBC
- 1 DDR4-3200 SODIMM up to 32GB
- 4K High Resolution: Supports 4K/ 2K resolution
- Triple Independent Displays: 1 HDMI, 1 DP++, 1 LVDS/eDP
- Multiple Expansion: 1 M.2 E Key, 1 Mini- PCIe, 1 I2C
- Rich I/O: 2 LAN, 2 USB 3.1 Gen2, 2 USB 2.0, 2 COM, 1 SATA 3.0
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#IoT
#Intel
#Fanless Design
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#Intel® Atom® Processors Elkhart Lake X Series
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® X Series Processor 3.5" SBC
- 1 DDR4-3200 SODIMM up to 32GB
- 4K High Resolution: Supports 4K/ 2K resolution
- Triple Independent Displays: 1 HDMI, 1 DP++, 1 LVDS/eDP
- Multiple Expansion: 1 M.2 E Key, 1 Mini- PCIe, 1 I2C
- Rich I/O: 2 LAN, 2 USB 3.1 Gen2, 2 USB 2.0, 2 COM, 1 SATA 3.0
System
- Processor
- Intel Atom Elkhart Lake • Industrial： Atom, x6425RE, 4C, 1.9GHz,12W Atom, x6414RE, 4C, 1.5GHz,9W • Embedded： Atom, x6425E, 4C, 2.0GHz(3.0GHz),12W Atom, x6413E, 4C, 1.5GHz(3.0GHz),9W • PC Client： Celeron N6210, 2C 1.2GHz(2.6GHz), 6.5W
- Memory
- Single DDR4-3200 SODIMM Up to 32GB (in-band ECC support in embedded/industrial SKU)
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x HDMI (or BOM option change to VGA) 1 x DP++ 1 x LVDS or eDP + Backlight HDMI: resolution up to 1920x1080 @60Hz DP++: resolution up to 4096x2304 @60Hz LVDS: resolution up to 1920x1200 @60Hz
- Triple Displays
- HDMI + DP++ + LVDS/eDP
Expansion
- Interface
- 1 x M.2 2230 E key (USB/PCIe) (Support WiFi 5 & WiFi 6) 1 x mini-PCIe (USB/PCIe) I2C
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 2 x Intel® I225-IT PCIe

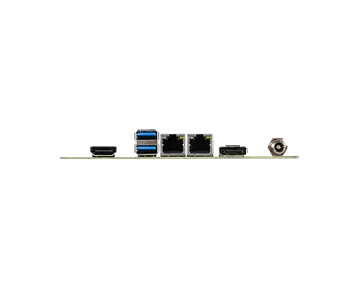

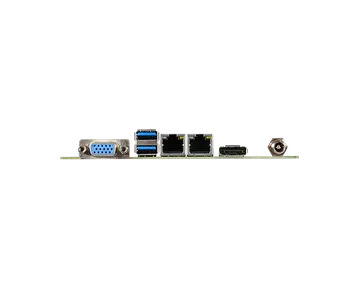

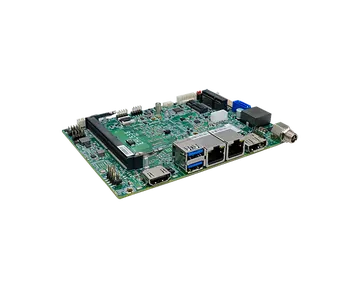

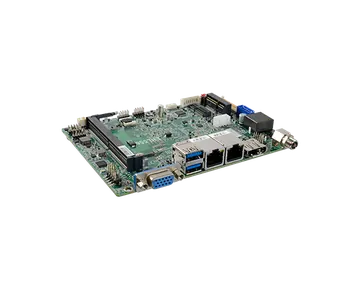

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 2 x USB 3.1 Gen2 10Gbps
- Display
- 1 x DP++ 1 x VGA
Internal I/O
- Serial
- 1 x RS232/422/485 + 1 x RS232, or 1 x RS232/422/485 + 8bit DIO (BIOS select)
- USB
- 4 x USB 2.0
- Display
- 1 x LVDS or eDP + Backlight
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 1 x SATA 3.0 1 x 5V SATA Power (support SATA HDD LED via front panel)
- Front Panel
- 1 x front panel (power button/reset button, power LED, HDD act LED)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- Wide Range 9~36VDC
- Connector
- DC Jack (or vertical type 4pin connector)
- Consumption
- TBD
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT 2019 LTSC Windows 10 IoT 2021 LTSC Linux
- Linux
- Linux
Environment
- Temperature
- Operating: -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 532,533 hrs @25°C; 362,324 hrs @45°C; 253,192 hrs @60°C; 194,923 hrs @70°C; 129,169 hrs @ 85°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
Standards and Certifications
- Certifications
- CE, FCC Class B (TBD in later stage), RoHS, UKCA
Packing List
- Packing List
- • 1 EHL556 board • 1 SATA cable (Length: 300mm), 332-553001-205G • 1 SATA power cable (Length: 250mm), A81-004041-016G • 1 COM cable (Length: 250mm), 332-753040-000G • 1 Heatsink -20 to 70°C (Height: 29mm), A71-008357-010G (PC client CPU) • 1 Heatsink -40 to 80°C (Height: 29mm), A71-008357-000G (Industry CPU)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EHL556 | 770-EHL5563-000G | Celeron N6210, HDMI+DP, eDP, 2LAN, 1COM+DIO, mSATA, I2C, TPM2.0, Heat sink, Wide Temp. -20~70°C |
| EHL556 | 770-EHL5563-003G | Celeron N6210, eDP+VGA, 2LAN, I2C, TPM2.0, Wide Temp. -20~70°C |
| EHL556 | 770-EHL5563-102G | Atom x6413E, LVDS+VGA, 2LAN, TPM2.0, Wide Temp. -40~85°C |
| EHL556 | 770-EHL5563-200G | Atom x6425E, HDMI+DP, LVDS, 2LAN, 2COM, mSATA, I2C, TPM2.0, Heat sink, Wide Temp. -40~85°C |
| EHL556 | 770-EHL5563-203G | Atom x6425E, LVDS+VGA, 2LAN, TPM2.0, Wide Temp. -40~85°C |
| EHL556 | 770-EHL5563-300G | Atom x6425E, HDMI+DP, LVDS, 2LAN, 1COM+DIO, mPCIe, I2C, TPM2.0, Heat sink, Wide Temp. -40~85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106012-000G 671-106013-000G | 60W, 12V, DC Jack, 0°C ~ 40°C 60W, 12V, DC Jack, -30°C ~ 70°C |
| USB 2.0 cable | A81-001032-016G | Length: 200mm |
| Heat spreader | A71-808363-010G A71-808363-000G | HEATSPREADER, AL1050 146*102*7.5mm, FOR EHL556 BAREDIE CPU (J6413, J6412, J646, N621, N6210, N6415) HEATSPREADER, AL1050 146*102*7.5mm, FOR EHL556 IHS CPU (x6211E, x6413E, x6425E, x6414RE, x6425RE) |
