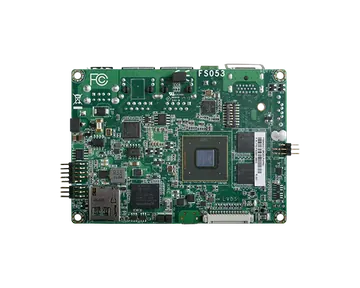

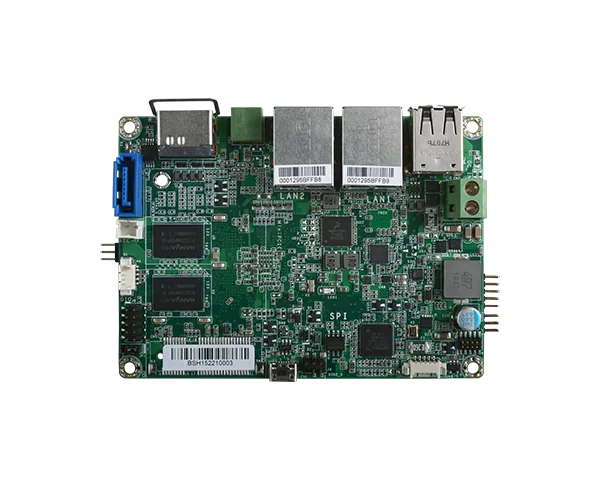

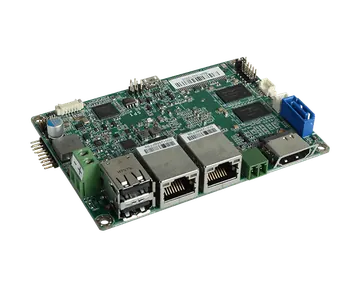

FS053
DFI's Industrial embedded motherboard provides the most dominating ones: PICO-ITX, SBC, ATX, and other kinds of industrial boards with different attributes.
- NXP i.MX6 Processor 2.5" Pico-ITX
- Expansion: 1 Mini PCIe, 1 SD
- DDR3L SDRAM memory down , up to 4GB.
- Dual independent displays: HDMI + LVDS
- Rich I/O: 2 GbE, 2 COM, 4 USB 2.0
Főbb jellemzők
Tanúsítványok
#ARM
#Mini PCIe
#Android
#HDMI
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- NXP i.MX6 Processor 2.5" Pico-ITX
- Expansion: 1 Mini PCIe, 1 SD
- DDR3L SDRAM memory down , up to 4GB.
- Dual independent displays: HDMI + LVDS
- Rich I/O: 2 GbE, 2 COM, 4 USB 2.0
System
- Processor
- NXP i.MX6 Cortex-A9 Dual Lite, 1.0 GHz NXP i.MX6 Cortex-A9 Quad, 1.0 GHz
- Memory
- 1GB/2GB SDRAM Memory Down (default), 4GB (available upon request) Single Channel DDR3L 1600MHz/1866MHz
- BIOS
- 4MB NOR Flash
Graphics
- Display
- 1 x HDMI 1 x LVDS HDMI: resolution up to 1920x1080 @ 60 Hz LVDS: single channel, resolution up to 1366x768 @ 60Hz
- Single/Dual Displays
- Yocto: HDMI or LVDS (Default) Android: HDMI + LVDS (available upon request)
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB)
Ethernet
- Controller
- 1 x ATHEROS AR8033 Ethernet (10/100/1000Mbps) 1 x LAN7500 Ethernet (10/100/1000Mbps)
Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-485 (2-wire)
- USB
- 2 x USB 2.0 1 x USB 2.0 OTG Port
- Display
- 1 x HDMI
I/O
- eMMC
- Supports 8GB, 16GB and 32GB eMMC onboard
Internal I/O
- Serial
- 1 x RS-232/422/485 (8-wire)
- USB
- 1 x USB 2.0
- Display
- 1 x LVDS LCD Panel Connector
- SATA
- 1 x SATA 2.0 (up to 3Gb/s) (Quad processor only)
- DIO
- 1 x 8-bit DIO
- SD
- 1 x Micro SD Slot
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 9~36V DC
- Connector
- Terminal block (2-pin)
- Consumption
- Typical: 12V @ 0.355A (4.26Watt) Max.: 12V @ 0.631A (7.58Watt)
OS Support
- OS Support
- Yocto (1.8, Default Preloaded on eMMC) Android (5.1.1)
Environment
- Temperature
- Operating: -20 to 70°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 95% RH Storage: 5 to 95% RH
- MTBF
- 486,335 hrs @ 25°C; 342,613 hrs @ 45°C ; 237,430 hrs @ 60°C
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6mm Top Side: 16.15mm, Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 FS053 board 1 terminal block for RS485 342-361021-000 1 Heat spreader (Height: 11mm) A71-808303-000G Note: Please choose "FS053 product page > Download button" to download the Driver.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| FS053-EC-28QD | 770-FS0533-000G | Fanless, i.MX6 Quad Lite 1.0GHz, 2GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, -20 to 70°C |
| FS053-EC-18DL | 770-FS0533-100G | Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, -20 to 70°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat sink | A71-008105-000G | Height: 16.8mm |
| COM cable | A81-015044-001G | Length: 250mm, 1x COM ports |
| USB 2.0 port cable | A81-001058-016G | Length: 200mm, 1x USB ports |
| Power cable for SATA and LCD backlight | A81-020016-018G | Length: 155mm |
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
