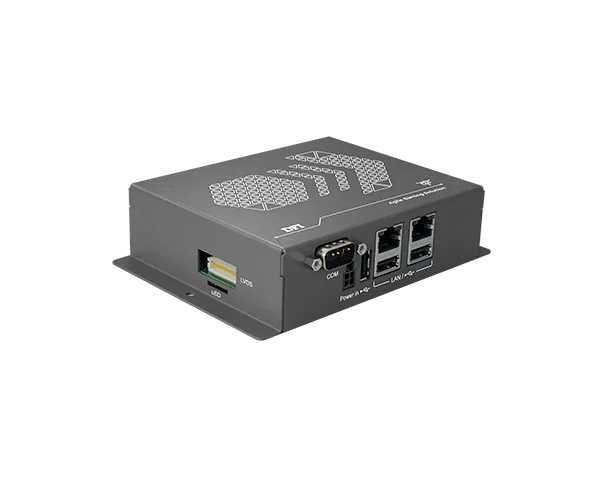

GM310-8MM
Gaming Embedded System, NXP® i.MX 8M mini applications processors, SRAM, LPDDR4 Memory Down, 1 Mini-PCIe, 1 LVDS, 2 GbE, 1 RS-232/422/485, 1 RS232 with 8 data bits, 3 USB 2.0, 1 Line out, 1 uSD, Yocto Linux, Reliable Data Security, -5~60°C
- NXP® i.MX 8M mini applications processors
- Reliable Data Security (RSA key、SHA256、TPM 2.0)
- SRAM 256KB and retain data at least 2 Years during AC off
- Rich I/O: 2 GbE, 3 USB 2.0, 1 Line out, 1 uSD, 1 RS-232/422/485 (Provide the hardware circuit design for the SAS 9-bit interface), 1 RS232 with 8 data bits
Főbb jellemzők
Tanúsítványok
Főbb jellemzőkKey features
- NXP® i.MX 8M mini applications processors
- Reliable Data Security (RSA key、SHA256、TPM 2.0)
- SRAM 256KB and retain data at least 2 Years during AC off
- Rich I/O: 2 GbE, 3 USB 2.0, 1 Line out, 1 uSD, 1 RS-232/422/485 (Provide the hardware circuit design for the SAS 9-bit interface), 1 RS232 with 8 data bits
System
- Processor
- NXP i.MX 8M mini applications processors NXP i.MX 8M mini Quad Cortex-A53 1.8GHz (Commercial)
- Memory
- 1GB Memory Down (up to 4GB) Single Channel LPDDR4
Graphics
- Controller
- 2D-GC320 3D-GC NanoULTRA
- Feature
- OpenGL® ES 2.1 VPU Decode: 1080p60 HEVC, H.264, VP9, VP8 VPU Encode: 1080p60 H.264, VP8
- Display
- 1 x LVDS (HDMI by request) Resolution supports up to 1920 x 1080 @60Hz
Storage
- Interface
- Support eMMC 5.1 16GB on board
Expansion
- Interface
- 1 x Mini-PCIe Support Full/Half Size Wifi + BT / LTE
Audio
- Audio Codec
- Cirrus Logic WM8524
Ethernet
- Controller
- 1 x LAN7500(10/100/1000Mbps) 1 x AR8031(10/100/1000Mbps)
LED
- Indicators
- 1 x Status LED
I/O

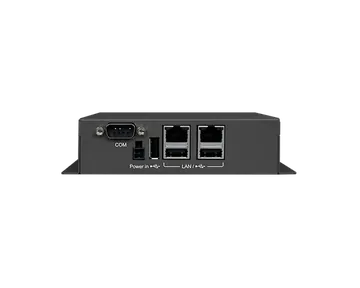

- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (Provide the hardware circuit design for the SAS 9-bit interface) 1 x RS232 with 8 data bits
- USB
- 2 x USB 2.0 1 x USB 2.0 (Right Angle)

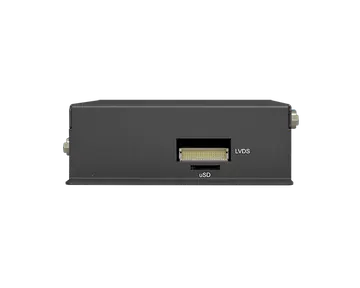

- Display
- 1 x LVDS (HDMI by request)

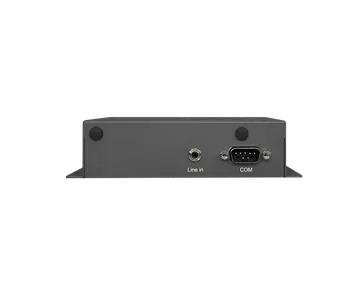

- Audio
- 1 x Audio jack (Line-Out)
- Cooling
- Fanless
Security
- TPM
- TPM 2.0
Gaming
- SRAM
- 256KB Coin Battery backup to Retain Data for 2 years during AC off
Power
- Type
- 12~24V DC IN
- Connector
- 4-pin Micro-Fit header
OS Support
- Linux
- Linux Yocto 2.5 (Kernel 4.14.98)
Environment
- Operating Temperature
- -5~60°C
- Storage Temperature
- -20~85°C
- Relative Humidity
- 5%~90%
Mechanism
- Mounting
- Wall Mount
- Dimensions (W x H x D)
- 143mm x 100 mm x 35 mm
- Weight
- 0.45 kg
Standards and Certifications
- Shock
- · Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times) · Non-Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
- Vibration
- · Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test Random,1Grms @ 5~500 Hz, 30min. · Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test Sweep sine, 2Grms @ 10~500Hz, 30min.
- Certifications
- CE, FCC class A (ongoing), RoHS, UKCA
Country of Origin
- Country of Origin
- Taiwan
