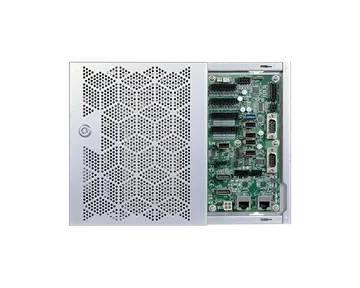

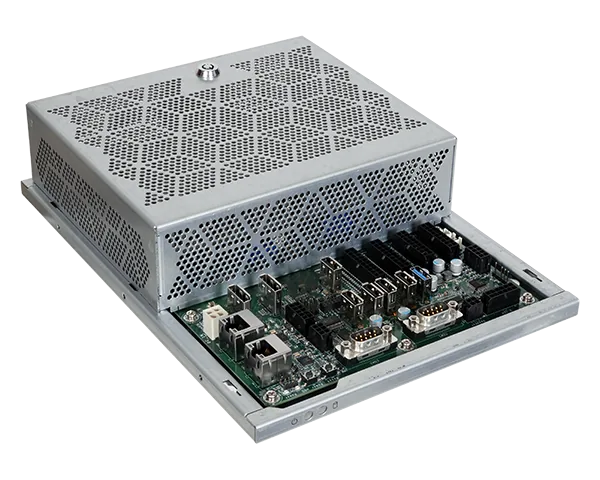

GM330-BFF
Gaming Embedded System, AMD® Embedded G-Series, DDR4, 1 M.2, 2 DP++
- AMD® Embedded G-Series Processor
- Comprehensive gaming features
- 2 DP++, 5 COM, 7 USB, 2 LAN and M.2 support
- 12V DC single input
- Stereo audio amp output
- 10-Year CPU Life Cycle Support Until Q4' 27 (Based on AMD Roadmap)
Főbb jellemzők
Tanúsítványok
#AMD
#4K2K Display
#1G Ethernet
#Windows
#Linux
#DP
#DDR4
#RoHS Certification
#Gaming
Főbb jellemzőkKey features
- AMD® Embedded G-Series Processor
- Comprehensive gaming features
- 2 DP++, 5 COM, 7 USB, 2 LAN and M.2 support
- 12V DC single input
- Stereo audio amp output
- 10-Year CPU Life Cycle Support Until Q4' 27 (Based on AMD Roadmap)
System
- Processor
- AMD® Embedded GX-217GI, Dual Core, 1MB Cache, 4 CU, 1.7GHz (2.0GHz), 12-25W AMD® Embedded GX-224IJ, Dual Core, 1MB Cache, 3 CU, 2.4GHz (2.8GHz), 10-15W AMD® Embedded GX-220IJ, Dual Core, 1MB Cache, 2 CU, 2.0GHz (2.2GHz), 10-15W
- Memory
- AMD® Embedded GX-217GI： Two 260-pin SODIMM up to 32GB Dual Channel DDR4 3200MHz AMD® Embedded GX-224IJ / GX-220IJ： One 260-pin SODIMM up to 16GB Single Channel DDR4 3200MHz
- BIOS
- AMI BIOS
Graphics
- Controller
- AMD® Radeon™ Graphics
- Feature
- OpenGL 4.2, DirectX 12, OpenCL 1.2
- Dual Displays
- 2 x DP++ DP++: resolution up to 3840x2160 @ 60Hz
Storage
- Internal
- 2 x SATADOM with 7-pin VCC Support
Expansion
- Interface
- 1 x M.2 M Key (2280, PCIe x4) Note: No SATA support
Audio
- Audio Codec
- 5.1 Channel Audio Output S/PDIF Digital Output Stereo 10W+10W Class D Audio AMP Output
Ethernet
- Controller
- 2 x Realtek Ethernet LAN Controller (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED
I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232 1 x RS-232/422/485 1 x RS-232 (Tx, Rx)/ccTalk 2 x RS-232 (Tx, Rx)/SAS/BACTA
- USB
- 2 x USB 3.0 5 x USB 2.0
- Display
- 2 x DP++
- Buttons
- 1 x Power Button 1 x Reset Button
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 1.2/2.0
Gaming
- Intrusion Detection
- 8 x Intrusion Detections Operates With and Without AC Power Logs Date/Time of Last 64 Events 5 Years Data Retention during AC off
- NVRAM
- Supports up to 16Mbyte Coin Battery Backup to Retain Data for 5 Years during AC off Supports Battery Voltage Monitoring & Warning
- DI/DO
- 32-bit Digital Input 32-bit OC output (29-bit x 500mA, support 8 meter with disconnect detection; 3-bit x 3A)
Power
- Type
- 12V
- Connector
- 2 x 2 mini-fit Vertical Connector
OS Support
- OS Support
- Windows 7/10 (64-bit) Linux
Environment
- Operating Temperature
- 0 to 45°C
- Storage Temperature
- -20 to 85°C
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Mounting
- Wall Mount
- Dimensions (W x H x D)
- 270mm x 63mm x 200mm
- Weight
- 3.235kg
Standards and Certifications
- Shock
- Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times) Non-Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
- Vibration
- Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test Random, 1Grms @ 5~500 Hz, 30min. Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test Sweep sine, 3Grms @ 10~500Hz, 30min.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| GM330-BFF-217GI | 750-GM3300-300G | AMD Embedded GX-217GI, 2 DP++, 5 COM, 7 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN |
| GM330-BFF-224IJ | 750-GM3300-400G | AMD Embedded GX-224IJ, 2 DP++, 5 COM, 7 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN |
| GM330-BFF-220IJ | 750-GM3300-500G | AMD Embedded GX-220IJ, 2 DP++, 5 COM, 7 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN |
| Item Name | Part Number | Description |
|---|---|---|
| Power Adapter and Cable | 671-110006-100G A81-004110-009G | 100W adapter; Input:100~240V; Output:12V/8.33A Power Cable, DC 5.5*2.5 to 2*2P/4.2mm, L=200mm |
| SATADOM | 638-706410-100G 638-703212-110G | 64GB, MLC, Pin7 VCC, INNODISK DESML-64GM41BCADCB-S70 32GB, MLC, Pin7 VCC, INNODISK DESML-32GM41BCADCB-S70 |
| M.2 | 638-706411-100G 638-703213-100G | 64GB M.2 P80 3ME2, INNODISK DEM28-64GM61BCAQC 32GB M.2 P80 3ME2, INNODISK DEM28-32GM61BCADC |
| Memory | 138-540002-101G 138-580004-100G 138-5G0163-100G | 4GB DDR4 2400Mhz SO-DIMM 1Rx8 512Mx8 8GB DDR4 2400Mhz SO-DIMM 1Rx8 1Gx8 16GB DDR4 2400Mhz SO-DIMM 2Rx8 1Gx8 |
| Windows License | 921-151350-000G | Win10 IoT Ent LTSC 2019 MultiLang OEI Entry EPKEA (ESD) |
| Gaming Testing Kit | 770-GM9001-080G | GM900 Testing Board (774-GM9001-080G) 6 x Intrusion detection; 2x4p cable (A81-009231-016G) 1 x Intrusion detection; 1x2p cable (A81-009232-016G) 16 x DI; 2x10p cable (A81-009233-016G) 16 x DI; 2x10p cable, (A81-009234-016G) 16 x DO; 2x9p cable (A81-009235-016G) 16 x DO; 2x9p cable (A81-009236-016G) USB type B to type A cable (A81-001073-016G) |
