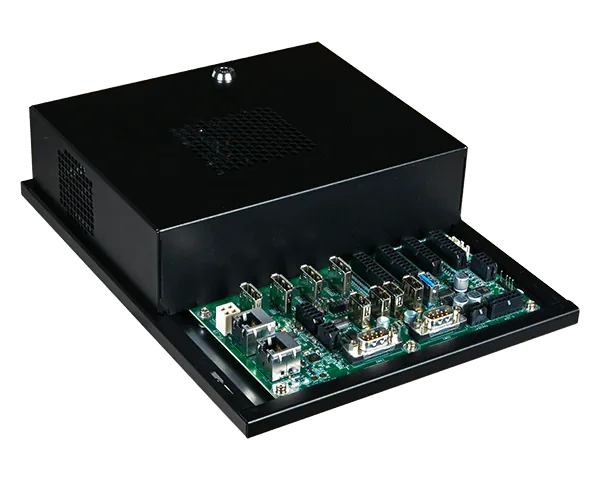

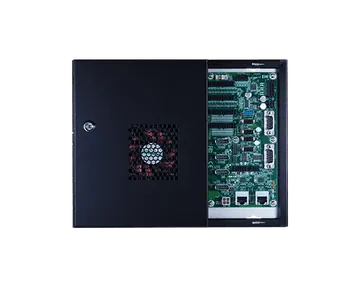

GM341-GHF

Főbb jellemzőkKey features

• AMD® Ryzen™ Embedded V1000/R1000/R2000 processors
• High performance Radeon™ VEGA series graphics
• 4 DP++ 4K monitor support (V1000)
• Comprehensive gaming features
• 5 COM, 6 USB, 2 LAN and M.2 support
• 12V DC single input
• 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)

System

Processor

AMD® Ryzen™ Embedded V1807, Quad Core, 2MB Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W AMD® Ryzen™ Embedded V1756, Quad Core, 2MB Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W AMD® Ryzen™ Embedded V1605, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W AMD® Ryzen™ Embedded V1202, Dual Core, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W AMD® Ryzen™ Embedded R1606G, 2C/4T, 3 CU, 2.6GHz (3.5GHz), 15W AMD® Ryzen™ Embedded R1505G, 2C/4T, 3 CU, 2.4GHz(3.3GHz),15W AMD® Ryzen™ Embedded R2312, 3C/4T, 2MB Cache, 3CU, 2.7GHz (3.5GHz), 12~25W AMD® Ryzen™ Embedded R2314, 6C/12T, 4MB Cache, 6 CU, 2.1GHz (3.5GHz), 12~35W AMD® Ryzen™ Embedded R2514, 6C/12T, 4MB Cache, 8 CU, 2.1GHz (3.7GHz), 12~35W AMD® Ryzen™ Embedded R2544, 4C/8T, 4MB Cache, 8 CU, 3.35GHz (3.7GHz), 35~54W

Memory

Two 260-pin SODIMM up to 32GB Dual Channel DDR4 3200MHz

BIOS

AMI BIOS (supports hash and public key validation)

Graphics

Controller

AMD® Radeon™ Vega Graphics

Feature

OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

Display

4 x DP++ DP++: resolution up to 4096x2160 @ 60Hz

Storage

External/Internal

2 x SATADOM with 7-pin VCC Support

Expansion

Interface

1 x M.2 M Key (2280, PCIe x2, only support for V1000) Note: No SATA support

Audio

Audio Codec

5.1 Channel Audio Output S/PDIF Digital Output Stereo 10W+10W Class D Audio AMP Output

Ethernet

Controller

2 x Realtek Ethernet LAN Controller (10/100/1000Mbps)

LED

Indicators

1 x Power LED 1 x HDD LED

I/O

Ethernet

2 x GbE (RJ-45)

Serial

1 x RS-232 1 x RS-232/422/485 1 x RS-232 (Tx, Rx)/ccTalk 2 x RS-232 (Tx, Rx)/SAS/BACTA

USB

2 x USB 3.0 4 x USB 2.0

Display

4 x DP++ (V1000) 3 x DP++ (R1000)

Buttons

1 x Power Button 1 x Reset Button

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Security

TPM

TPM 1.2/2.0

Gaming

Intrusion Detection

8 x Intrusion Detections Operates With and Without AC Power Logs Date/Time of Last 64 Events 5 Years Data Retention during AC off

NVRAM

Supports up to 16Mbyte Coin Battery Backup to Retain Data for 5 Years during AC off Supports Battery Voltage Monitoring & Warning

DI/DO

32-bit Digital Input 32-bit OC output (29-bit x 500mA, support 8 meter with disconnect detection; 3-bit x 3A)

iButton

Support iButton 1-wire protocol

Power

Type

12V

Connector

4-pin Vertical Connector

OS Support

OS Support

Windows 10 (64-bit) Linux

Environment

Operating Temperature

0 to 45°C

Storage Temperature

-20 to 85°C

Relative Humidity

5 to 90% RH (non-condensing)

Mechanism

Mounting

Wall Mount

Dimensions (W x H x D)

270mm x 63mm x 200mm

Weight

2.6 kg

Standards and Certifications

Shock

Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times) Non-Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

Vibration

Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test Random, 1Grms @ 5~500 Hz, 30min. Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test Sweep sine, 3Grms @ 10~500Hz, 30min.

Country of Origin

Country of Origin

Taiwan

A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.

Ordering Information

Model Name	Part Number	Description
GM341-GHF-1807	750-GM3410-000G	AMD Ryzen Embedded V1807B, 4 DP++, 5 COM, 6 USB, 8MB NVRAM, 12V DC, half cover, CPU FAN
GM341-GHF-1756	750-GM3410-100G	AMD Ryzen Embedded V1756B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
GM341-GHF-1605	750-GM3410-200G	AMD Ryzen Embedded V1605B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
GM341-GHF-1202	750-GM3410-300G	AMD Ryzen Embedded V1202B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN

Optional Items

Item Name	Part Number	Description
Power Adapter and Cable	671-115001-000G A81-004110-009G	150W adapter; Input:100~240V; Output:12V/12.5A Power Cable, DC 5.5*2.5 to 2*2P/4.2mm, L=200mm
SATADOM	638-706410-100G 638-703212-110G	64GB, MLC, Pin7 VCC 32GB, MLC, Pin7 VCC
M.2	638-706411-100G 638-703213-100G	64GB M.2 P80 3ME2 32GB M.2 P80 3ME2
Memory	138-540002-101G 138-580004-101G 138-5G0163-100G	4GB DDR4 2400 SO-DIMM 8GB DDR4 2400 SO-DIMM 16GB DDR4 2400 SO-DIMM
Win 10 License	921-151150-000G 921-151160-000G	Win10 IoT Ent LTSB 2016 MultiLang OEI Value EPKEA Win10 IoT Ent LTSB 2016 MultiLang OEI Entry EPKEA
Gaming Testing Kit	770-GM9001-080G	GM900 Testing Board (774-GM9001-080G) 6 x Intrusion detection; 2x4p cable (A81-009231-016G) 1 x Intrusion detection; 1x2p cable (A81-009232-016G) 16 x DI; 2x10p cable (A81-009233-016G) 16 x DI; 2x10p cable, (A81-009234-016G) 16 x DO; 2x9p cable (A81-009235-016G) 16 x DO; 2x9p cable (A81-009236-016G) USB type B to type A cable (A81-001073-016G)
