KS101-BT

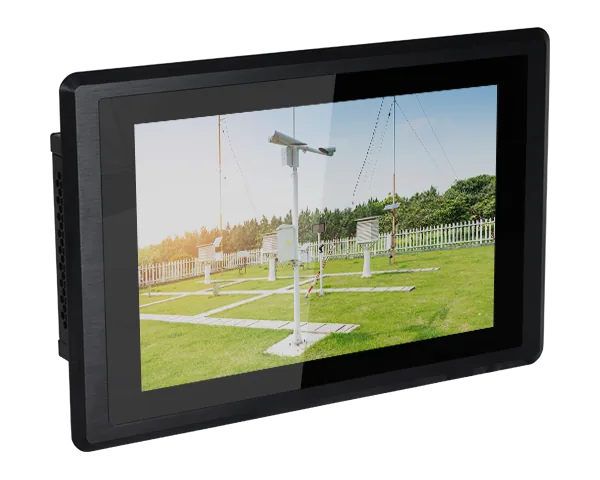

KS101-BT, Fanless Touch Panel PC with Intel Atom®/Celeron®, designed with IP65-certificated dust-proof and waterproof front panel which is ideal for harsh environments/Car Wash POS applications
- 10.1" 1280x800 Intel Atom® Touch Panel PC
- 1x 2.5" SATA drive bay
- IP65 Front Panel Protection
- VESA/Panel Mount
- Rich I/O: 2 LAN, 5 COM, 1 USB 3.0, 3 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#Windows
#Linux
#HDMI
#DDR3L
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 10.1" 1280x800 Intel Atom® Touch Panel PC
- 1x 2.5" SATA drive bay
- IP65 Front Panel Protection
- VESA/Panel Mount
- Rich I/O: 2 LAN, 5 COM, 1 USB 3.0, 3 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Atom™ Processor E3800 Series, BGA 1170 Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Celeron® Processor J1900, Quad Core, 2M Cache, 2GHz (2.42GHz), 10W
- Memory
- 4GB/2GB Memory Down Single Channel DDR3L 1333MHz
- BIOS
- AMI SPI 64Mbit
Display and Touch Screen
- Display
- 10.1” 1280x800 TFT LCD Panel with Capacitive Touch Screen
- Brightness
- 500 cd/m²
- Contrast
- 800:1
- Backlight Lifetime
- 50,000 hours
Graphics
- Controller
- Intel® HD Graphics
- Feature
- DirectX 11, OCL 1.2, OGL 4.0 H.264, MPEG2, MVC, VC-1, WMV9, VP8 (supported version dependent on OS)
- Display
- 1 x HDMI HDMI: resolution up to 1920x1080 @ 60Hz
- Single Display
- HDMI
Storage
- External/Internal
- 1 x 2.5" SATA 2.0 Drive Bay 1 x micro SD (available upon request)
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB/4G) 1 x Full-size Mini PCIe (mSATA) 1 x Half-size Mini PCIe (PCIe/USB/LPC) 1 x SIM Socket
Audio
- Audio Codec
- Realtek ALC886 5.1-channel
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

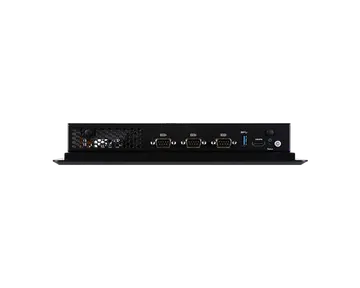

Top I/O
- Serial
- 3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO)
- USB
- 1 x USB 3.0 (type A)
- Display
- 1 x HDMI
- Wi-Fi Antenna
- 2 x Wi-Fi Module Antenna Hole
- Buttons
- 1 x Power Button 1 x Reset Button

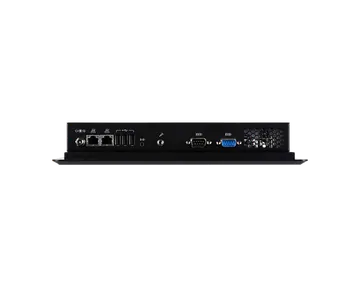

Bottom I/O
- Ethernet
- 2 x GbE (RJ-45) (10/100/1000Mbps)
- Serial
- 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9)
- USB
- 3 x USB 2.0 (type A)
- Audio
- 1 x Line-out 1 x Mic-in
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 16~24V DC
- Connector
- DC Jack
OS Support
- OS Support
- Windows 7 (32bit/64bit) Windows 8.1 Embedded (32bit/64bit) (available upon request) Windows 10 IoT Enterprise (32bit/64bit) Linux
Environment
- Operating Temperature
- 0 to 60°C
- Storage Temperature
- -30 to 80°C
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Construction
- Aluminum Front Bezel
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Panel/VESA Mount
- Dimensions (W x H x D)
- 294mm x 193mm x 48mm
- Weight
- 1.7 Kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 KS101-BT Touch Panel PC 1 Poron foam 1 Quick Installation Guide Note: Please choose "KS101-BT product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS101-BTW24-J00 | 750-KS1010-100G | 10.1" Panel PC, Intel® Celeron® J1900, 2GB Memory Down |
| KS101-BTW24-E45 | 750-KS1010-000G | 10.1" Panel PC, Intel® Atom™ E3845, 4GB Memory Down |
| Item Name | Part Number | Description |
|---|---|---|
| 500GB HDD | 785-H25500G | 2.5” SATA HDD, 500GB, RoHS |
| 320GB HDD | 785-H25320G | 2.5” SATA HDD, 320GB, RoHS |
| 1TB SSD | 785-S251TBG | 2.5" SATA SSD, 1TB MLC, RoHS |
| 512GB SSD | 785-S25512G | 2.5" SATA SSD, 512GB MLC, RoHS |
| 256GB SSD | 785-S25256G | 2.5" SATA SSD, 256GB MLC, RoHS |
| 128GB SSD | 785-S25128G | 2.5" SATA SSD, 128GB MLC, RoHS |
| 64GB SSD | 785-S25064G | 2.5" SATA SSD, 64GB MLC, RoHS |
| 32GB SSD | 785-S25032G | 2.5" SATA SSD, 32GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| 120W Power Adapter | 671-110003-100G | 120W, 19V/6.3A, Level 6, RoHS |
| Panel Mount | 761-VS1010-000G | Accessory Panel Mount Kit VIS101, RoHS |
| 128GB mSATA | 785-MS128GMF | mSATA Card, 128GB MLC, RoHS |
| 64GB mSATA | 785-MS64GMF | mSATA Card, 64GB MLC, RoHS |
| 32GB mSATA | 785-MS32GMF | mSATA Card, 32GB MLC, RoHS |
| 16GB mSATA | 785-MS16GMF | mSATA Card, 16GB MLC, RoHS |
| 8GB mSATA | 785-MS08GMF | mSATA Card, 8GB MLC, RoHS |
| 4GB mSATA | 785-MS04GMF | mSATA Card, 4GB MLC, RoHS |
